Overview, Convertible

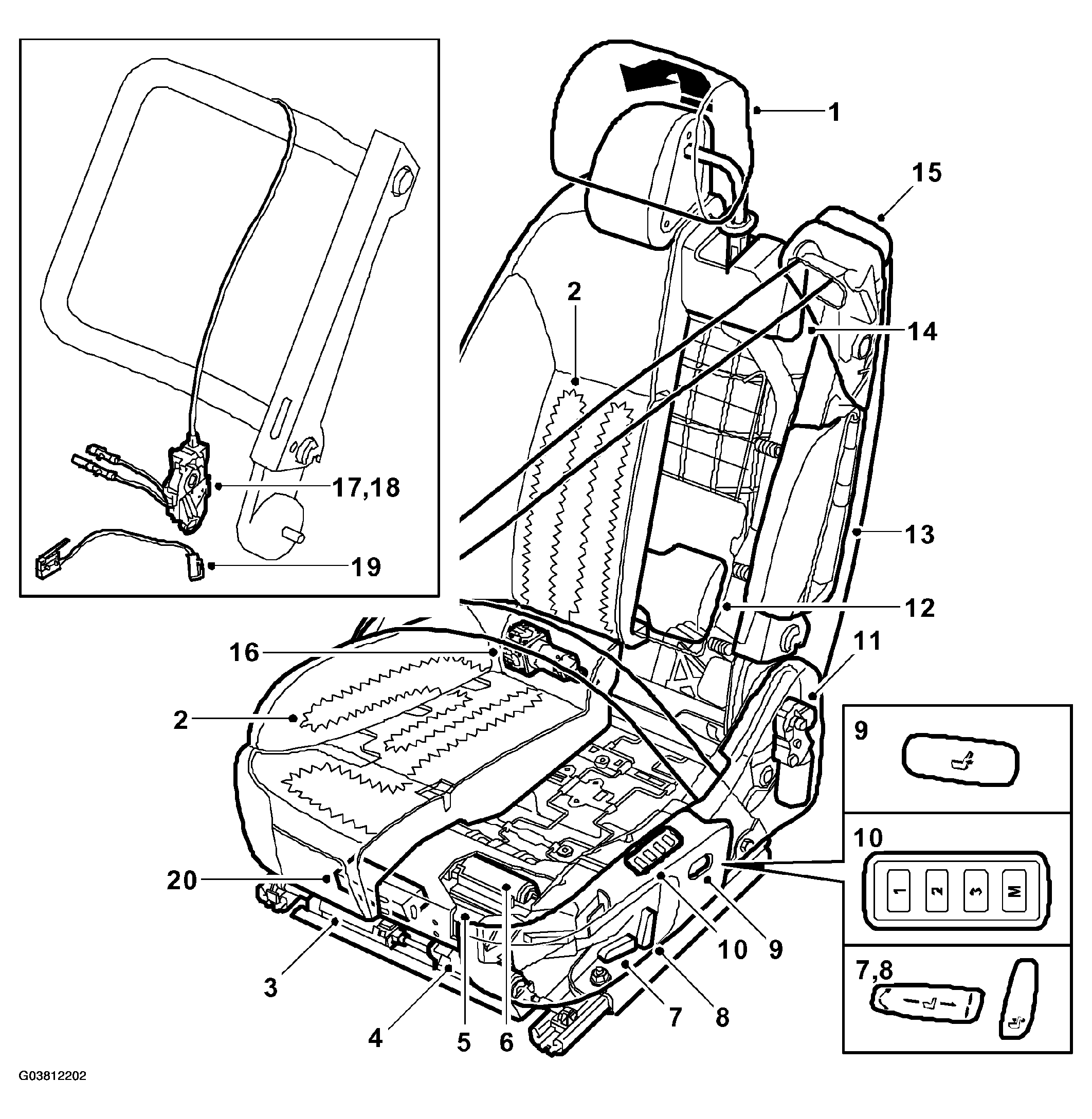

Fig 1: Identifying Convertible

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. SAHR (Saab Active Head Restraint)
2. Thermostatically controlled heating pad (254/64)
3. Length adjustment motor with integral position sensor (357Da/De)
4. Length adjustment motor with integral position sensor, easy entry (357n/e) (discontinued progressively M05.5 whereby function will be included in 357a)
5. Slope adjustment motor with integral position sensor (357Db/Df)
6. Height adjustment motor with integral position sensor (357Dc/Dg)
7. Switch for height, length and slope adjustment (357D)
8. Switch for backrest rake (357D)
9. Switch for lumber support adjustment (357o)
10. Switch for memory function (357Dj)
11. Motor with integral position sensor for adjustment of backrest rake (357Dd/Dh)
12. Pneumatic lumbar support
13. Side airbag (333Db)
14. Integral safety belt (belt tensioner (236D))
15. Handle for access
16. Air pump for lumbar support (357m)
17. Microswitch for backrest, locked in upright position (741)
18. Microswitch for backrest, access handle activated (369r)
19. Microswitch for backrest, folded down position (369f)
20. Electrically adjustable driver's seat with memory control module (357Dk)

alternatively Control module, seat (357k). Control module, seat (357k) is being replaced progressively M05.5 by relay unit (357r).
