To remove

  1. Remove the head restraint.
  2. Press the catch inside the sleeve with a small screwdriver while lifting the sleeve at the same time.

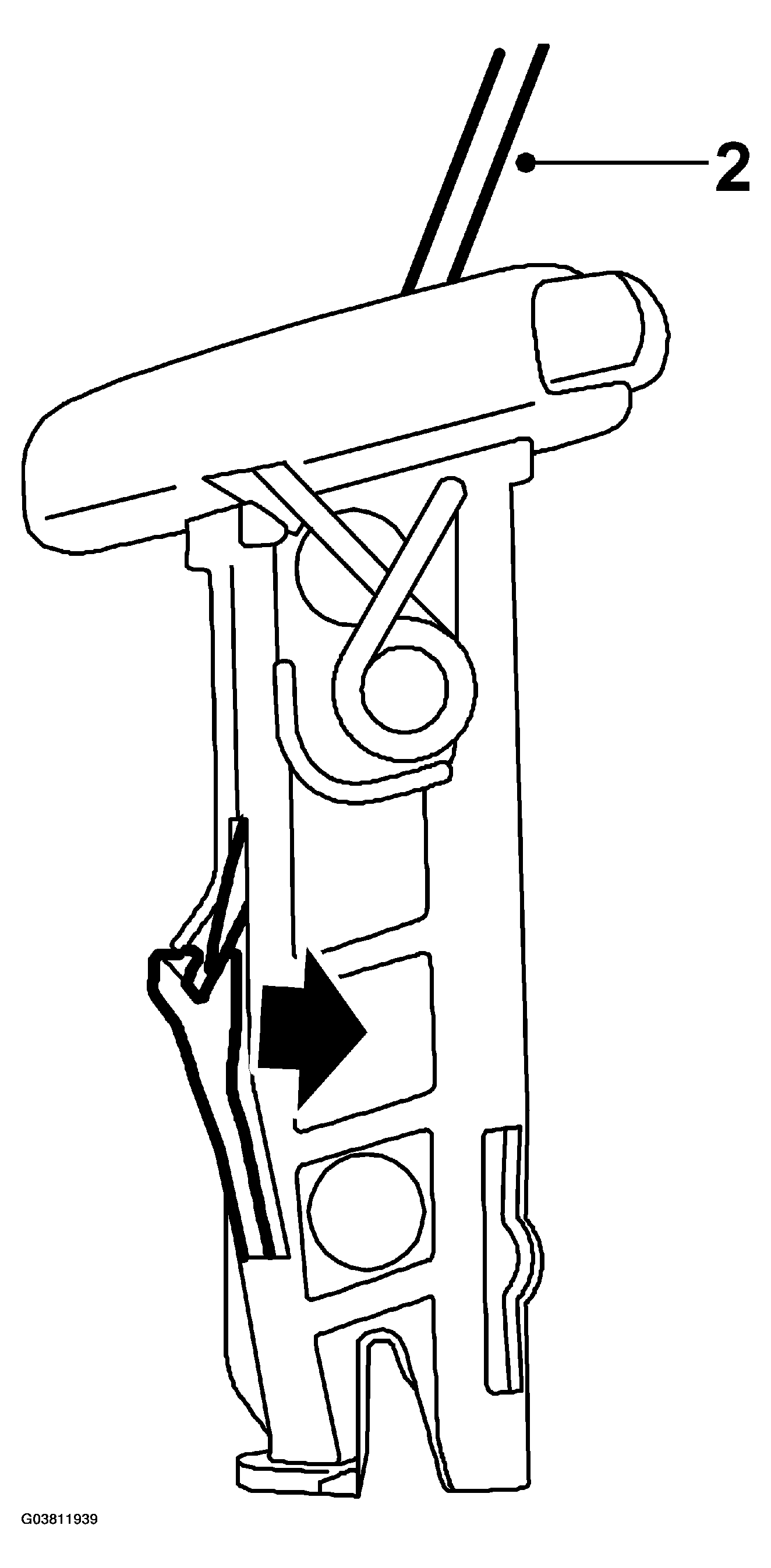

    Fig 1: Pressing Catch
    G03811939Courtesy of SAAB-SCANIA OF AMERICA, INC.
