Front seat: Removing

  1. Position the driver's seat as far forward as possible and tip the backrest forward.
  2. Remove the cover and seatbelt mounting from the seat.

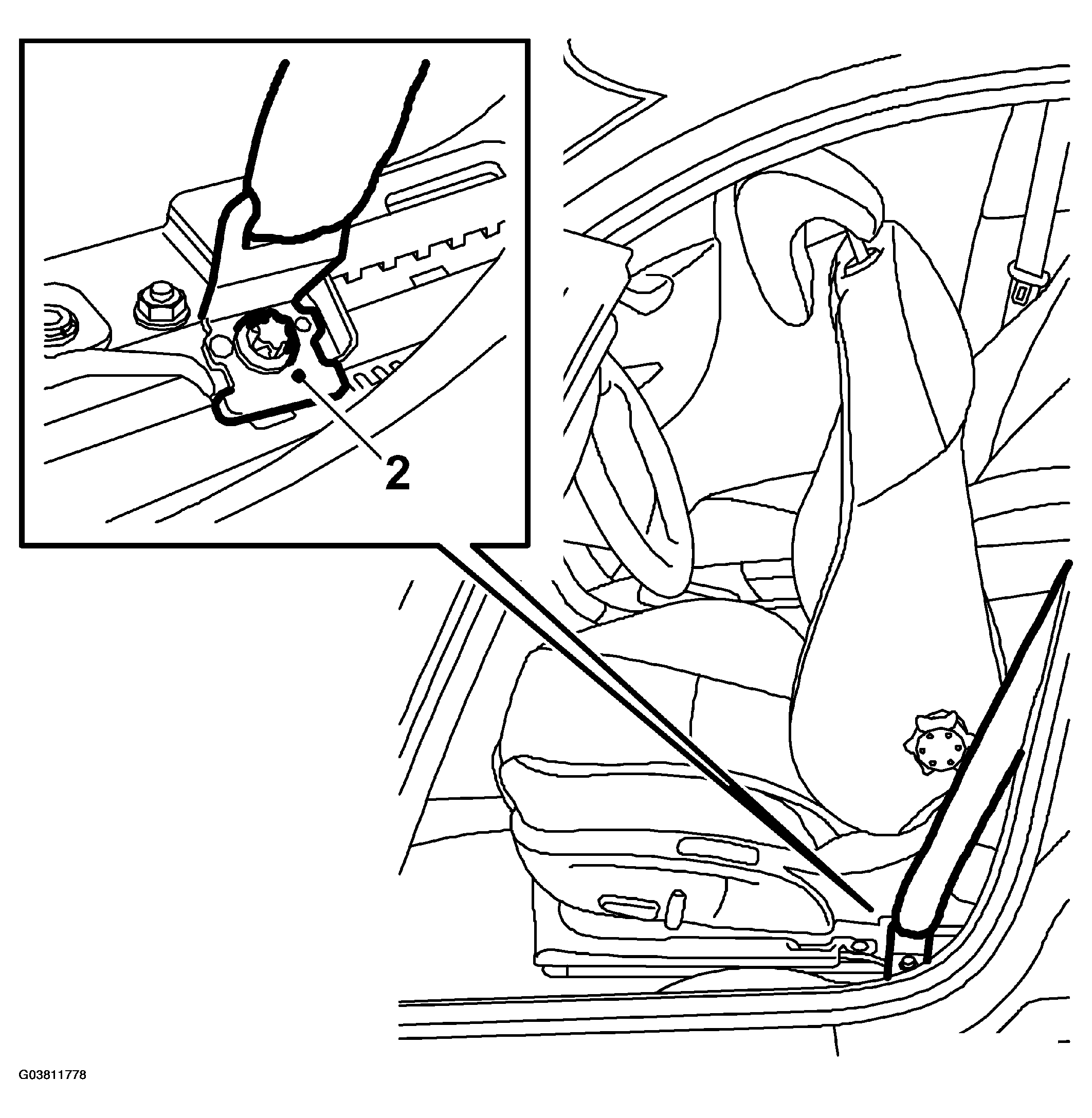

    Fig 1: Removing Cover And Seatbelt Mounting
    G03811778Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the two rear retaining bolts from the seat.

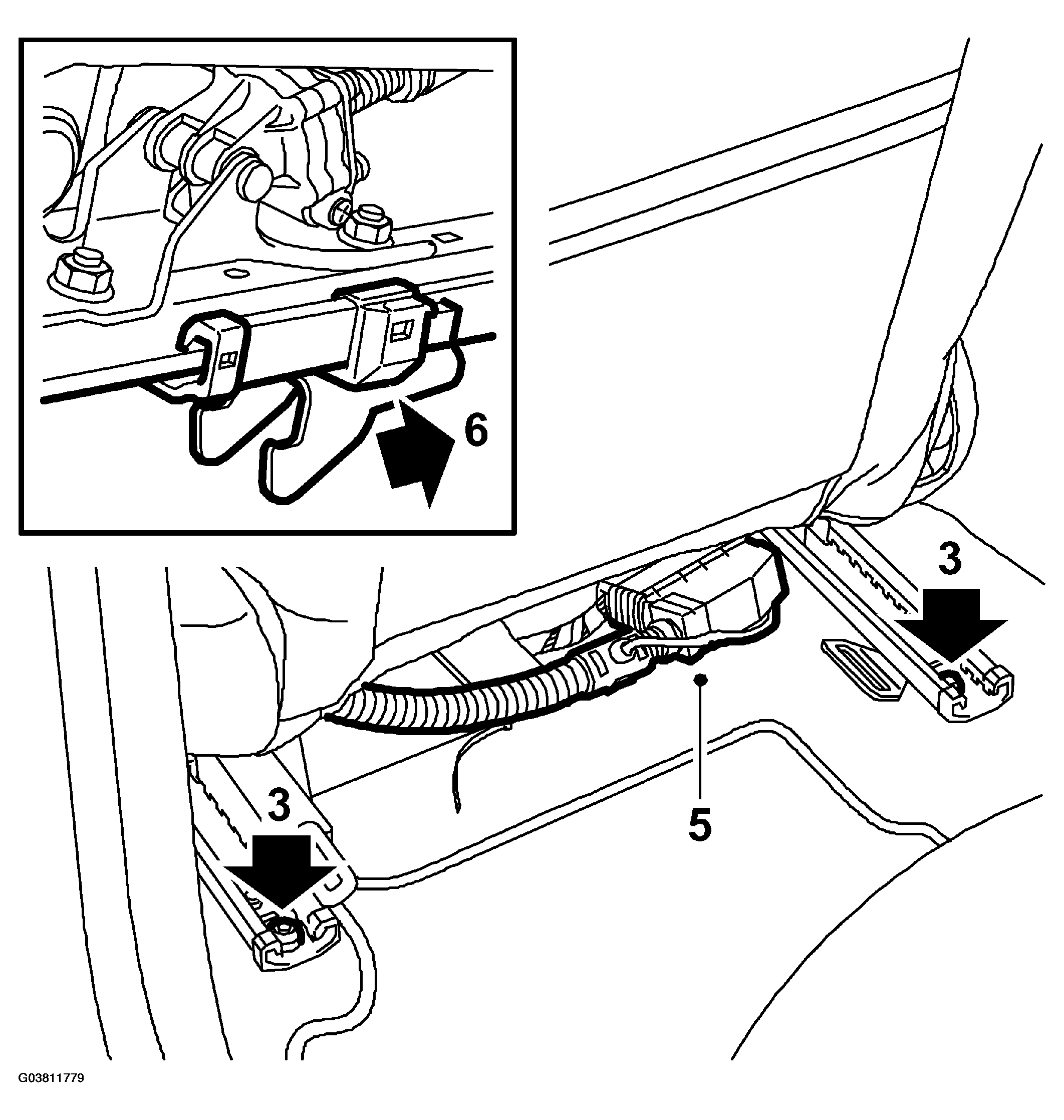

    Fig 2: Illustration For Step (3, 5, And 6)
    G03811779Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Tip the seat forward.
  5. Unplug the connector on the seat.
  6. Pull the seat back to unhook the mountings. Carefully remove the seat.
