To remove

NOTE: The seat is heavy!
  1. Retract the soft top.

    Move the seat to its rear and highest position.

    IMPORTANT: Cars with electrically operated seats  : To access the front bolt, the seat must be blocked at the rear bolt. This done by holding a screwdriver at the seat's rear bolt while moving the seat back towards the bolt for a few seconds.

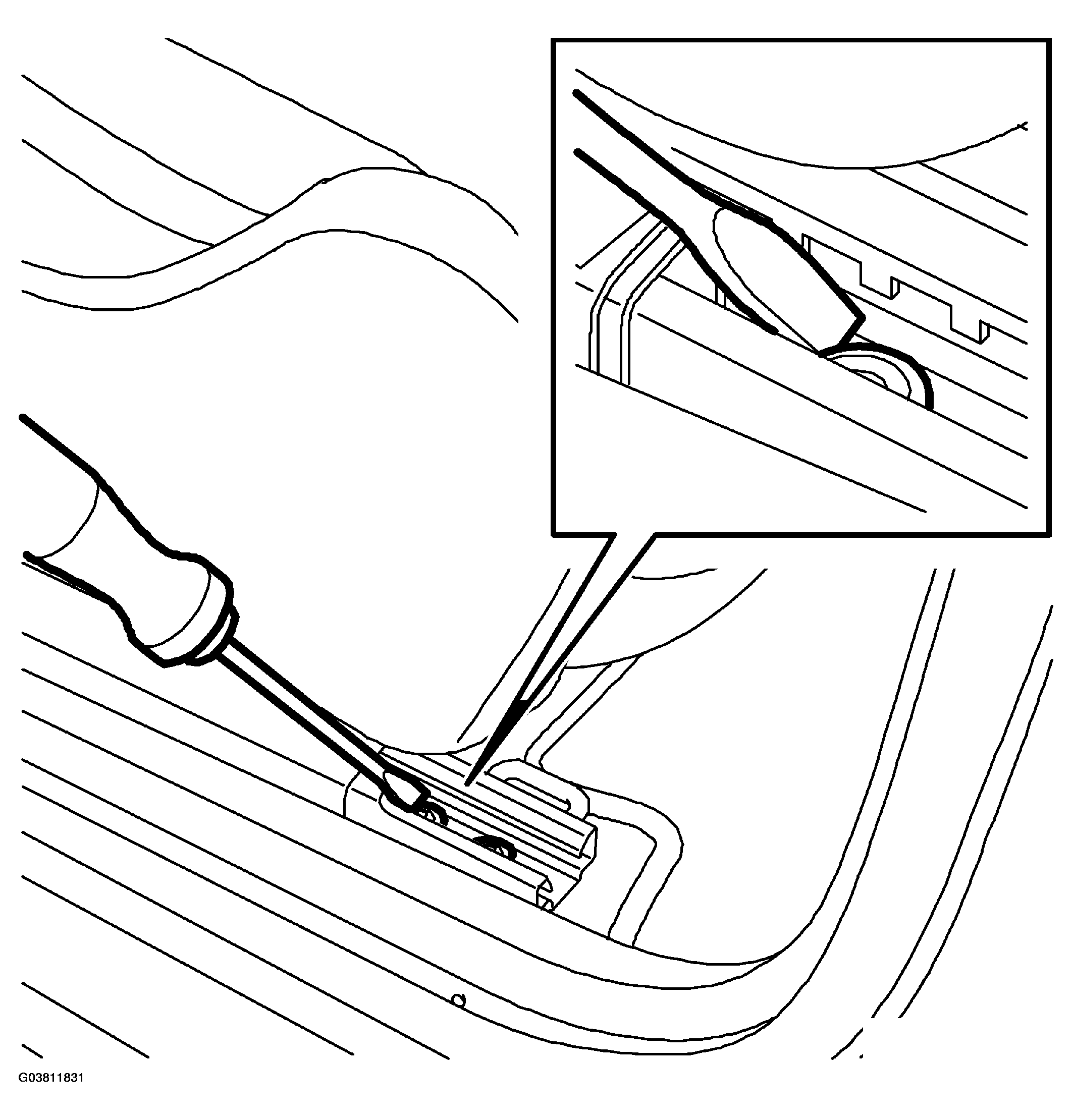

    Fig 1: Blocking Seat At Rear Bolt
    G03811831Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the front screws which secure the seat's rails.

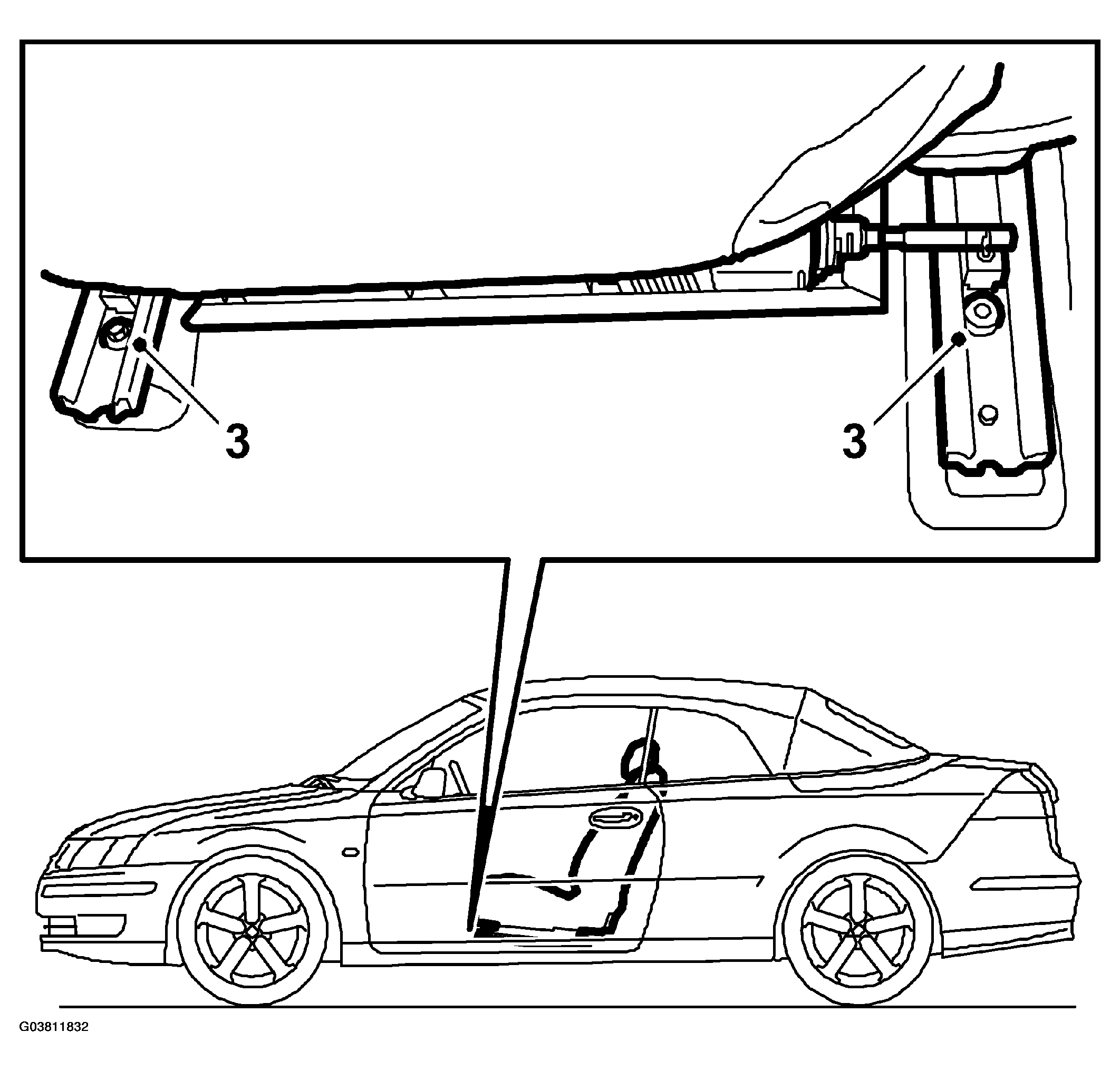

    Fig 2: Removing Front Screws
    G03811832Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Move the seat to its forward position, and remove the rear screws holding the seat rails.

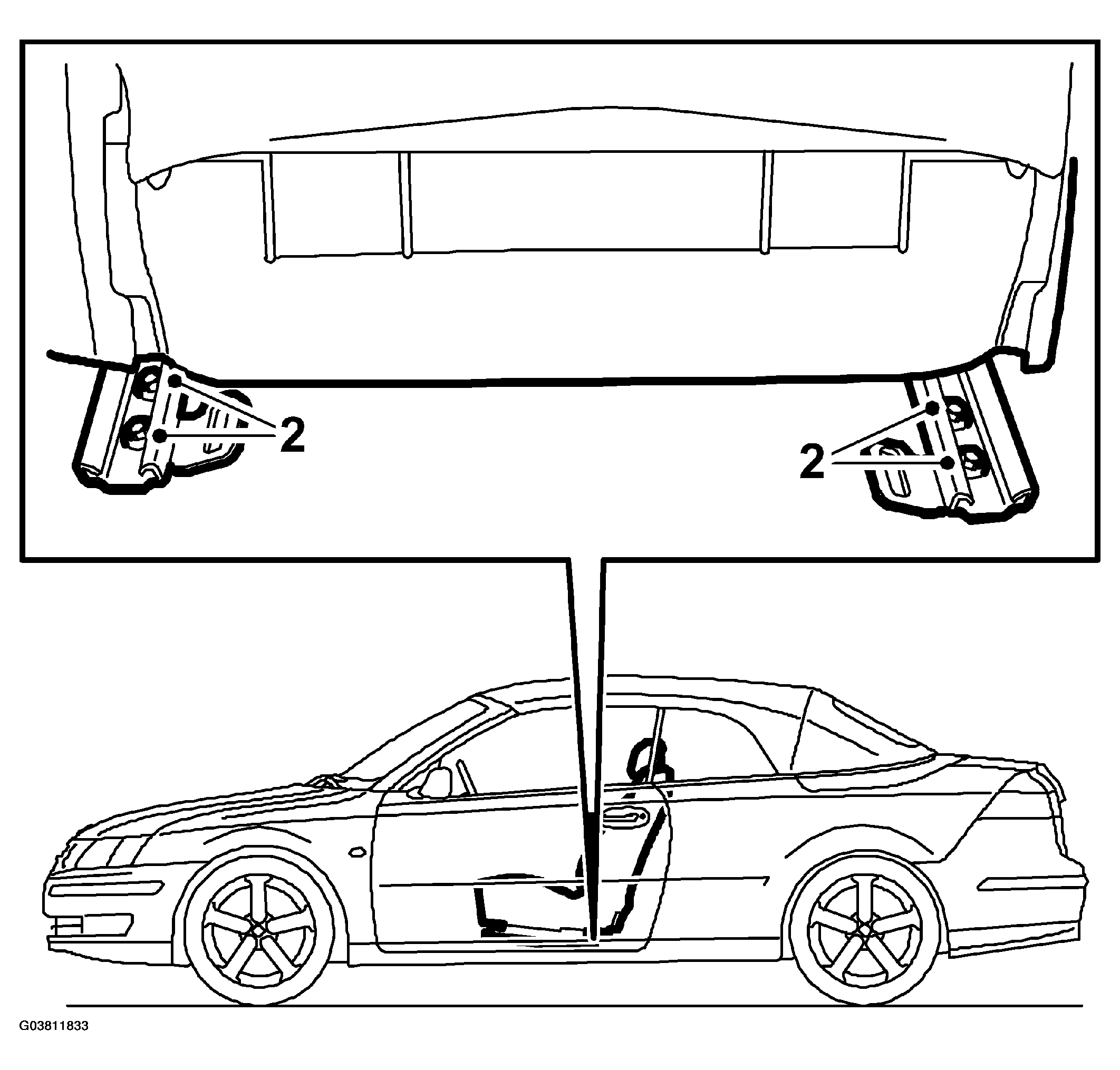

    Fig 3: Removing Rear Screws
    G03811833Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Turn the ignition key to OFF. Remove the seat connector and lift out the seat.

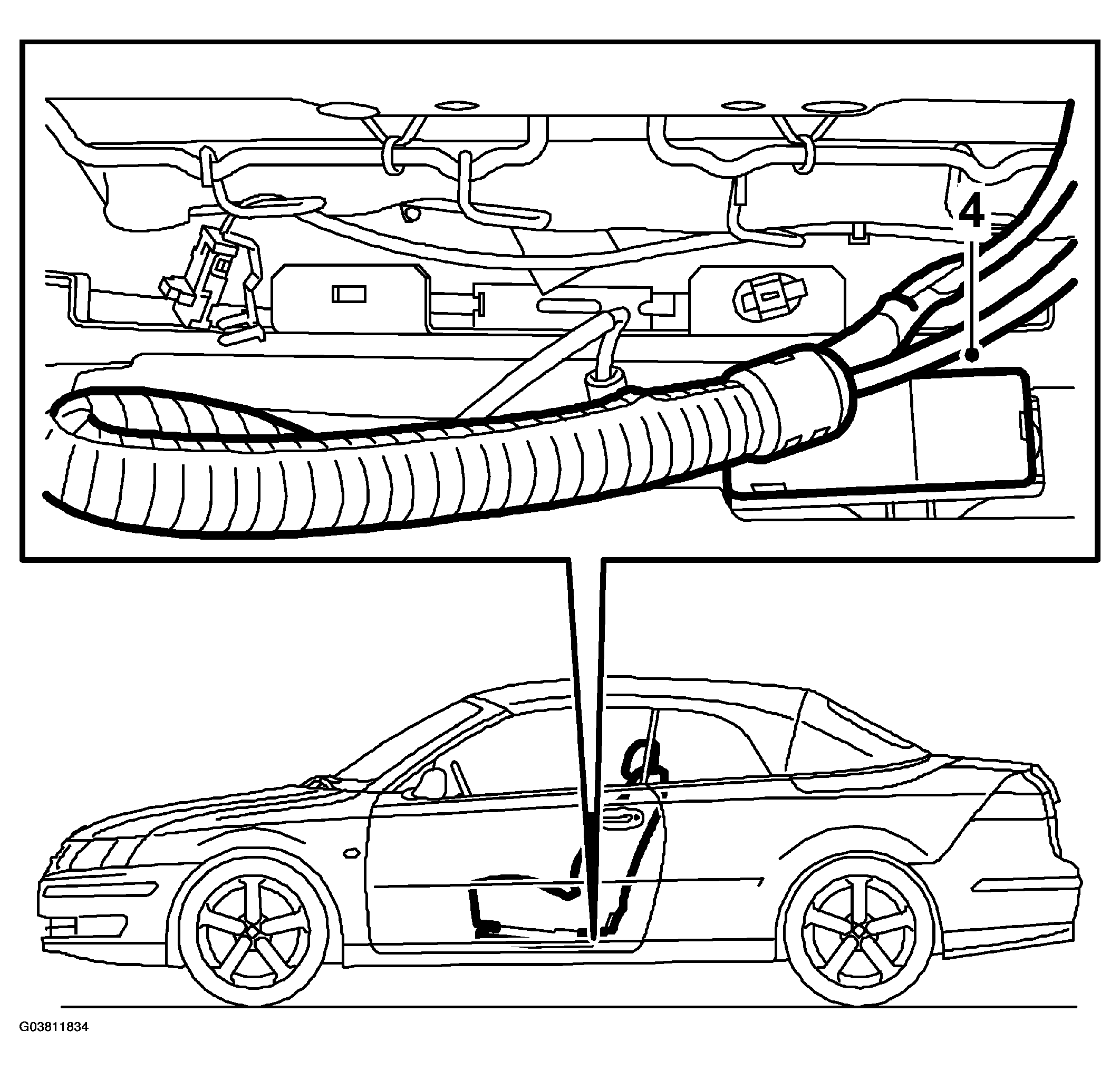

    Fig 4: Removing Seat Connector
    G03811834Courtesy of SAAB-SCANIA OF AMERICA, INC.
