Body & Frame: Seats: Adjustment/Replacement: DSM: Removing

  1. Remove the FRONT SEAT .
  2. Remove the front seat cowl.

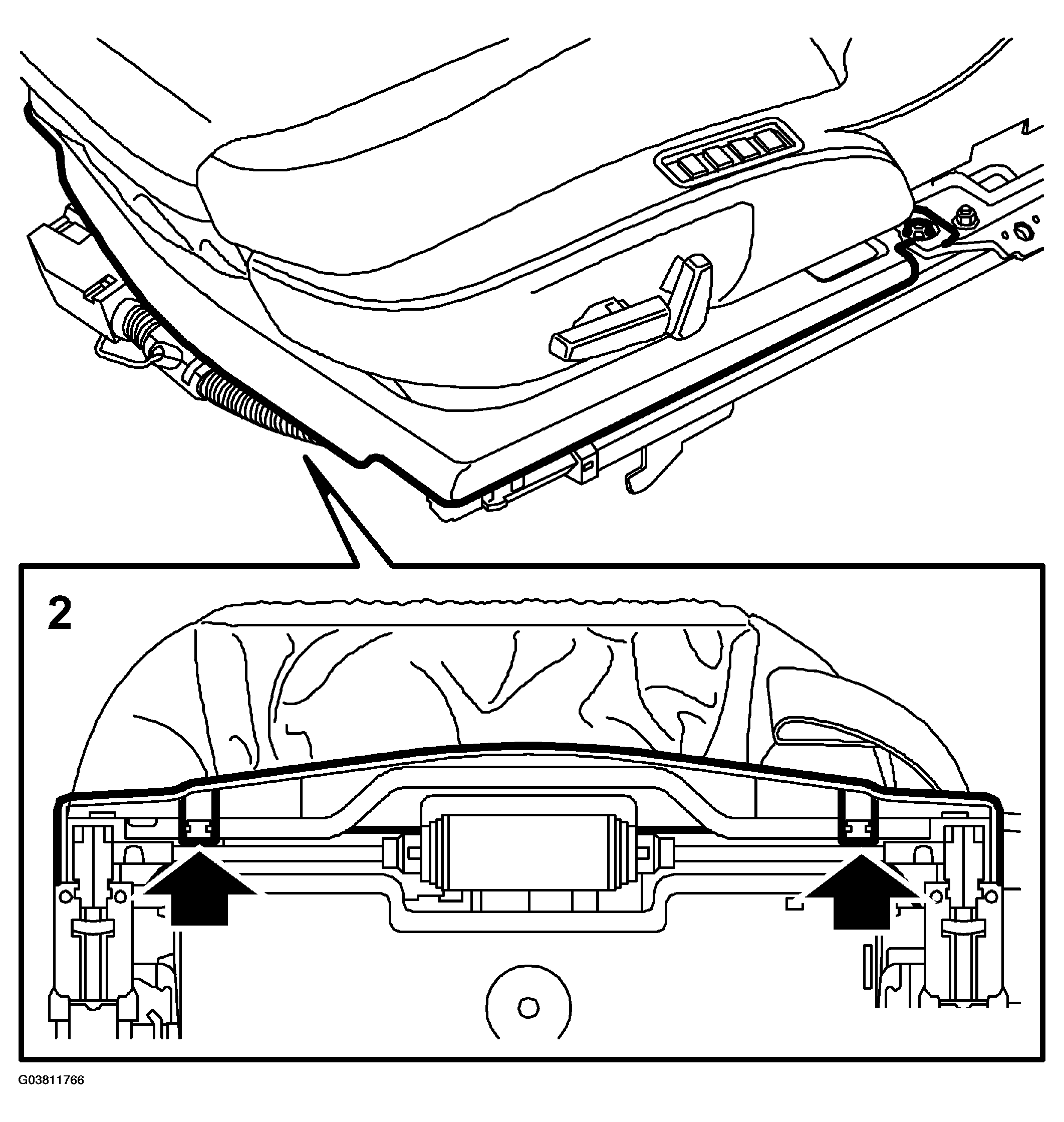

    Fig 1: Removing Front Seat Cowl
    G03811766Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the upholstery strip from the front edge of the seat base.
  4. Remove screws securing the DSM.
  5. Undo and remove the clip holding the DSM. Remove the DSM.

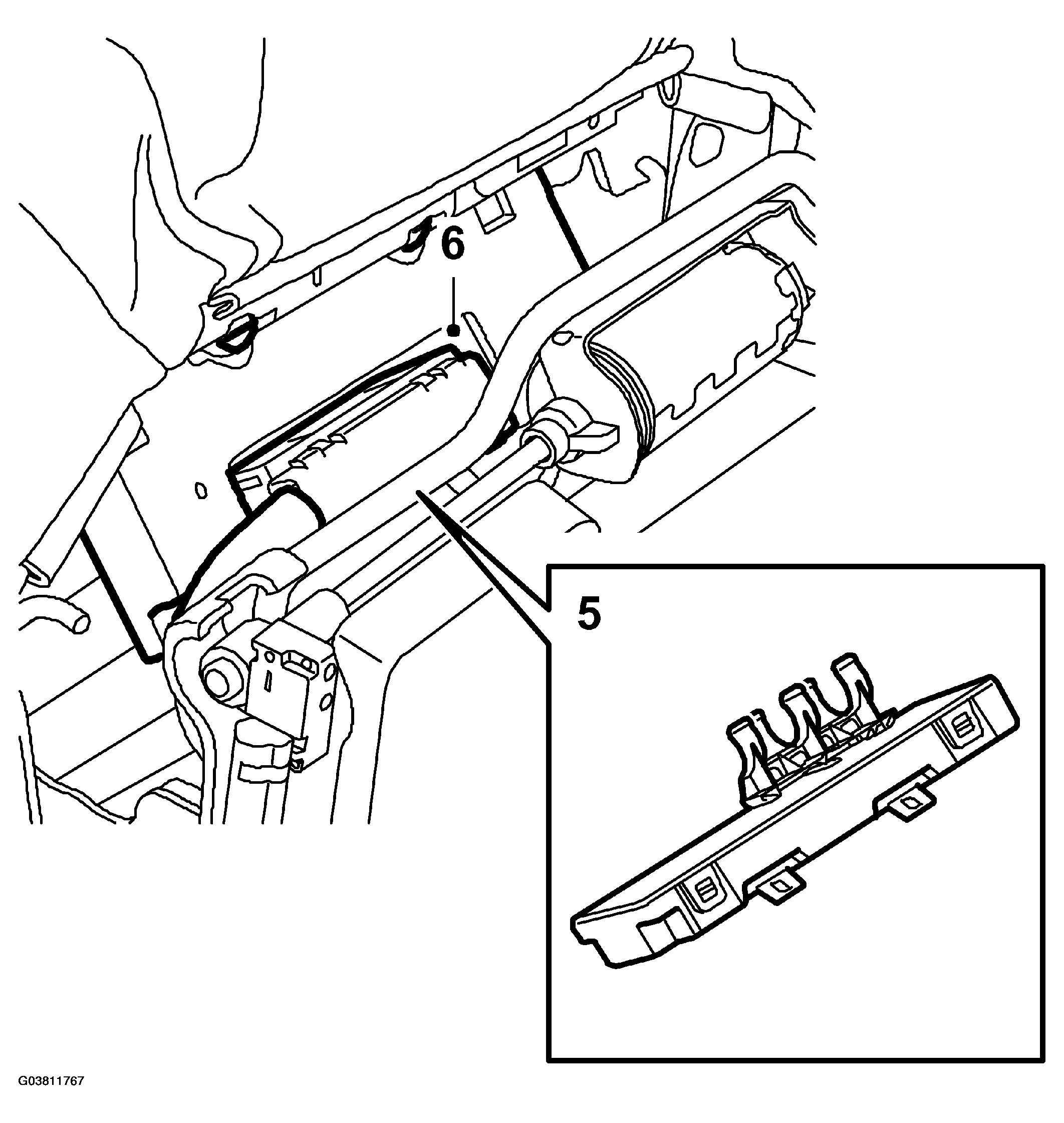

    Fig 2: Illustration For Step (5 And 6)
    G03811767Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
  6. Unplug the DSM.
