Body & Frame: Seats: Adjustment/Replacement: DSM: Fitting

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
  1. Plug in the DSM.
  2. Position the DSM.

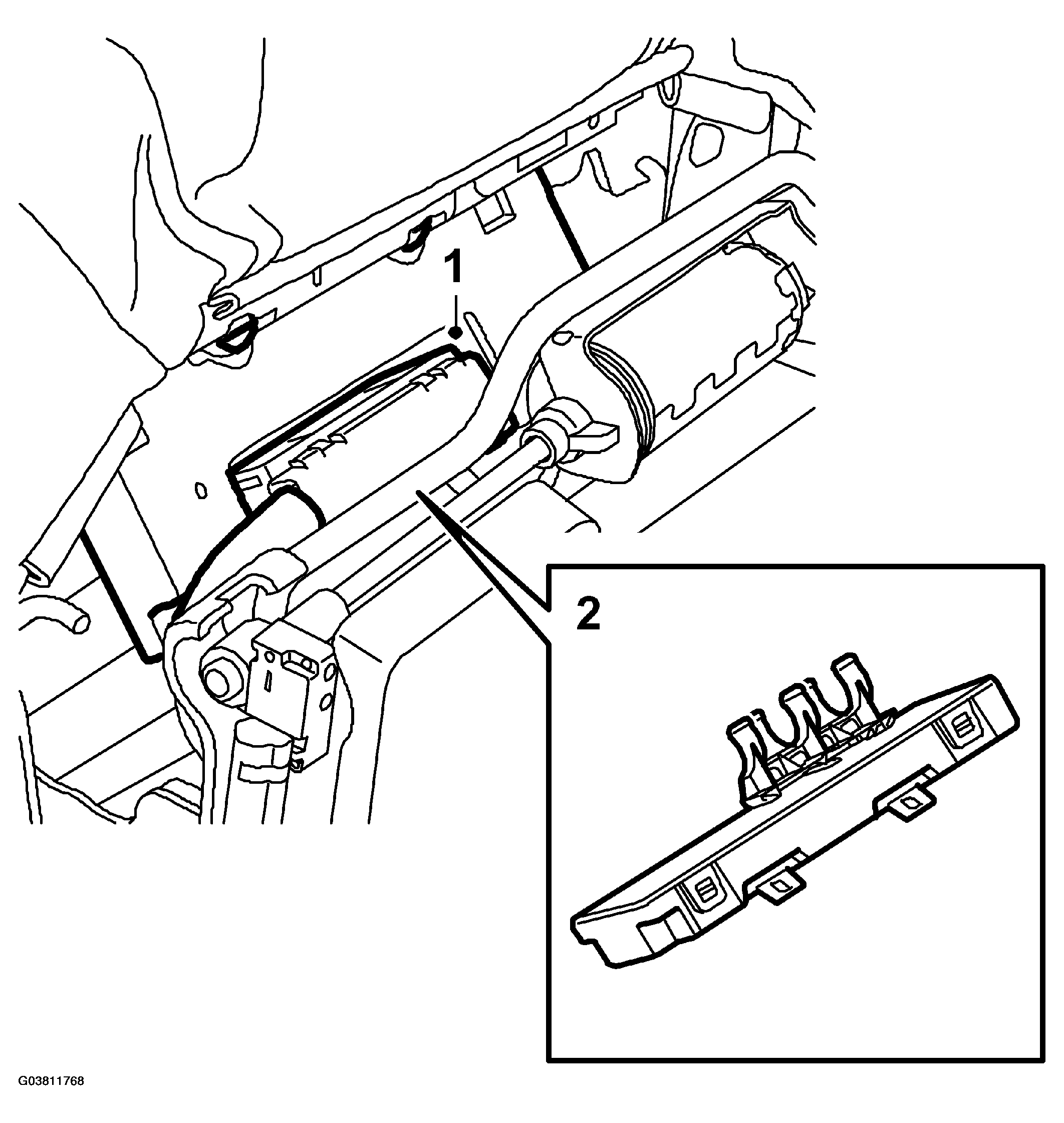

    Fig 1: Illustration For Step (1 And 2)
    G03811768Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the clip to the DSM.
  4. Secure the clip fit the DSM.
  5. Fit the upholstery strip to the front edge of the seat base.

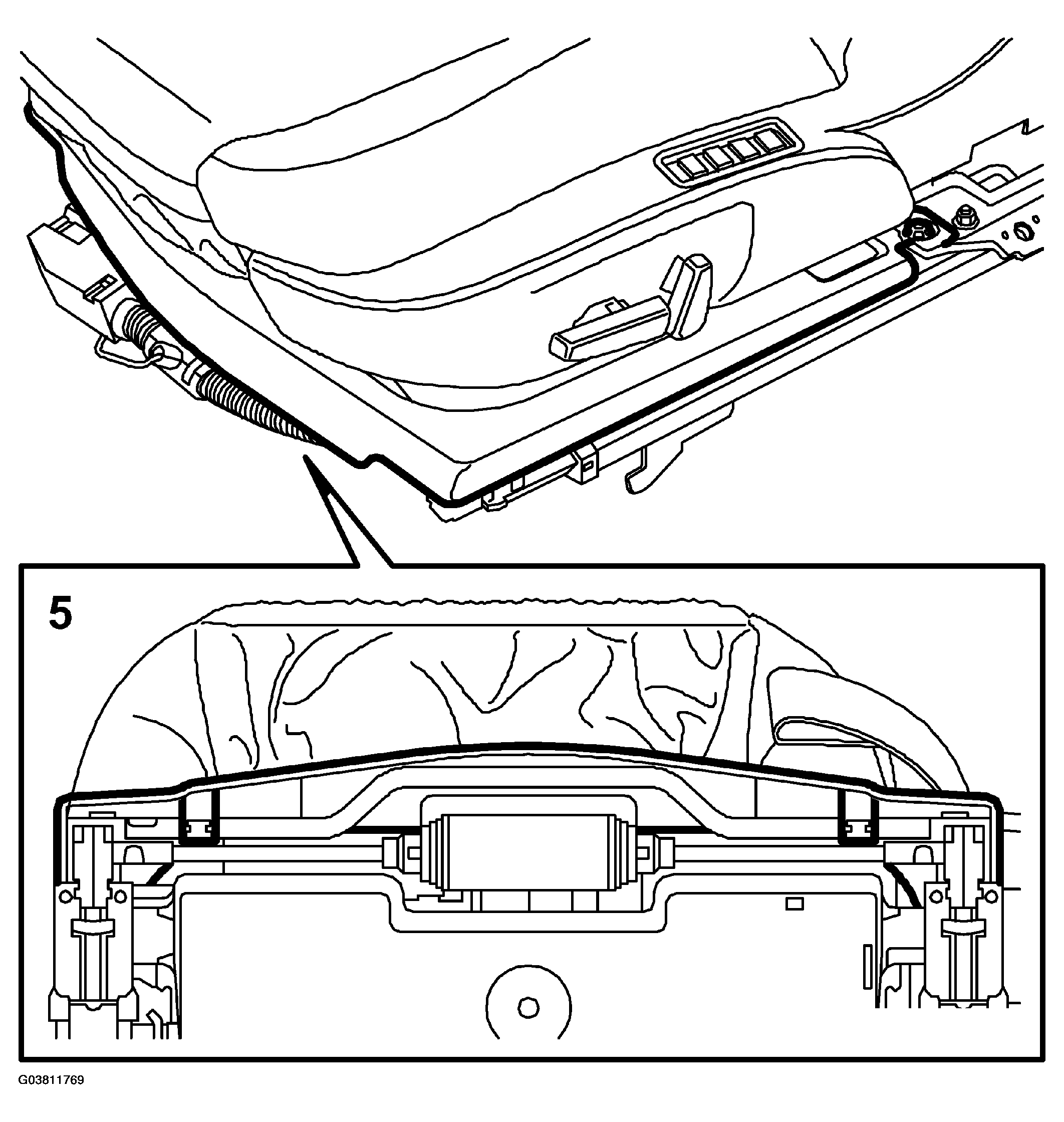

    Fig 2: Fitting Upholstery Strip
    G03811769Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Fit the front seat cowl.
  7. Fit the FRONT SEAT .

    Perform the procedure for after fitting a control module.
