To remove

  1. Raise the seat and tip the backrest forward.
  2. Remove the backrest cover.
  3. Unplug the connector from the microswitch.

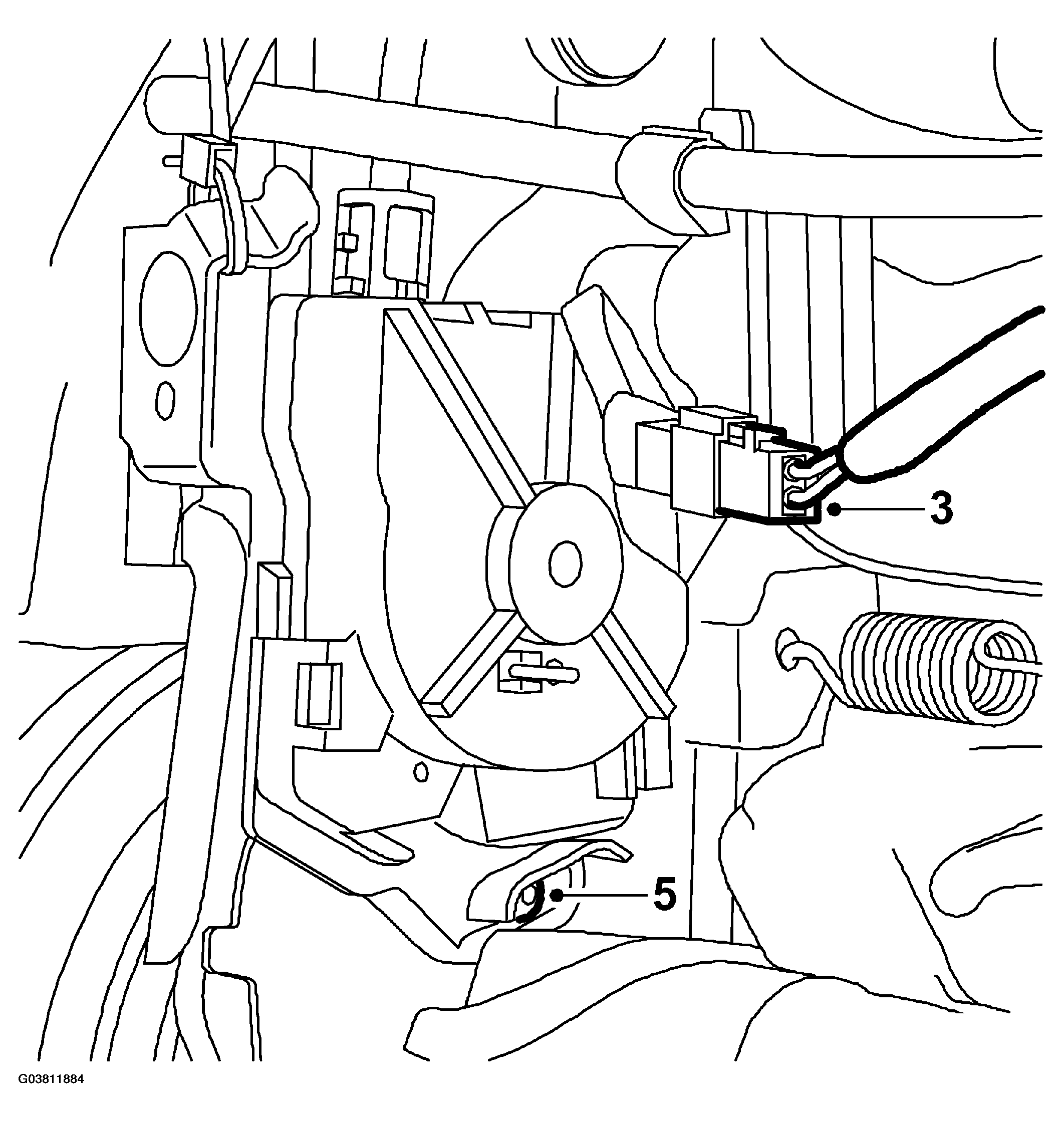

    Fig 1: Illustration For Step (3 And 5)
    G03811884Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fold up the backrest.
  5. Remove the screw and control unit from the seat frame.
  6. Remove the retaining clips from the cable.

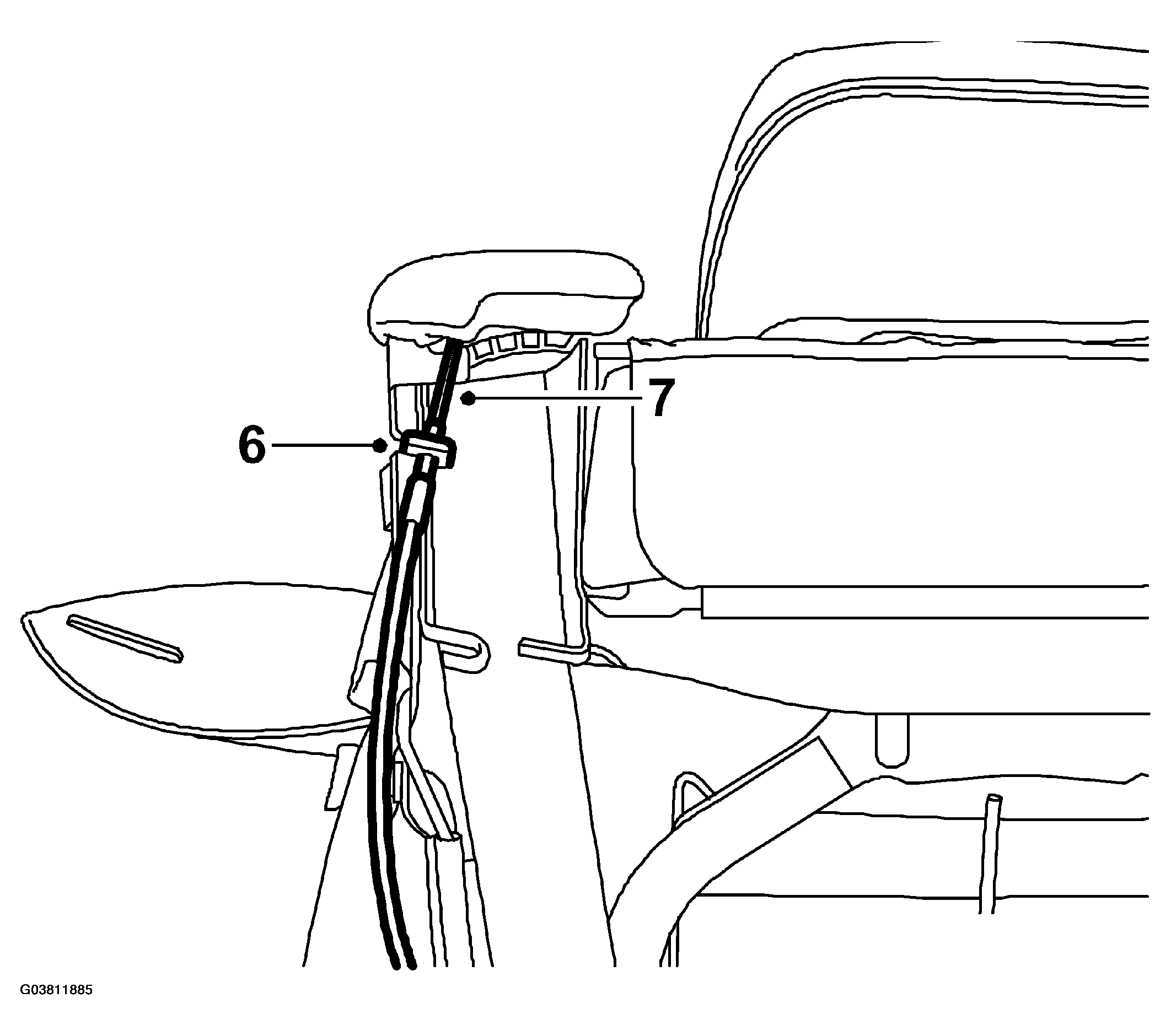

    Fig 2: Illustration For Step (6 And 7)
    G03811885Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Remove the cable from the control arm.
