Column integration module

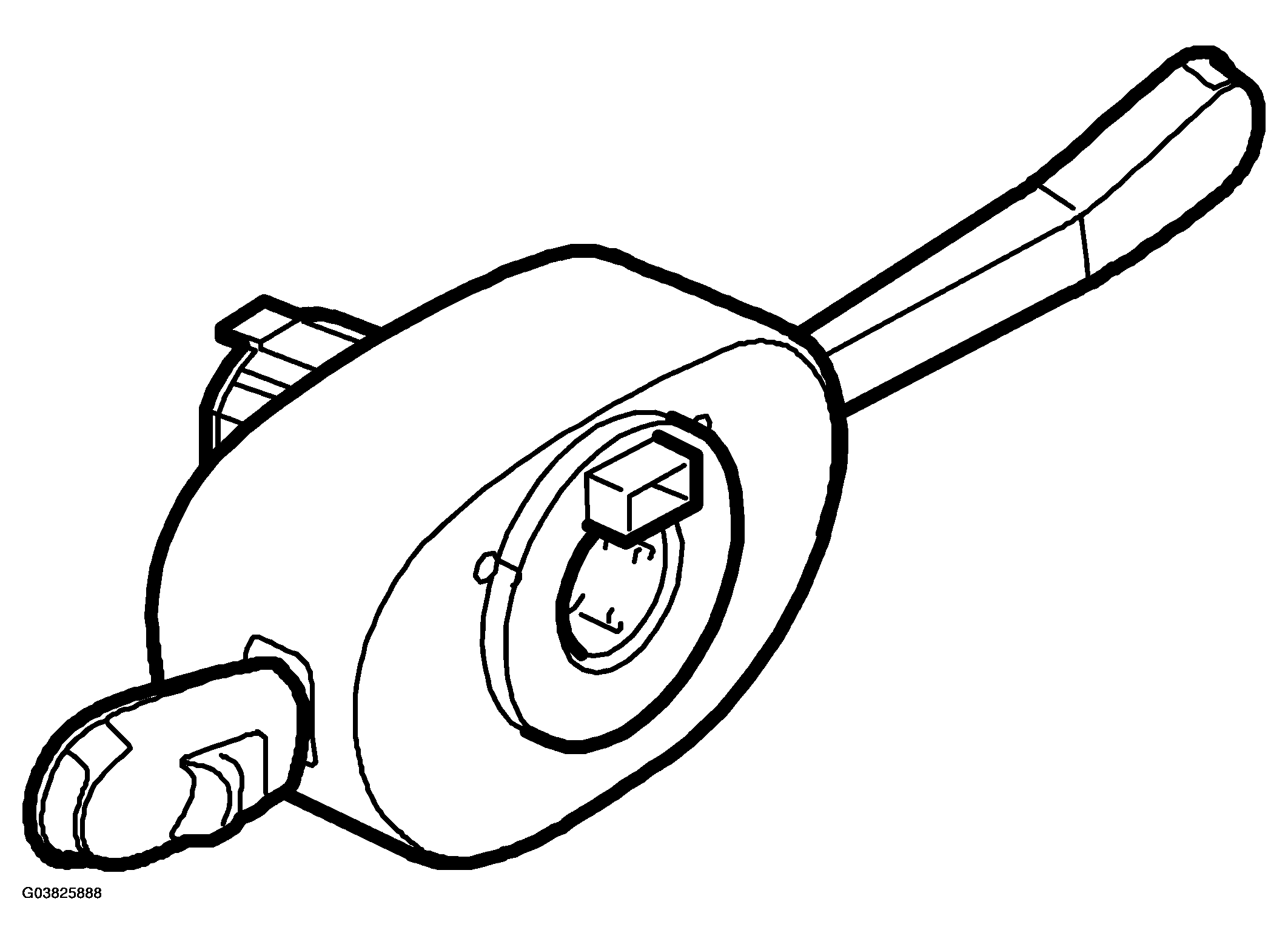

Fig 1: Identifying Column Integration Module
G03825888Courtesy of SAAB-SCANIA OF AMERICA, INC.
PIN DESCRIPTION

+30 Pin 1
I-bus Pins 4, 20
P-bus + Pin 5
P-bus - Pin 6
Power ground Pin 7
+B Pin 18
I-bus Pin 19
P-bus + Pin 21
P-bus - Pin 22
+15 Pin 23
