Steering column lock, main components

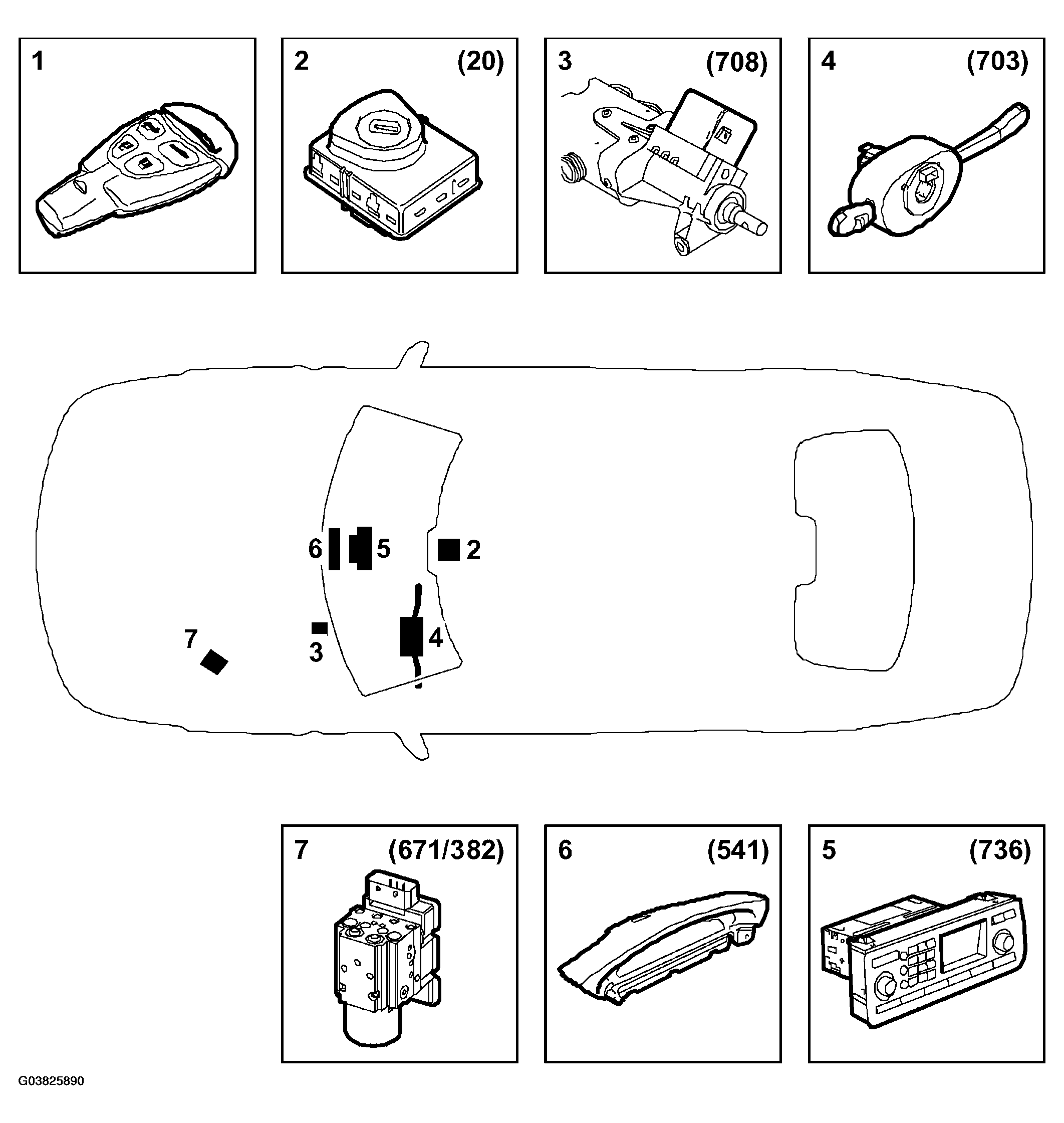

Fig 1: Identifying Steering Column Lock Main Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Key/Remote control
2. Ignition switch, ISM (20)
3. Steering column lock, SCL (708)
4. Column integration module, CIM (703)
5. Infotainment system control panel, ICM (736)
6. SID (541c)
7. TCS control module/ESP control module, rear wheel sensor (382/671)
