Detailed description: Notes

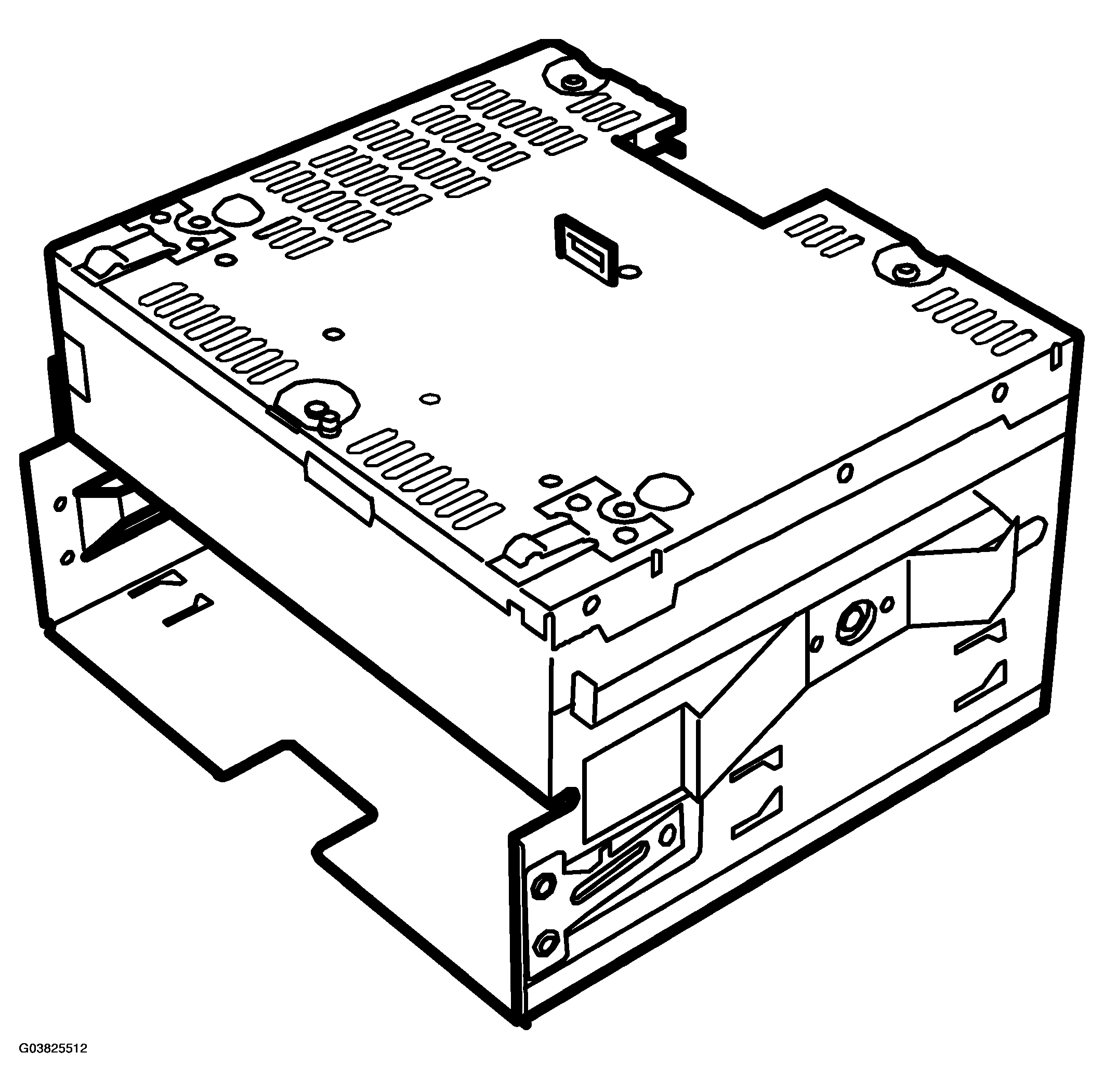

The main entertainment unit is fitted in the centre of the dashboard behind the infotainment control module. The entertainment unit receives audio and antenna signals from other units in the system. These signals are processed and relayed via the unit outputs to the loudspeakers of the Prestige 70 sound system and via the O-bus to the amplifiers of the Premium 150 and Prestige 300 sound systems.

The EHU has an FM/AM receiver with PLL dual-synthesizer tuner for precise tuning, preset to the market frequency band. The radio receiver has a memory allowing the retention of selected stations in the event the battery runs flat or is disconnected. As soon as the radio is switched on using the SID controls, a message is sent on the O-bus to wake up the other units.
