Brake light switch (29), T8: Connection

PIN DESCRIPTION

Pin No. Signal type Description
1 +30 Power supply from fuse 6.
2 Signal The pin receives B+ when the brake pedal is depressed. Connected to ECM pin 14(A).

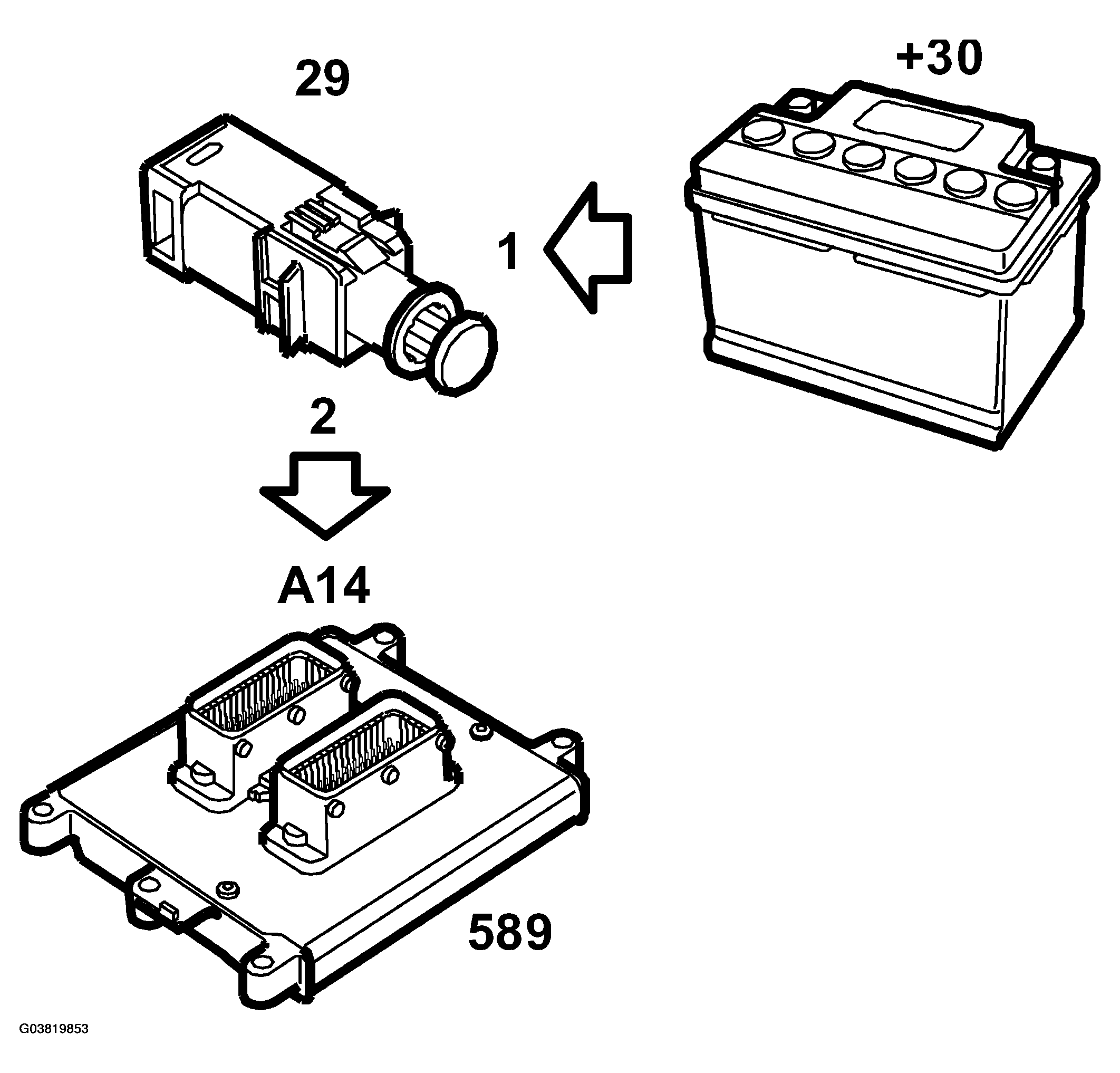

Fig 1: Identifying Connector
G03819853Courtesy of SAAB-SCANIA OF AMERICA, INC.

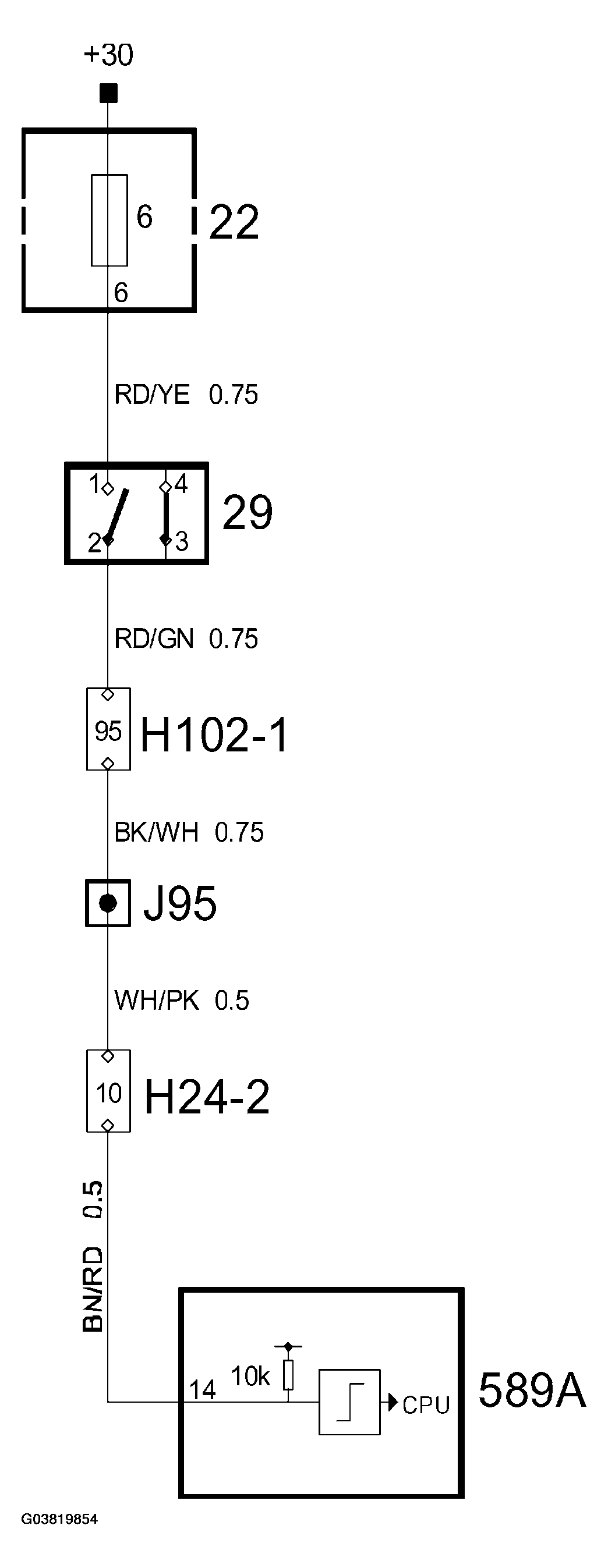

Fig 2: Identifying Wiring Diagram
G03819854Courtesy of SAAB-SCANIA OF AMERICA, INC.
