Fuel pressure regulator

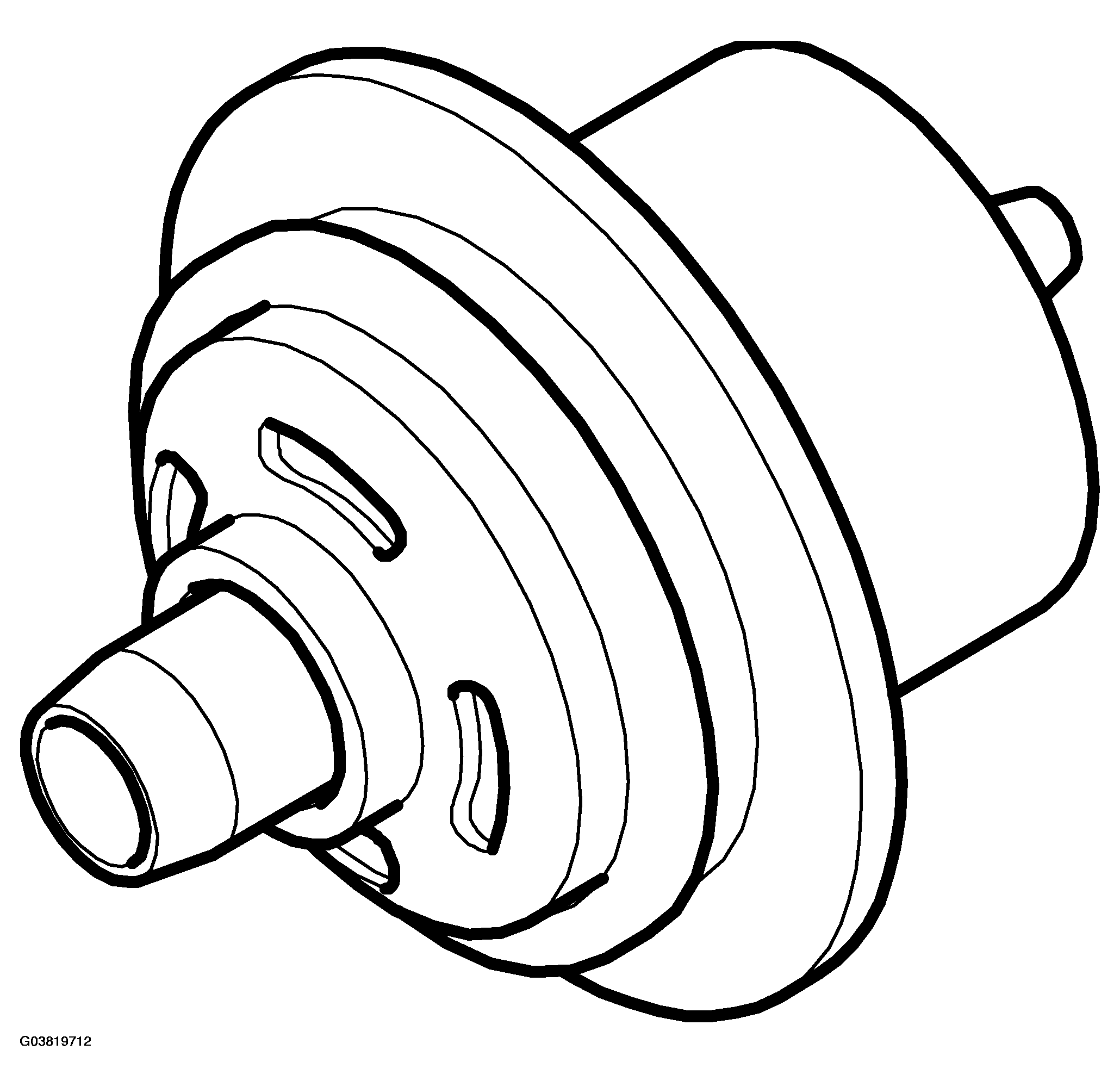

Fig 1: Identifying Fuel Pressure Regulator
G03819712Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL PRESSURE SPECIFICATION

Fuel pressure 3,0+/-0,1 bar
Pressure, air side Connected to intake manifold
