Check Engine lamp, faulty function: Notes

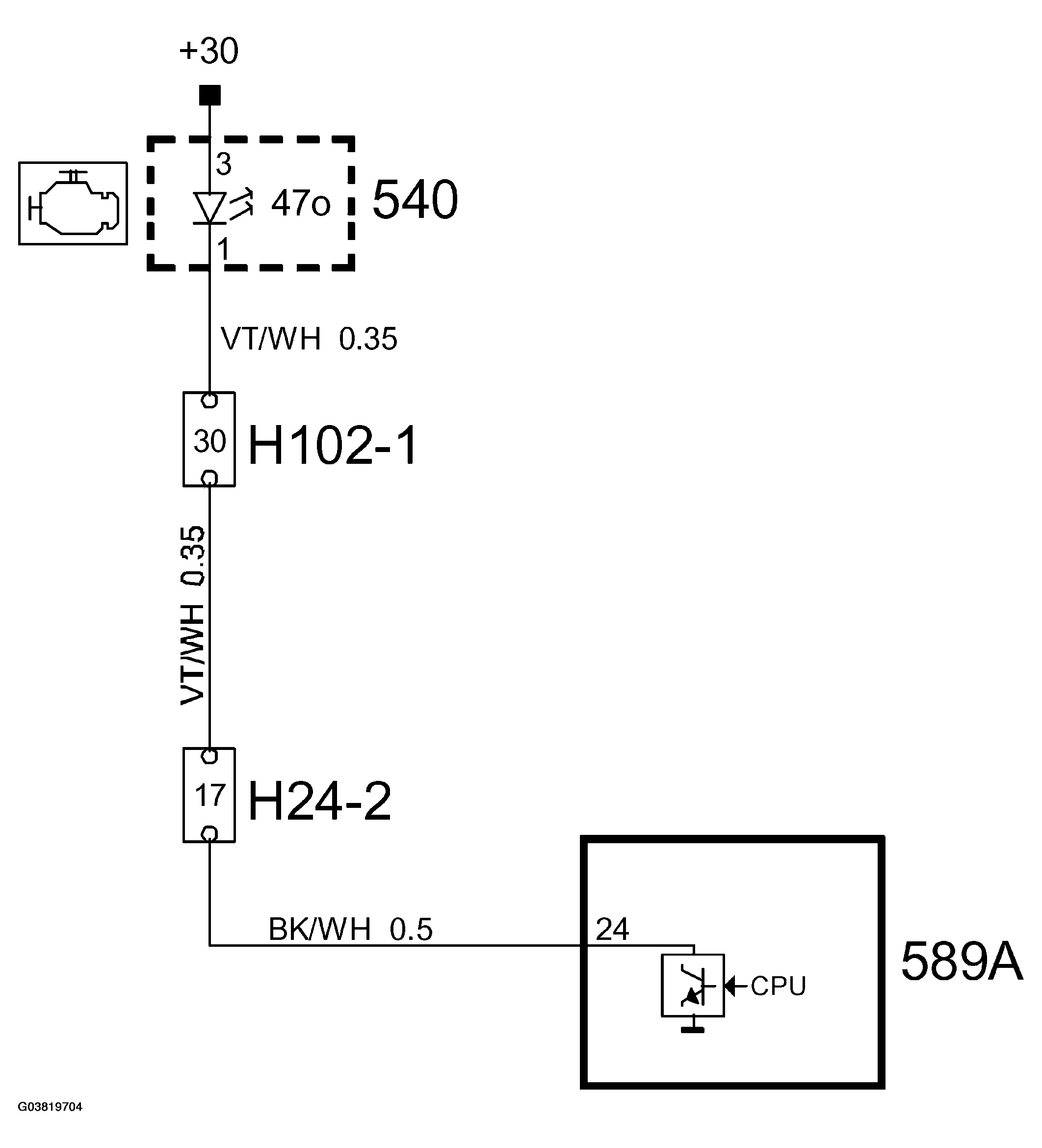

Fig 1: Identifying Circuit Diagram - Engine Lamp

G03819704

Courtesy of SAAB-SCANIA OF AMERICA, INC.
