Home >> Saab >> 2005 >> 9-3 Arc, 2D Convertible, Standard >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Component Location >> Fuse 2, main fuse box 727 >> Notes

Fuse 2, main fuse box 727: Notes

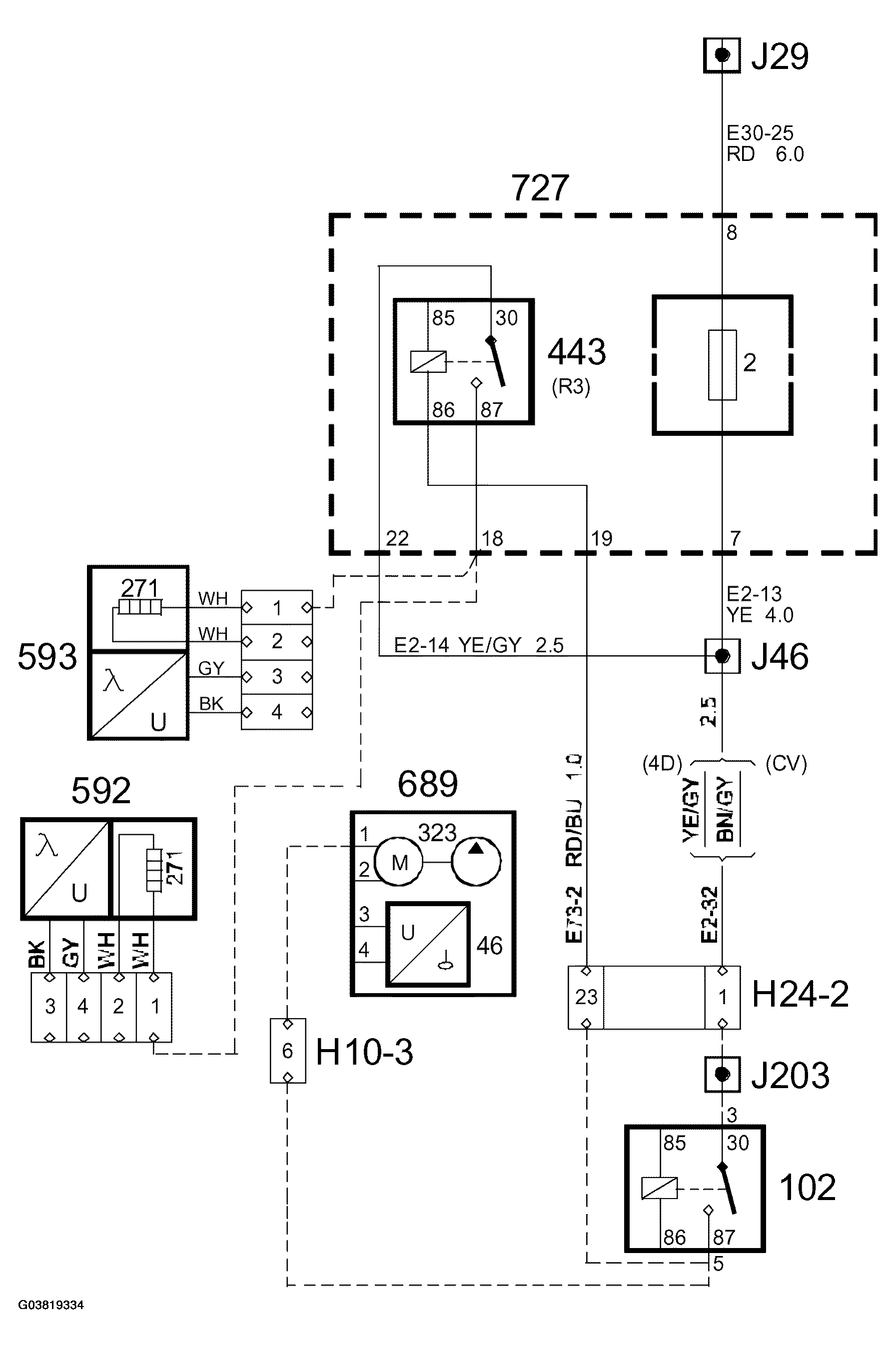

Fig 1: Circuit Diagram Fuse 2, Main Fuse Box 727

G03819334

Courtesy of SAAB-SCANIA OF AMERICA, INC.
