Home >> Saab >> 2005 >> 9-3 Arc, 2D Convertible, Standard >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Component Location >> Crimp J203, main wiring harness >> Trionic >> Notes

Crimp J203, main wiring harness: Trionic: Notes

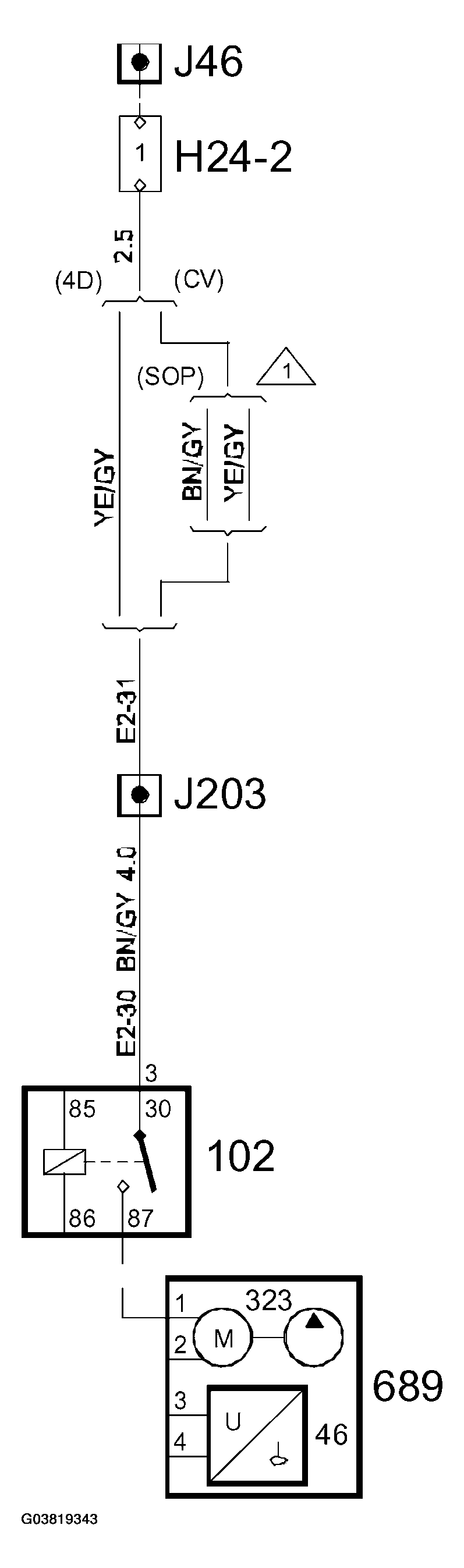

Fig 1: Circuit Diagram - Crimp J203, Main Wiring Harness Trionic

G03819343

Courtesy of SAAB-SCANIA OF AMERICA, INC.
