Main components

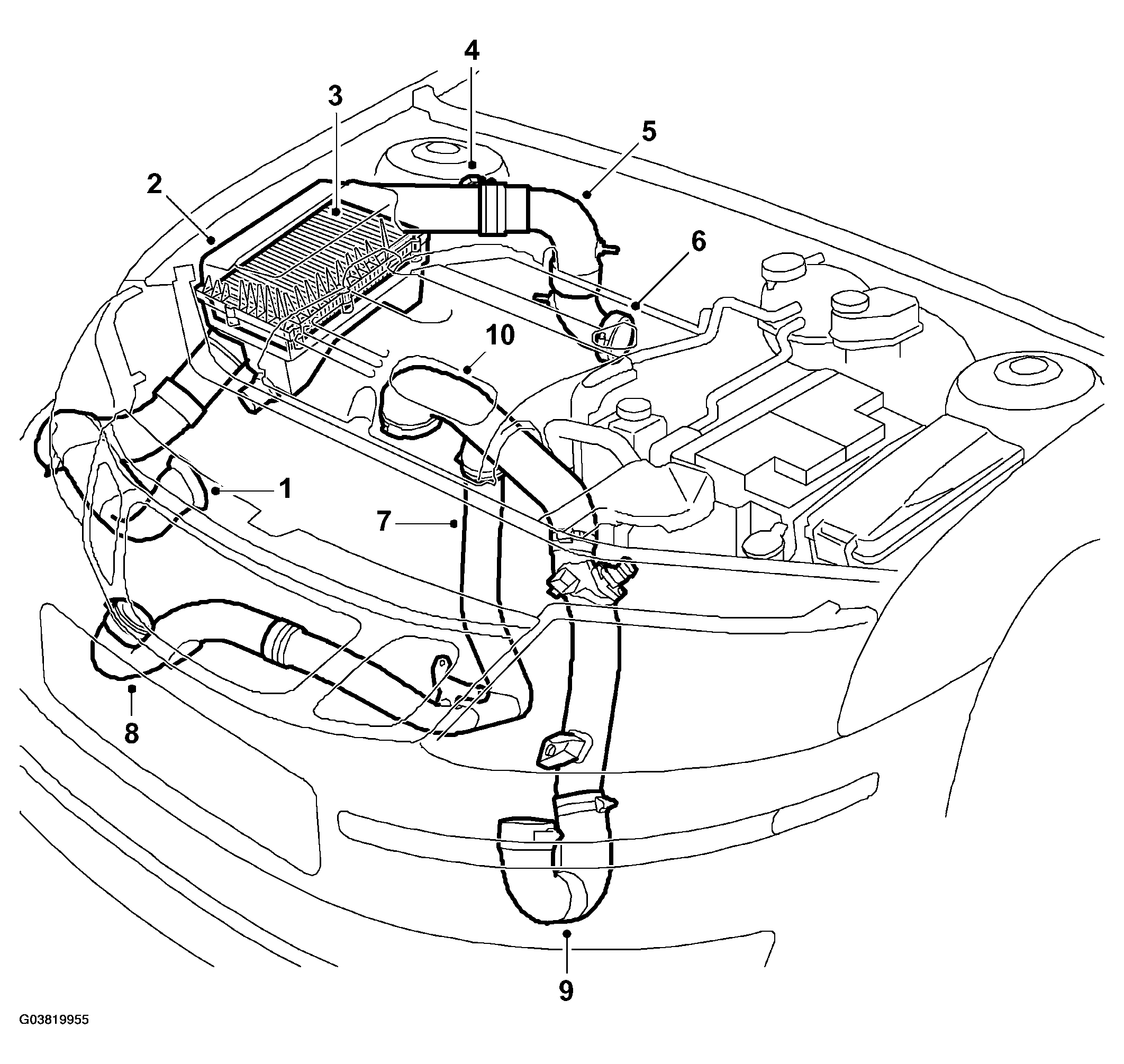

Fig 1: Illustration For Step 1-9
G03819955Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Air intake
  2. Air cleaner casing
  3. Filter element
  4. Mass air flow sensor
  5. Connecting pipe
  6. Connection to turbo
  7. Connection from turbo
  8. Connection to charge air cooler
  9. Connection from charge air cooler
  10. Connection intake manifold
