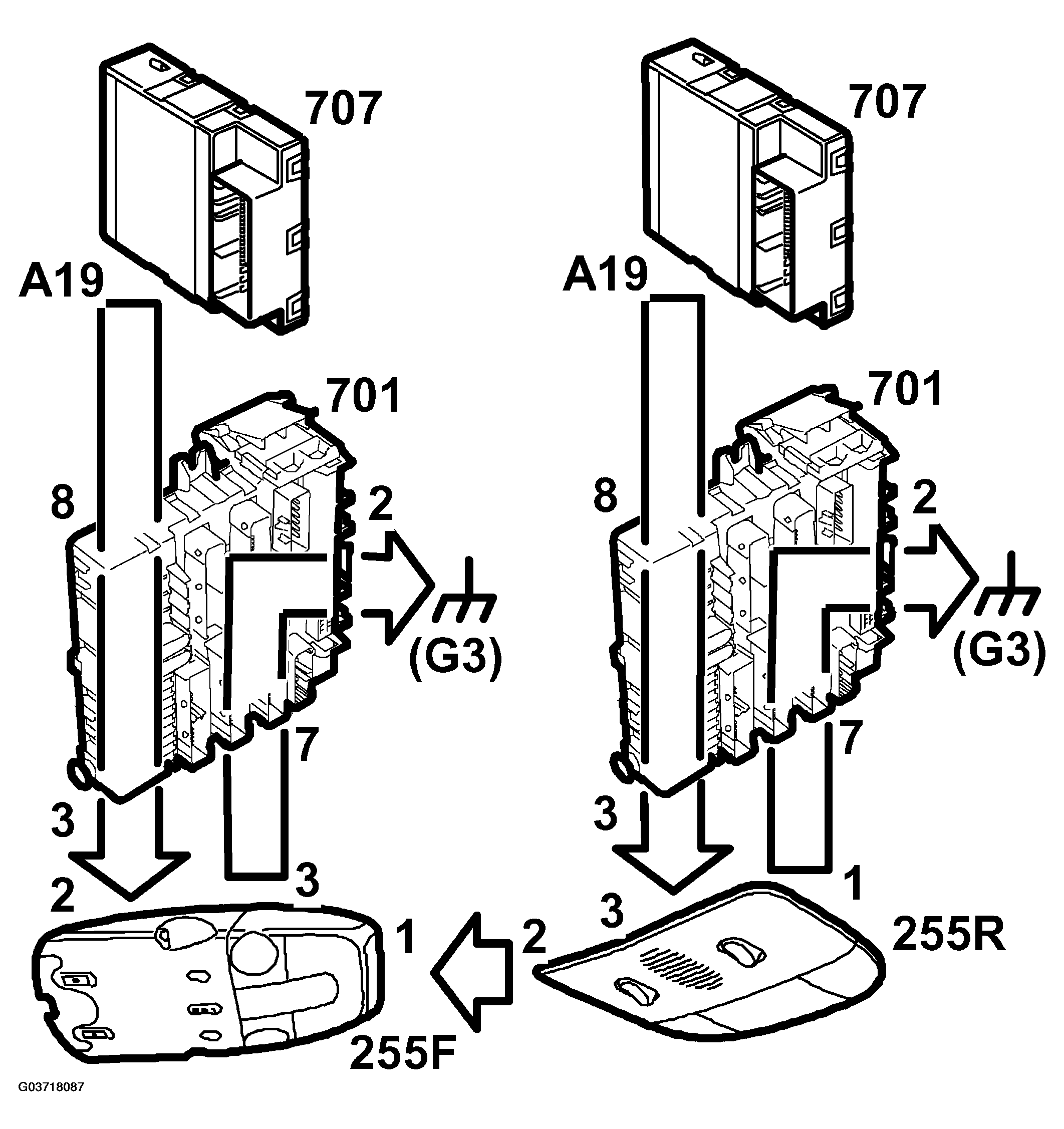

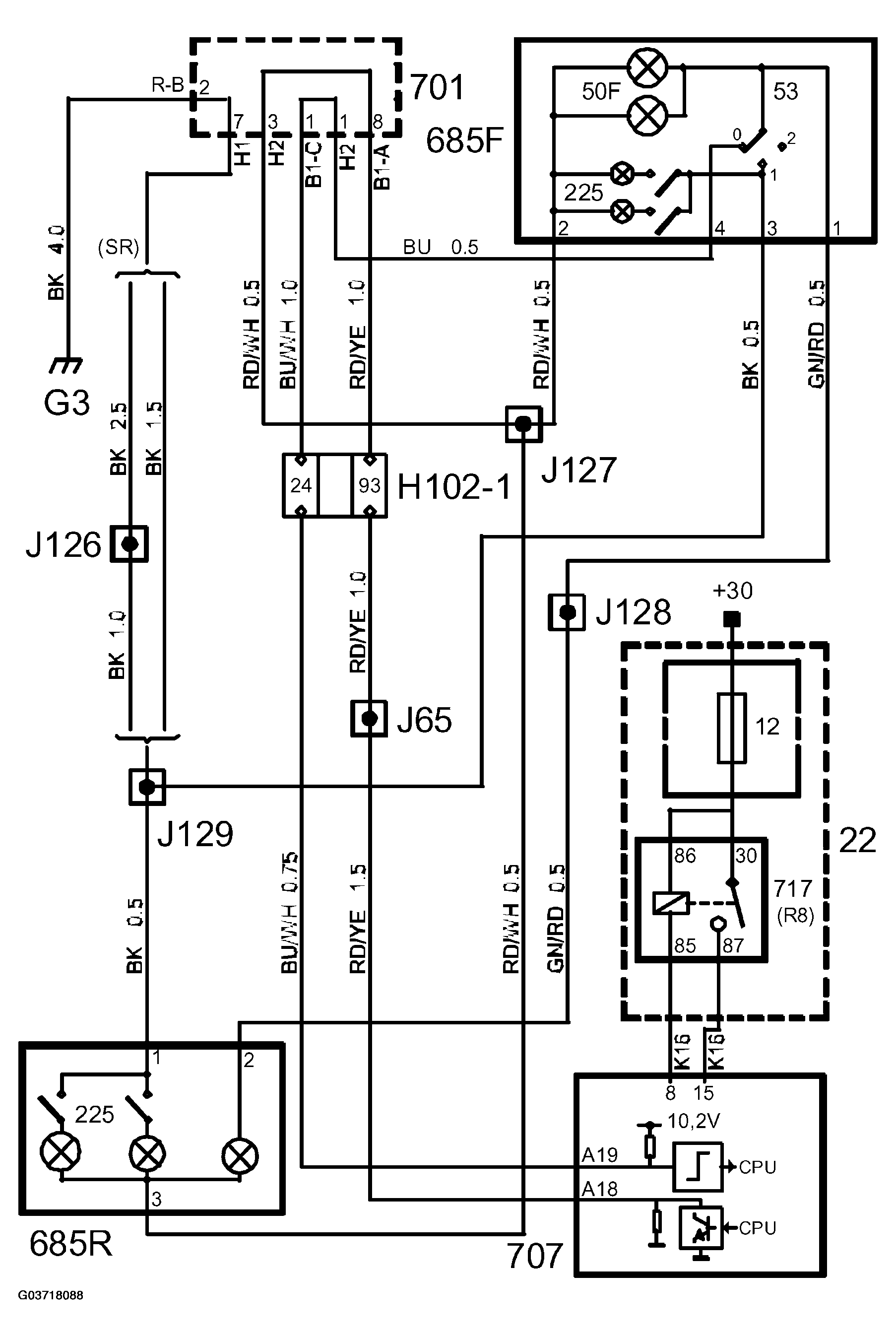

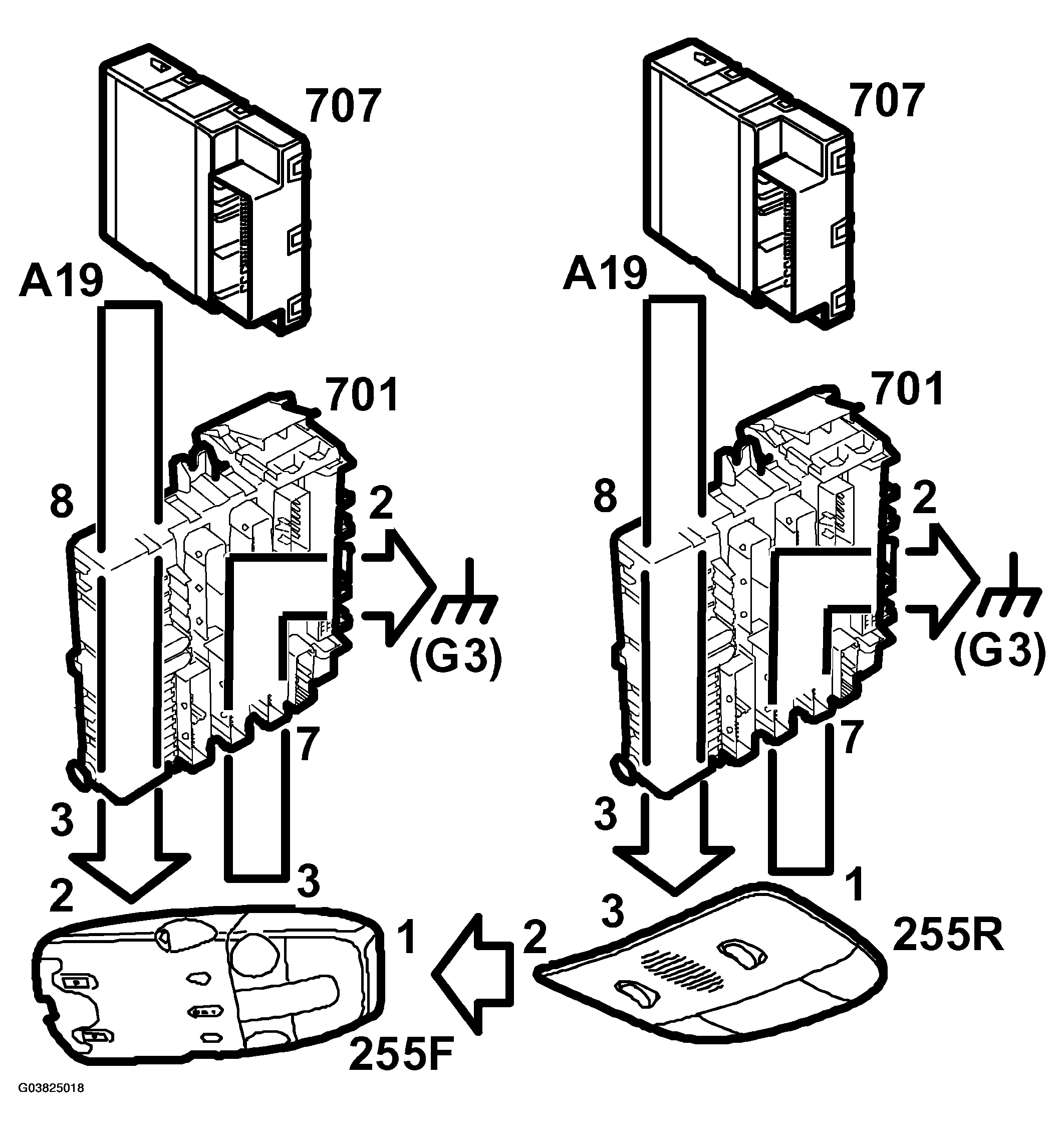

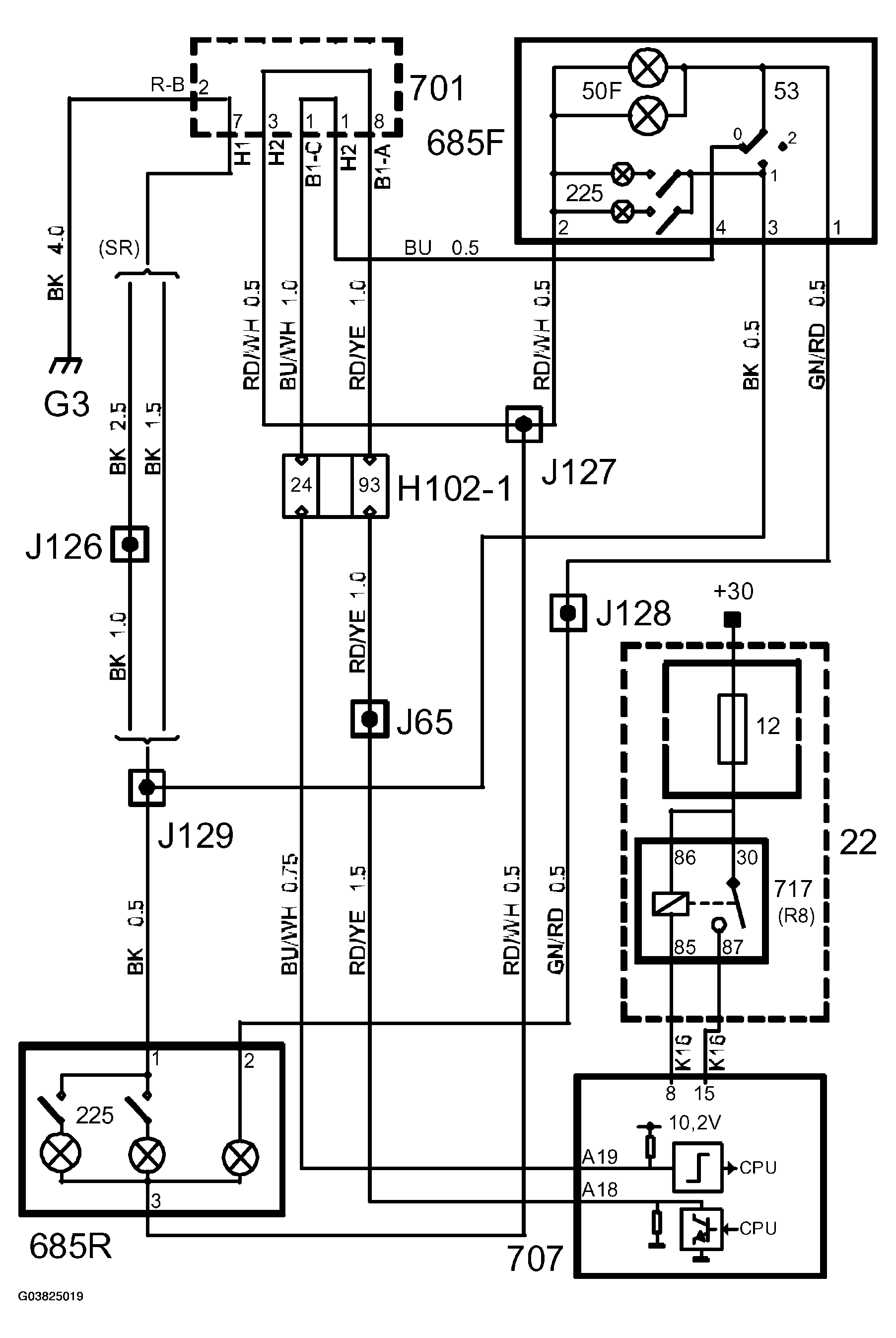

Reading lamp (225F/R), 4D: Connection: Notes
The lamps are grounded from REC. Power is supplied from a relay controlled by BCM. The supply voltage lead passes through BCM and REC on its way out to the lamps. BCM gauges the lead to determine if the switch is suddenly closed in a position when the relay is not activated.
