Fuse 15, dashboard electrical centre 22: Notes

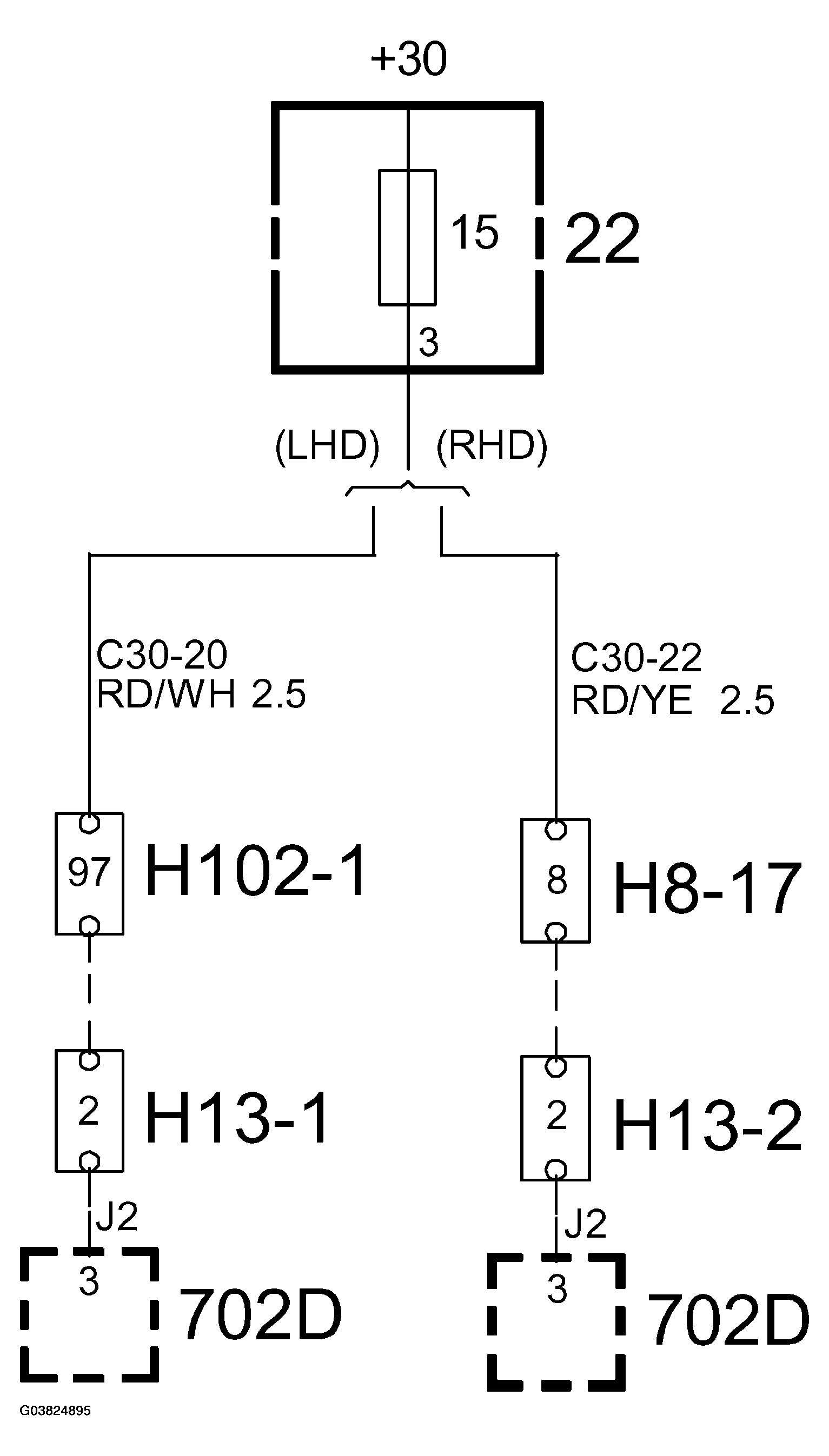

Fig 1: Dashboard Electrical Centre 22 Fuse 15 Connection Diagram

G03824895

Courtesy of SAAB-SCANIA OF AMERICA, INC.
