Crimp connection J7, front harness: Notes

Location:  Approx. 270 mm from branching of grounding point G30 towards the right headlamp

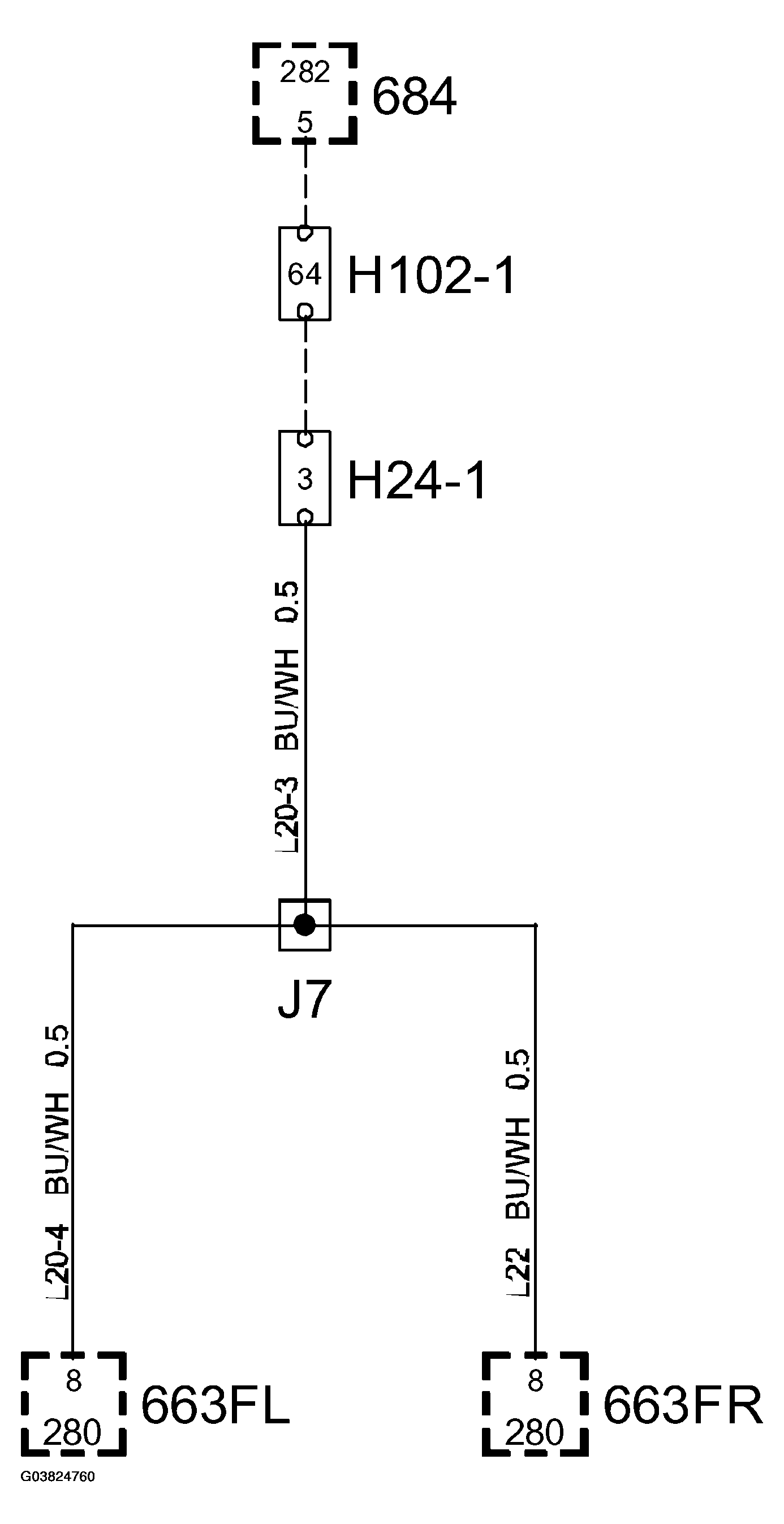

Fig 1: Crimp Connection J7, Front Harness Circuit
G03824760Courtesy of SAAB-SCANIA OF AMERICA, INC.
