Crimp connection J6, front harness: Notes

Location:  Approx. 130 mm from branching of grounding point G30 towards the right headlamp

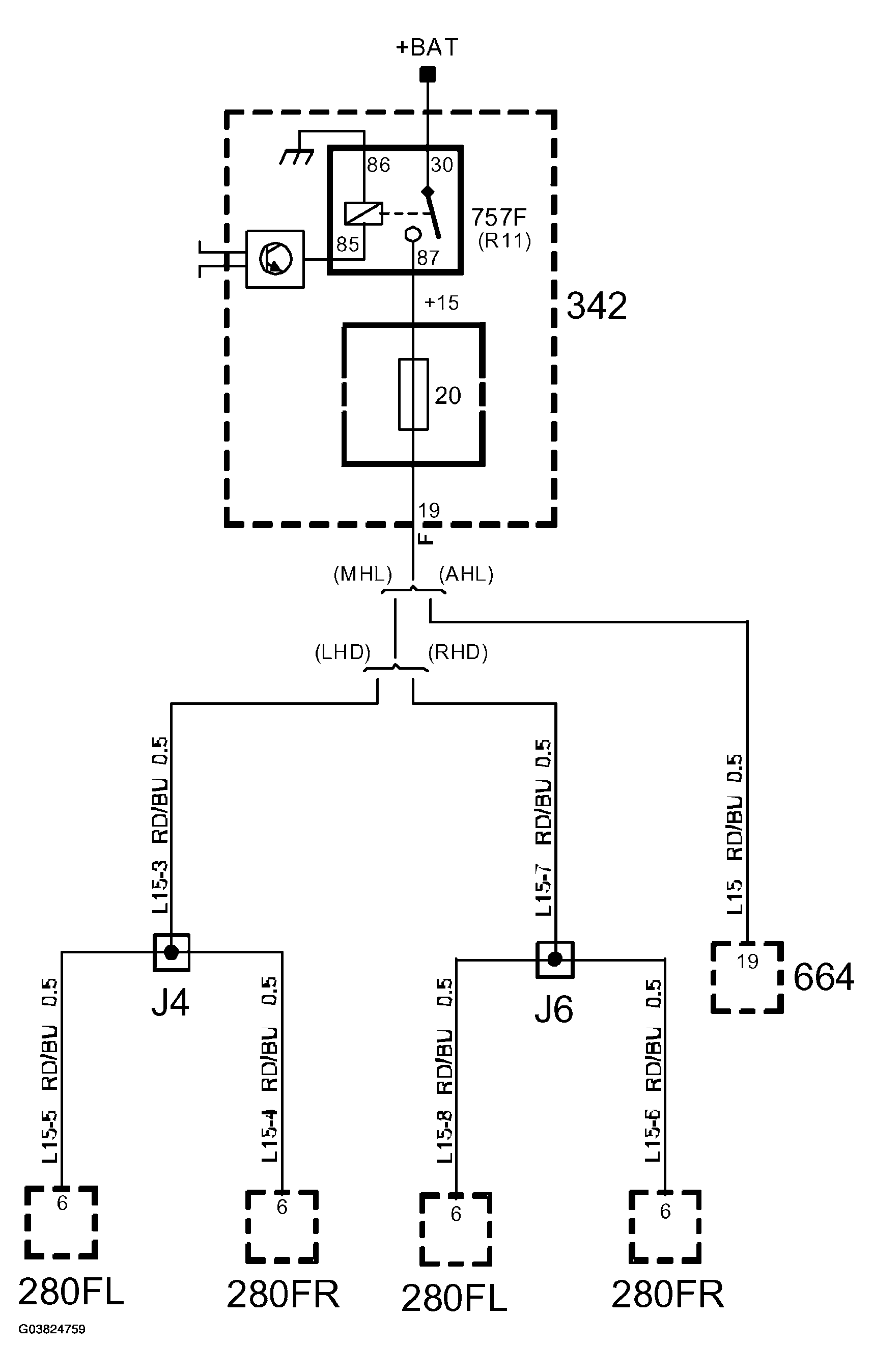

Fig 1: Crimp Connection J6, Front Harness Circuit
G03824759Courtesy of SAAB-SCANIA OF AMERICA, INC.
