Crimp connection J12, front harness: Notes

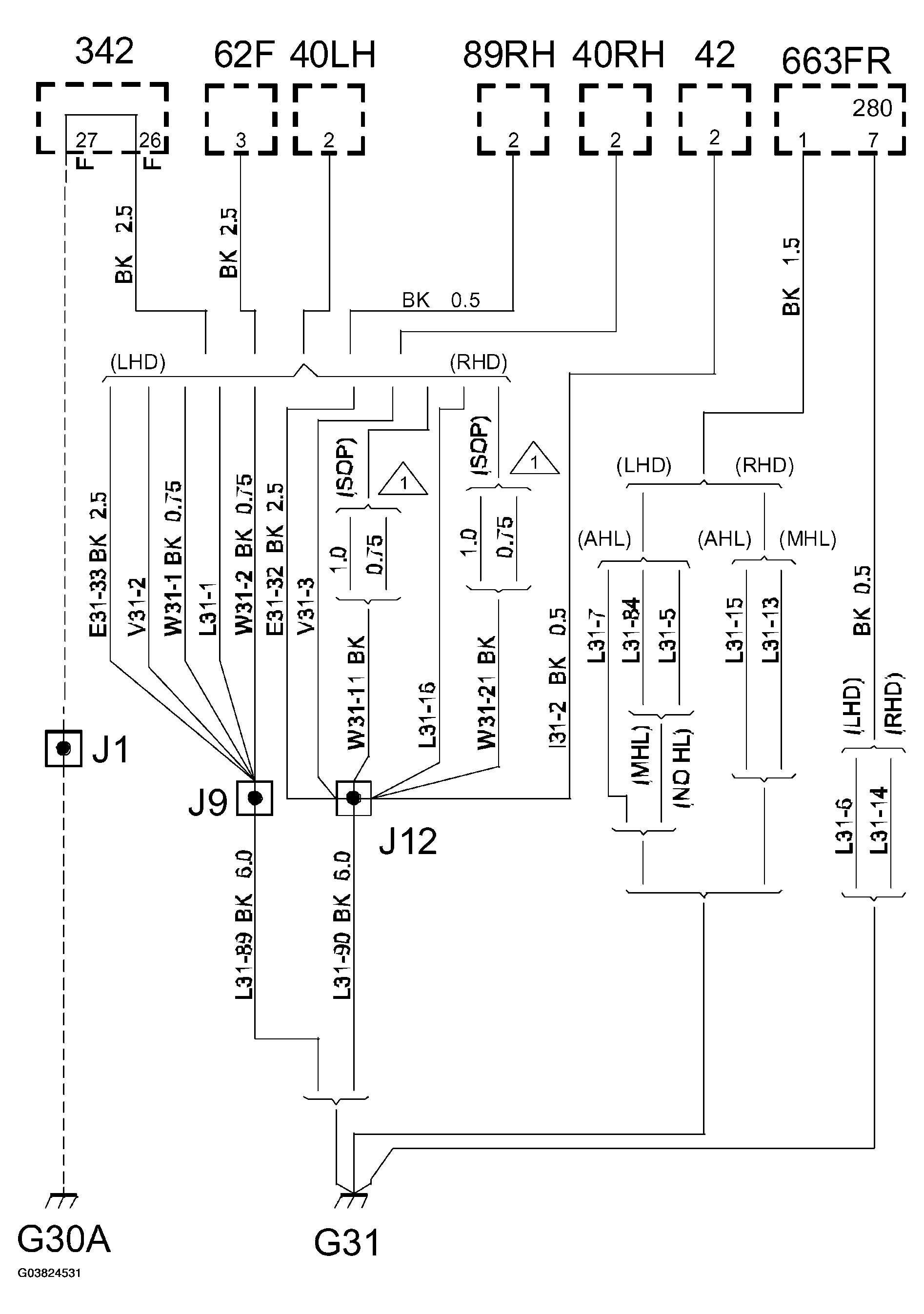

Fig 1: Identifying J12 Crimp Connection Diagram (Front Harness)
G03824531Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  Approx. 130 mm from branching point grounding point G31 towards LH headlamp



Location:  Approx. 130 mm from branching point grounding point G31 towards LH headlamp

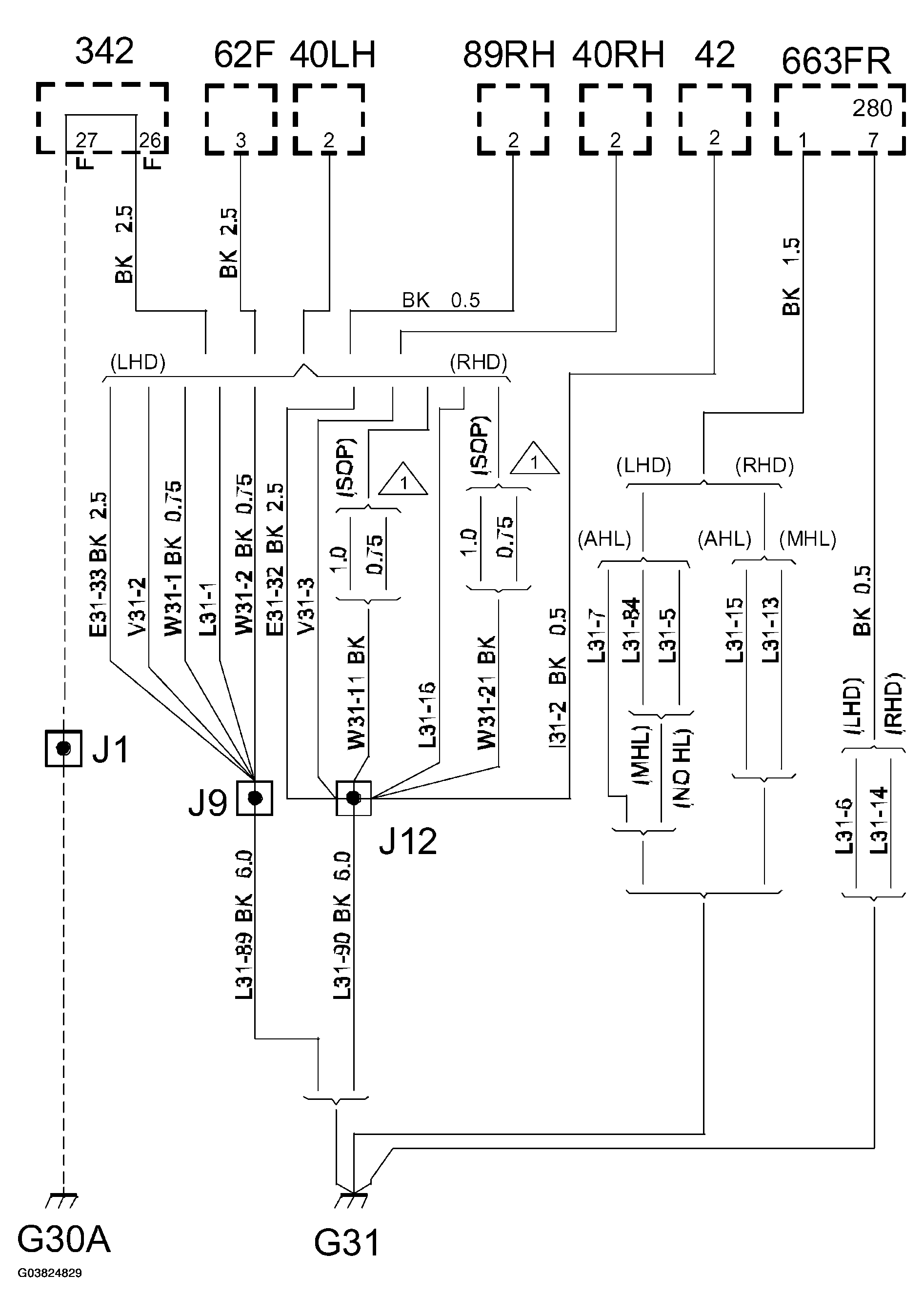

Fig 1: Crimp Connection J12, Front Harness Circuit
G03824829Courtesy of SAAB-SCANIA OF AMERICA, INC.
