Crimp connection J1, front harness: Notes

Location:  Approx. 210 mm from branching of grounding point G30 towards the left headlamp

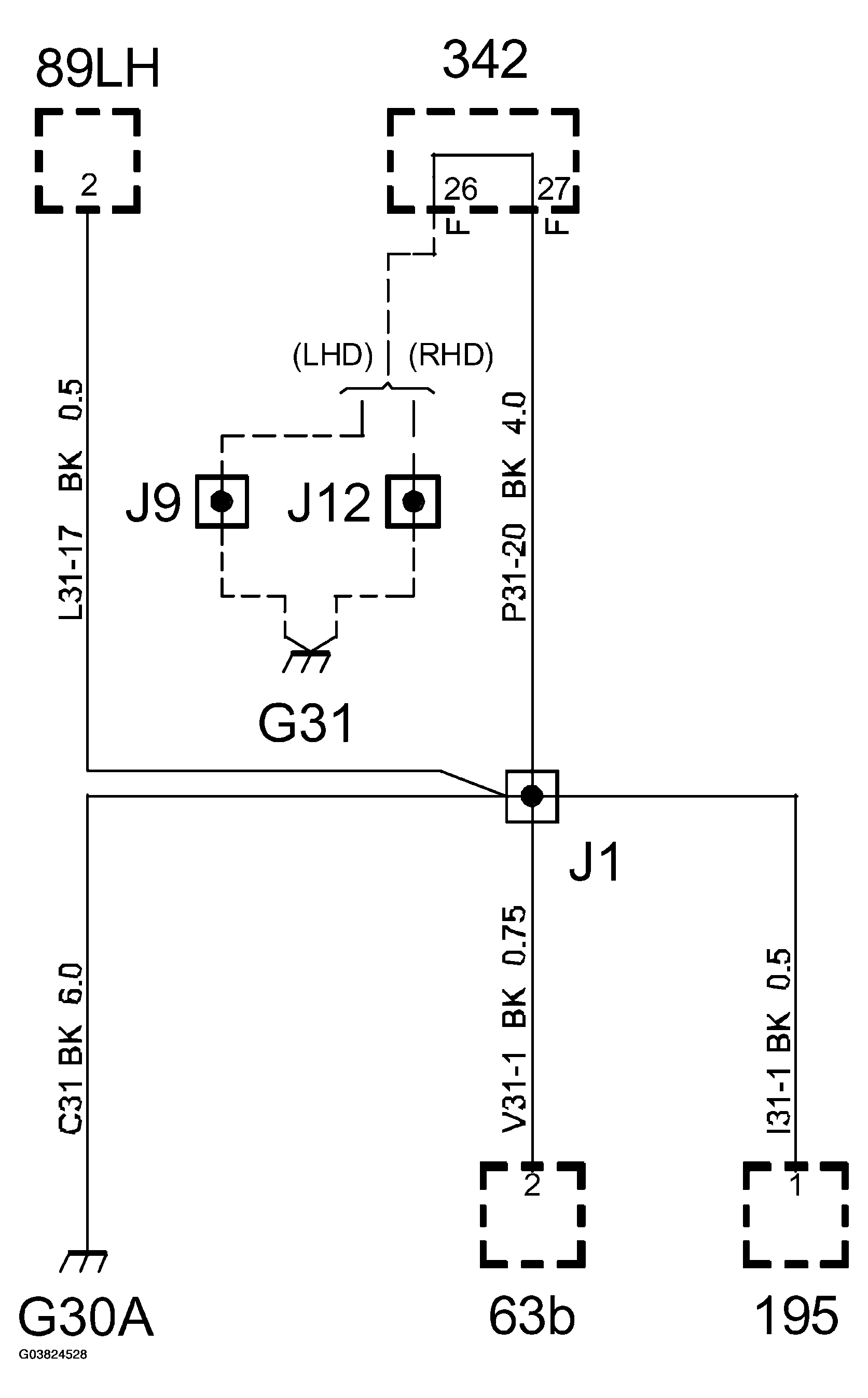

Fig 1: Identifying J1 Crimp Connection Diagram (Front Harness)
G03824528Courtesy of SAAB-SCANIA OF AMERICA, INC.
