Connector H8-7

Location:  grey connector on the side panel between the REC and the wheel housing

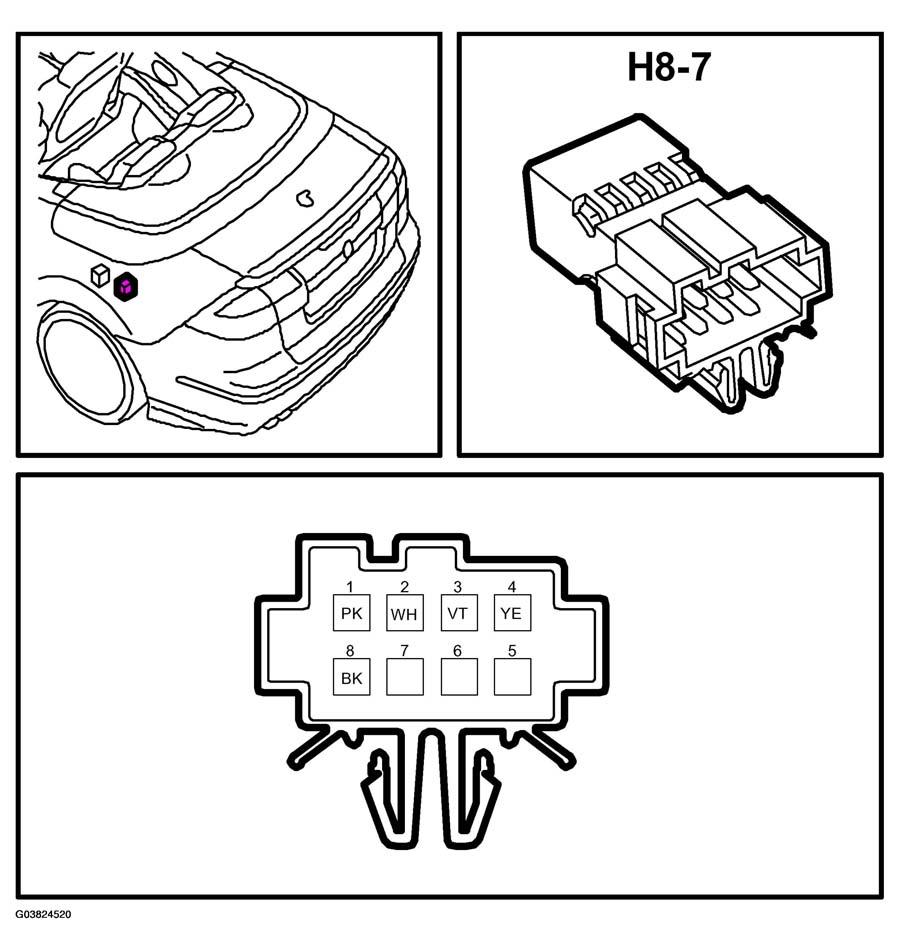

Fig 1: Identifying H8-7 Connector Pinouts And Location
G03824520Courtesy of SAAB-SCANIA OF AMERICA, INC.


Location:  grey connector on the side panel between the REC and the wheel housing

Fig 1: Identifying Connector H8-7 Connector Pinouts
G03824939Courtesy of SAAB-SCANIA OF AMERICA, INC.
