To remove

  1. Turn the ignition key to the LOCK position.
  2. LH:  Remove the battery cover and washer filler pipe.
  3. Remove the protective cover of the Xenon lamp.
  4. Unplug the ignition transformer connector.
  5. Remove the ignition transformer.
  6. Undo the clamp holding the Xenon bulb.

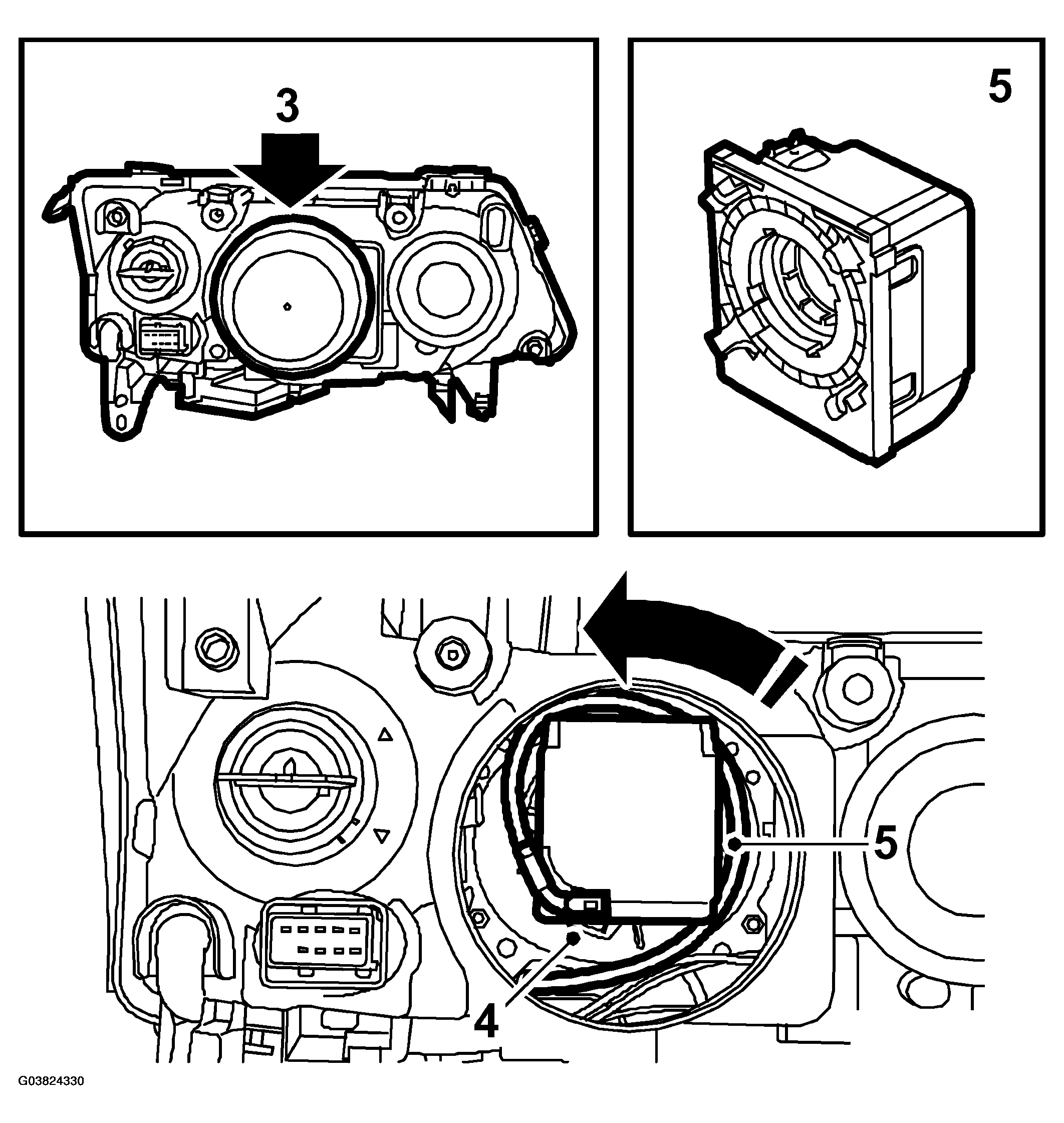

    Fig 1: Illustration For Step 3-5
    G03824330Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Lift the Xenon bulb straight out of the headlamp.

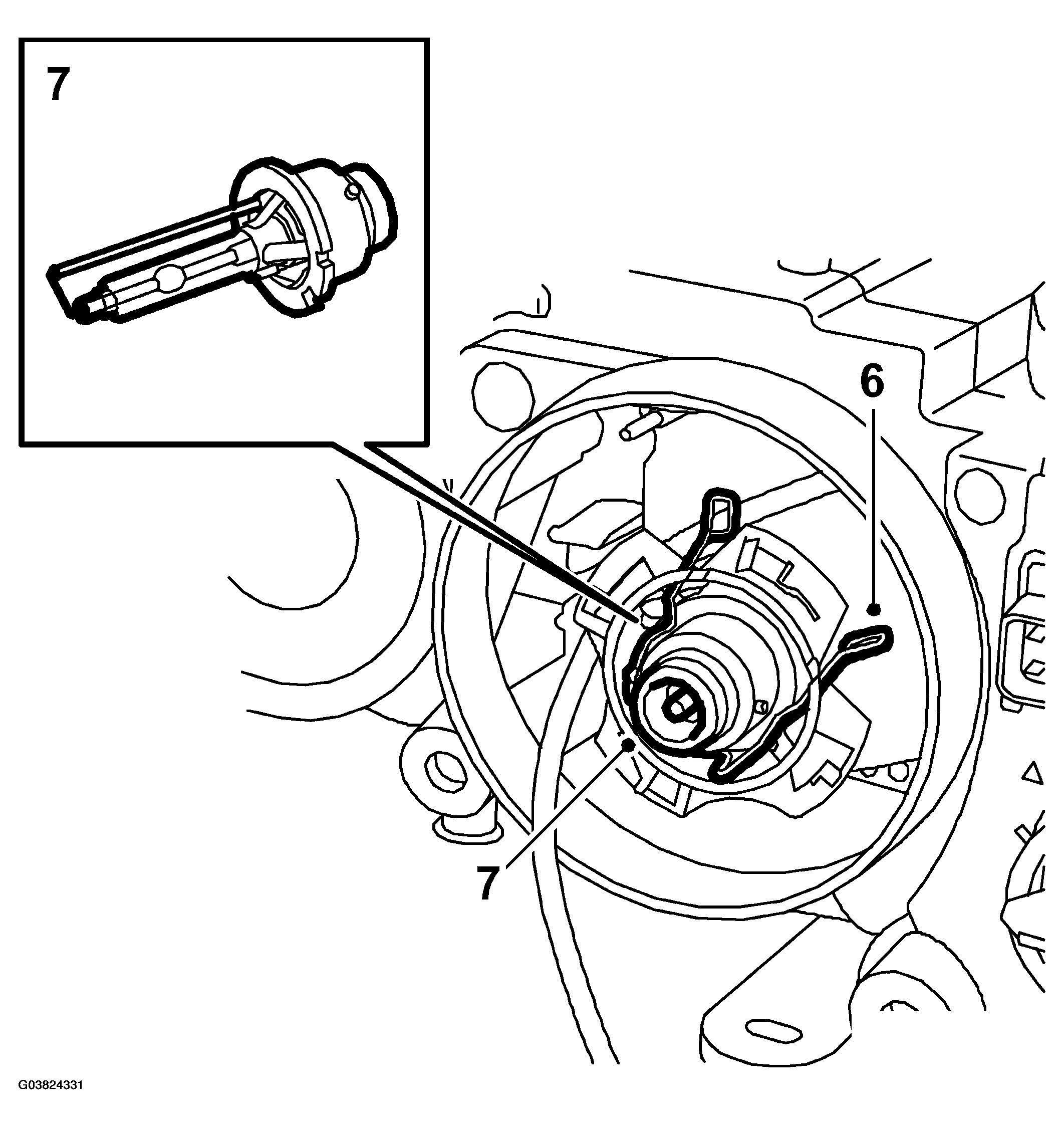

    Fig 2: Illustration For Step 6-7
    G03824331Courtesy of SAAB-SCANIA OF AMERICA, INC.
