To fit

  1. Plug in the connector.

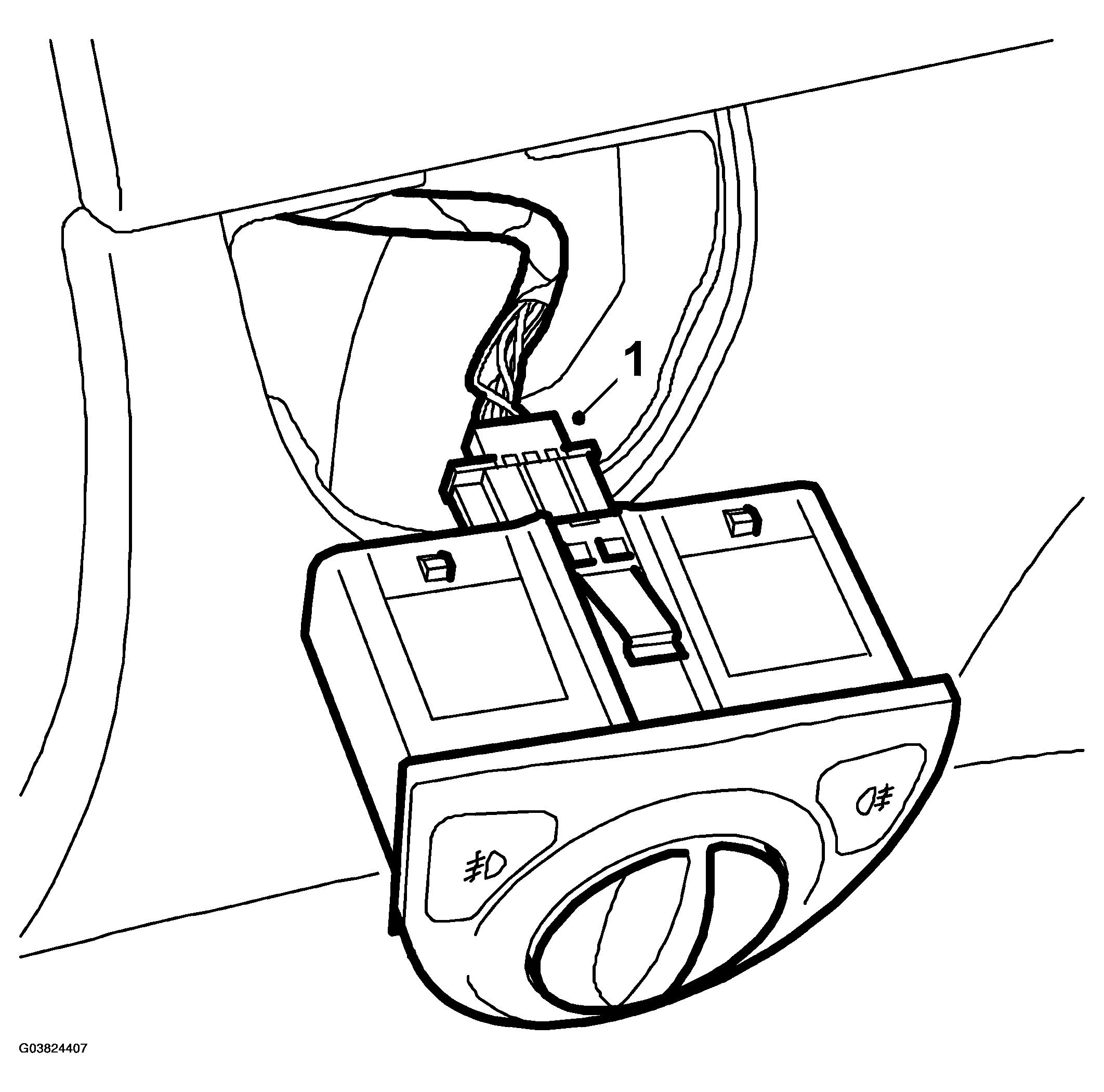

    Fig 1: Illustration For Step 1
    G03824407Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Press the light switch into place.

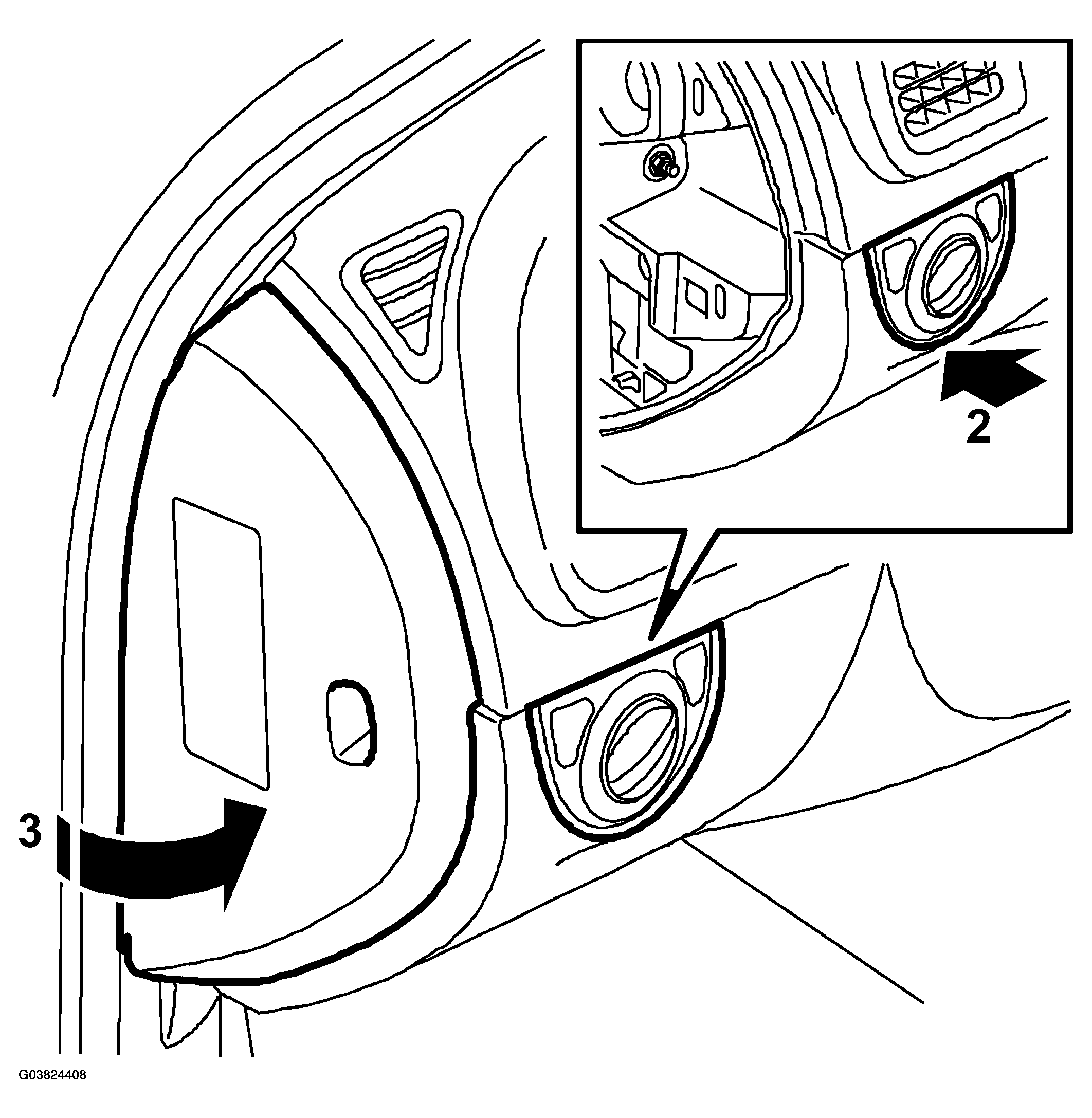

    Fig 2: Illustration For Step 2-3
    G03824408Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the cover of the dashboard fuse box.
