To remove

  1. Remove the boot lid trim.
  2. Unplug the light cluster connector.

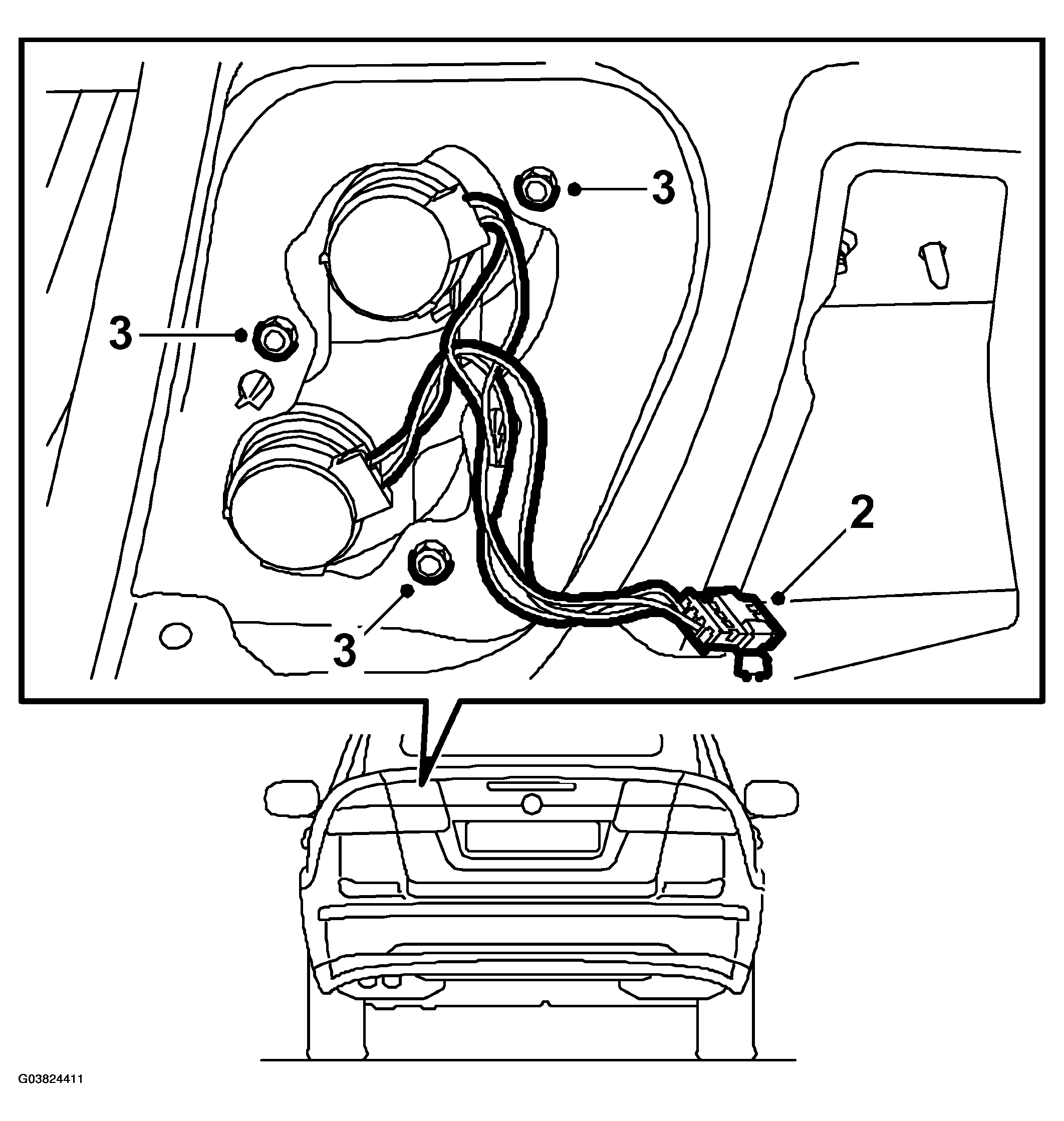

    Fig 1: Illustration For Step 2-3
    G03824411Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the light cluster nuts. Remove the light cluster.
  4. If the light cluster is to be replaced, the fittings and bulbs must be transferred to the new lamp.
