To remove

IMPORTANT: Take care not to damage the roof unit.
  1. Remove the headlining. See HEADLINING .

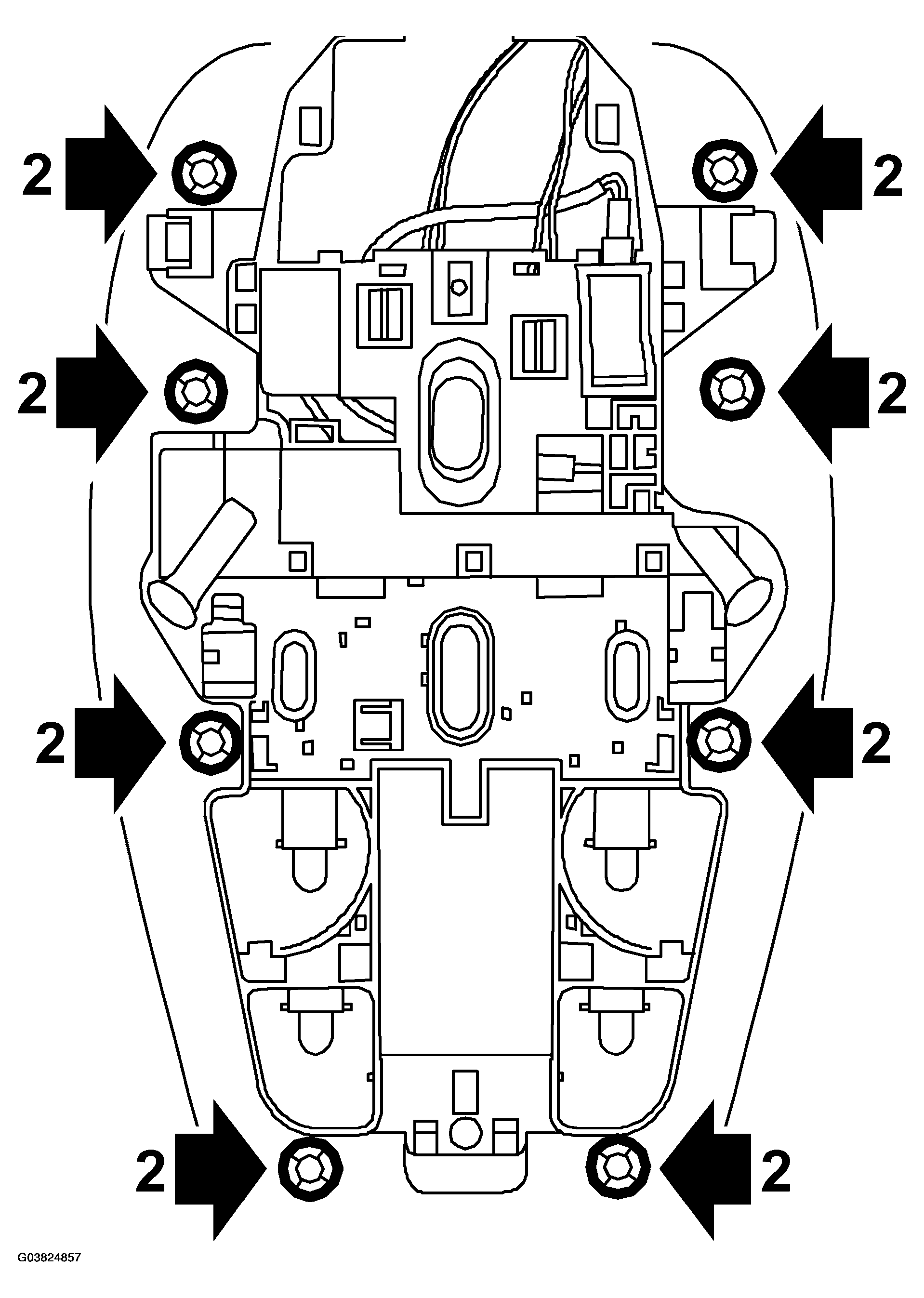

    Fig 1: Illustration For Step 2
    G03824857Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the clips. Use nippers to cut the clips.
  3. Unplug the connectors from the roof unit.

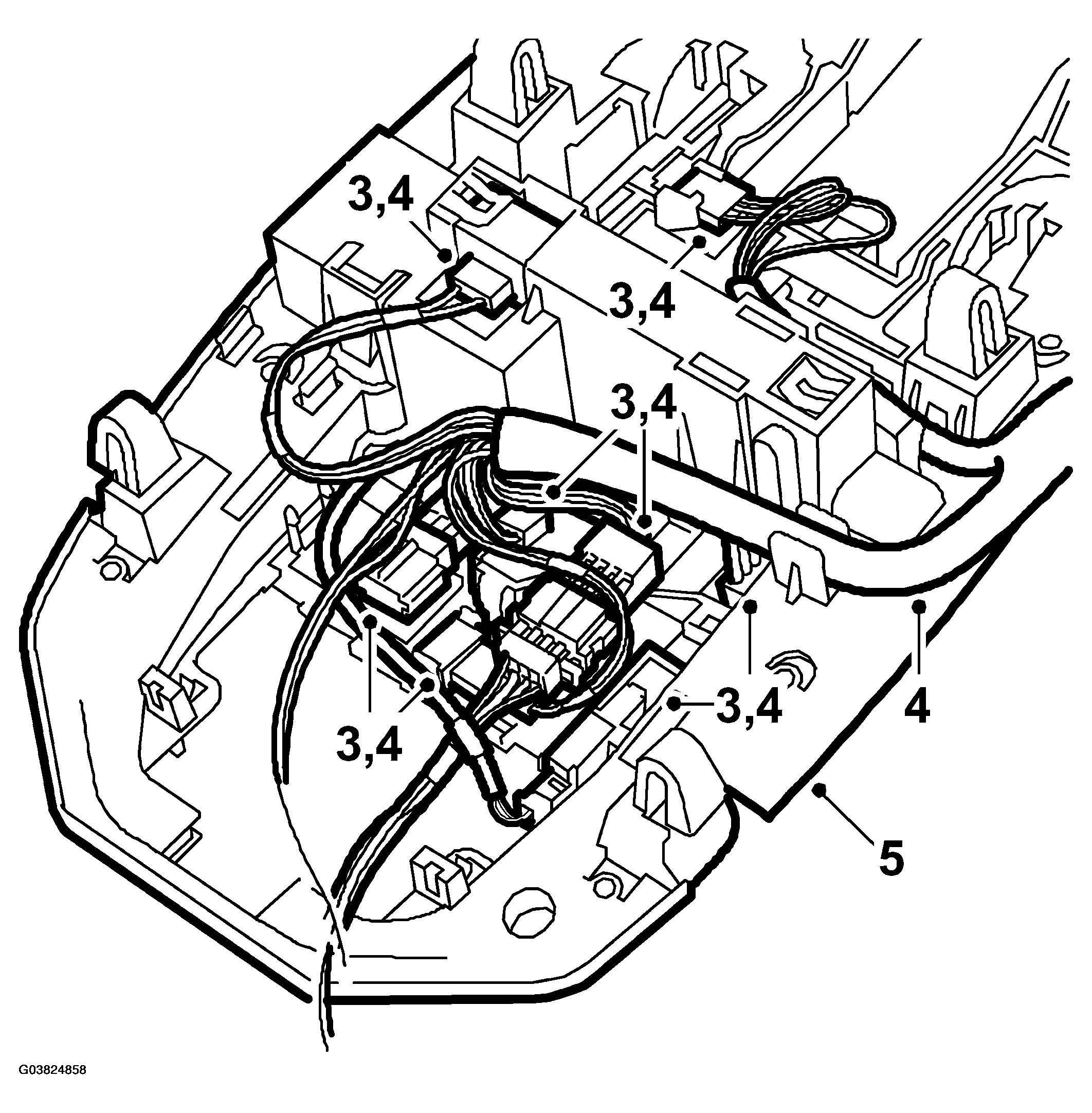

    Fig 2: Illustration For Step 3-5
    G03824858Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Undo the wiring harness, movement detector, temperature sensor and microphone from the roof unit holder.
  5. Lift out the roof unit.
