To remove

  1. LH:  Move the radiator hose to the side and remove the battery cover.

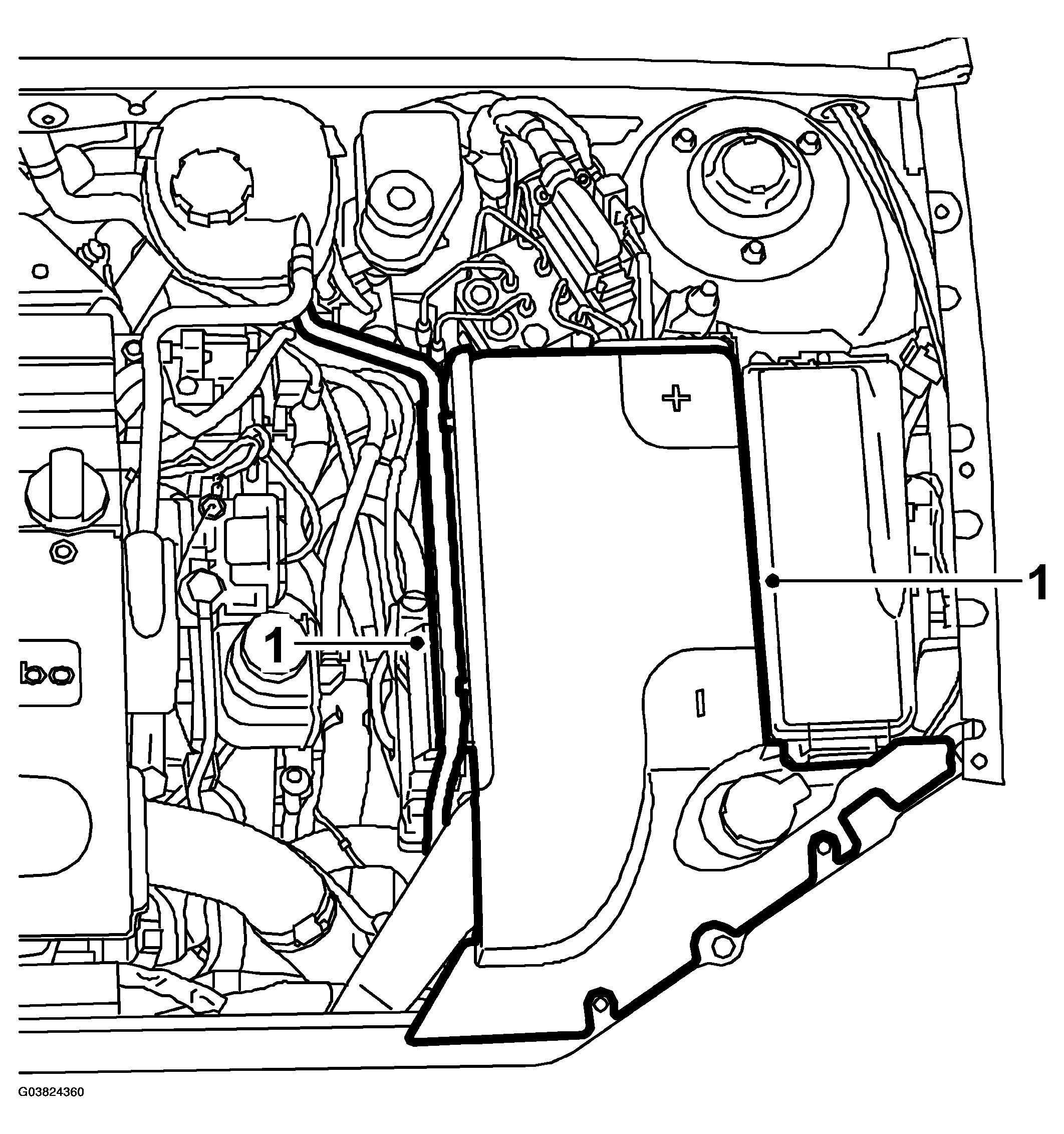

    Fig 1: Illustration For Step 1
    G03824360Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the protective cover of the headlamp.
    NOTE: Carefully pull on the reinforced parking light cables to pull out the bulb socket.

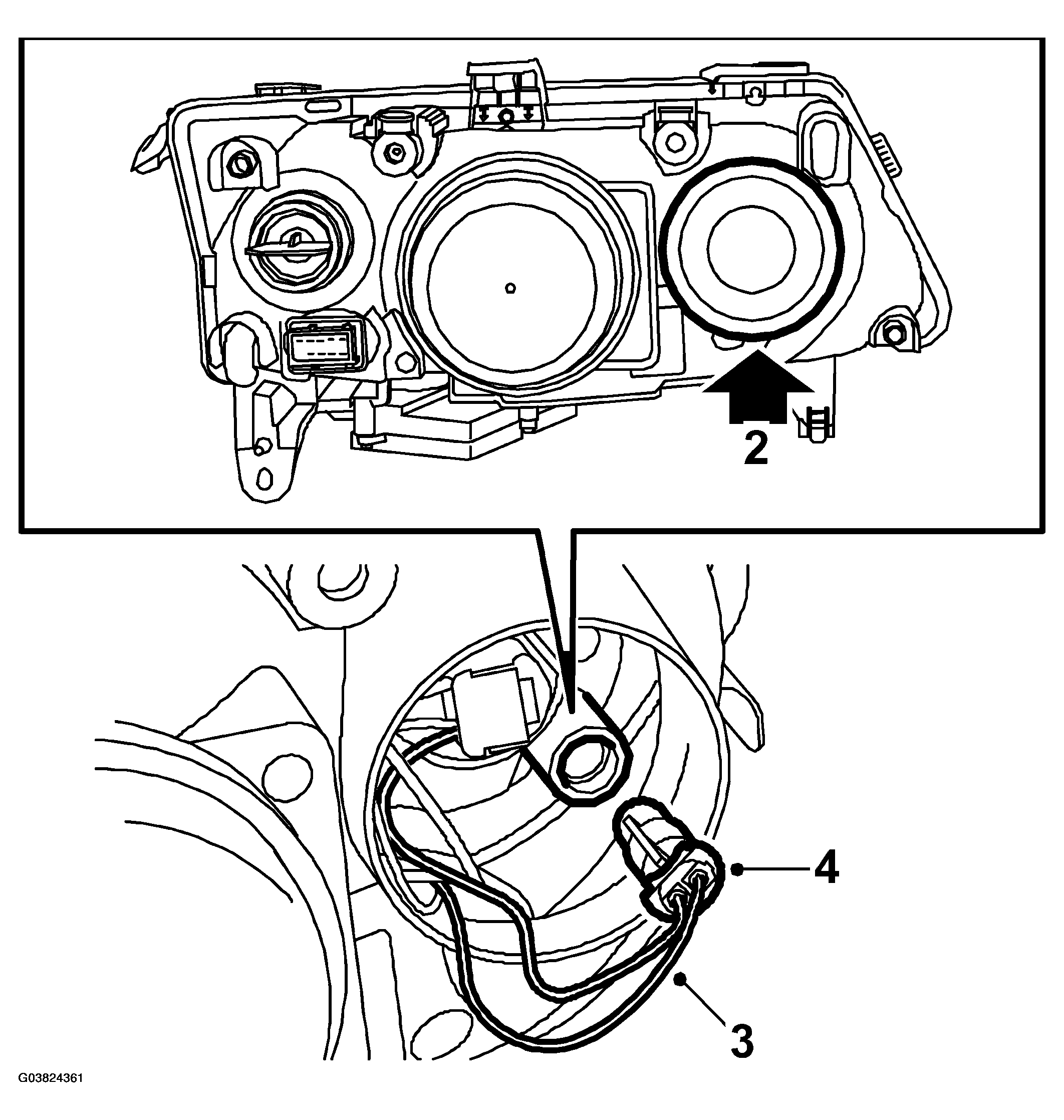

    Fig 2: Illustration For Step 2-4
    G03824361Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Pull the bulb socket out of the lamp housing.
  4. Remove the bulb from the socket.
