To fit

IMPORTANT: When changing a bulb, select a new bulb of the correct rating to prevent the components being damaged.

Fit the bulb in the socket by turning it clockwise until secure.
NOTE: To facilitate bulb fitting, look at the bulb from the front through the headlamp lens while fitting.

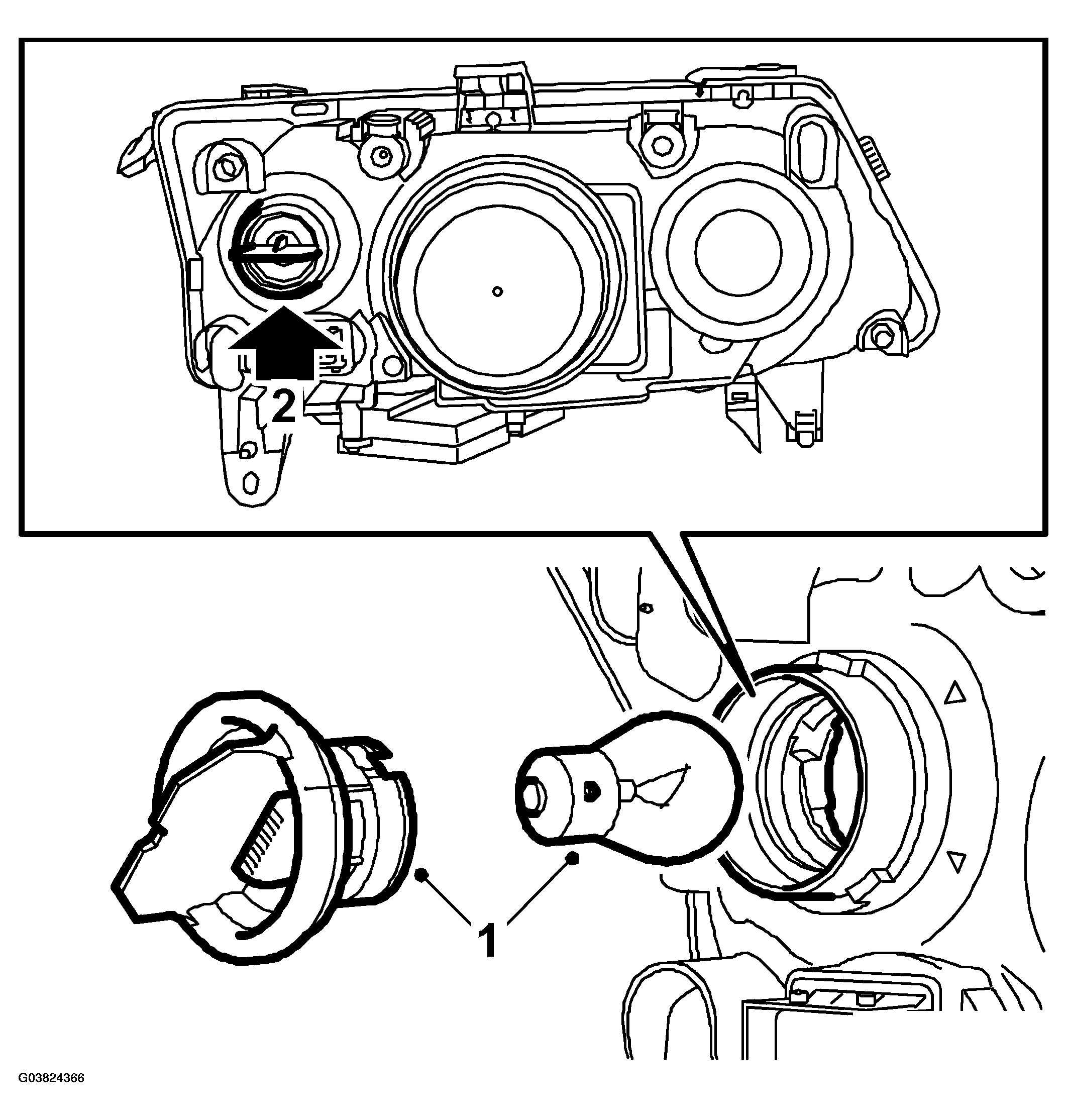

Fig 1: Illustration For Step 1-2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the bulb socket to the headlamp by turning clockwise until secure.
LH: Fit the filler pipe of the washer fluid reservoir.

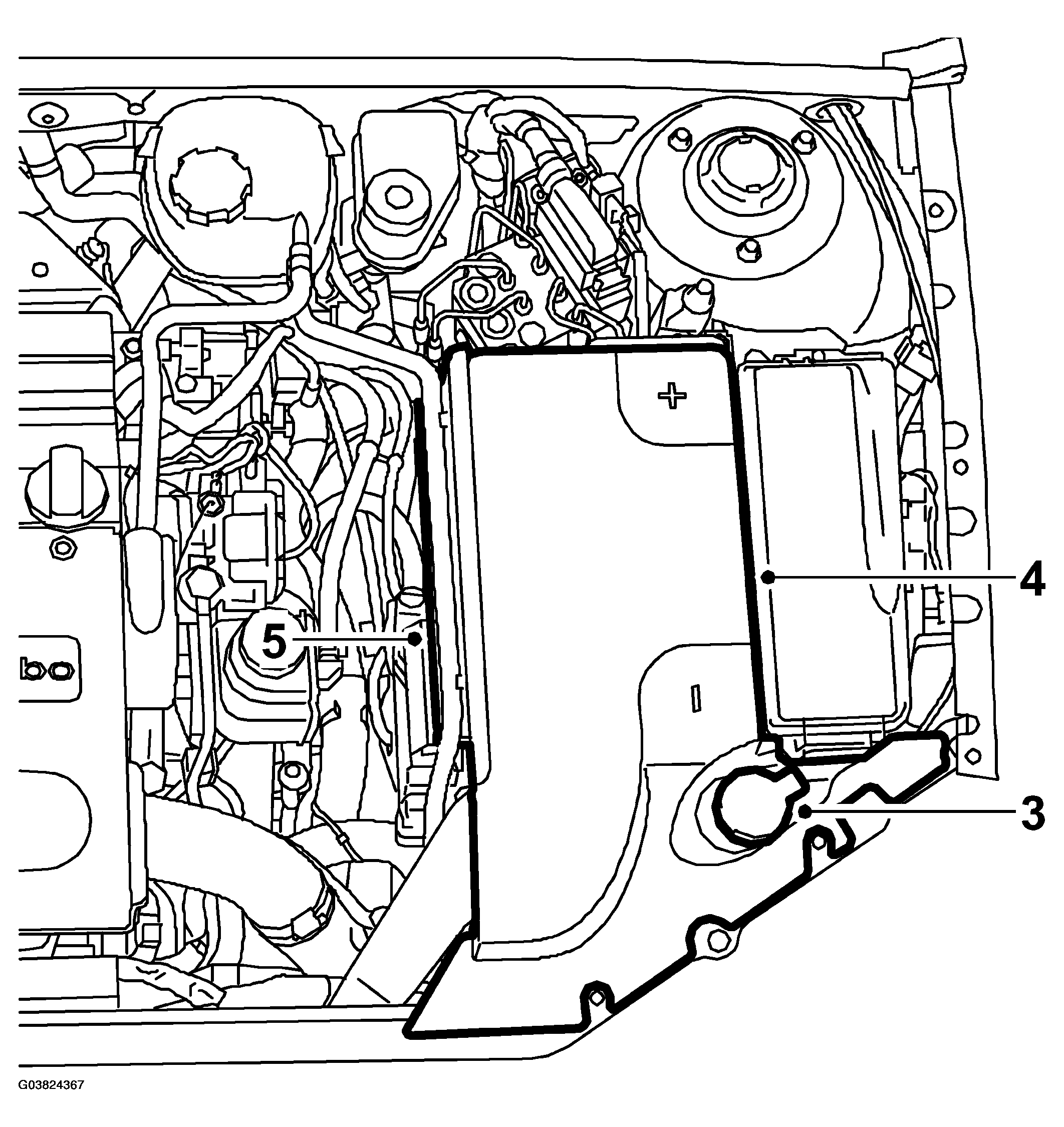

Fig 2: Illustration For Step 3-4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
LH: Fit the battery cover.
LH: Refit the radiator hose.
