Home >> Saab >> 2005 >> 9-3 Arc, 2D Convertible, Standard >> Repair and Diagnosis >> Electrical >> Horns >> Lighting And Signaling Systems >> Adjustment / Replacement >> Bulb, ashtray >> To remove

To remove

  1. Remove the ASHTRAY  .
  2. Remove the shaft holding the cigarette lighter and the bulb in place.

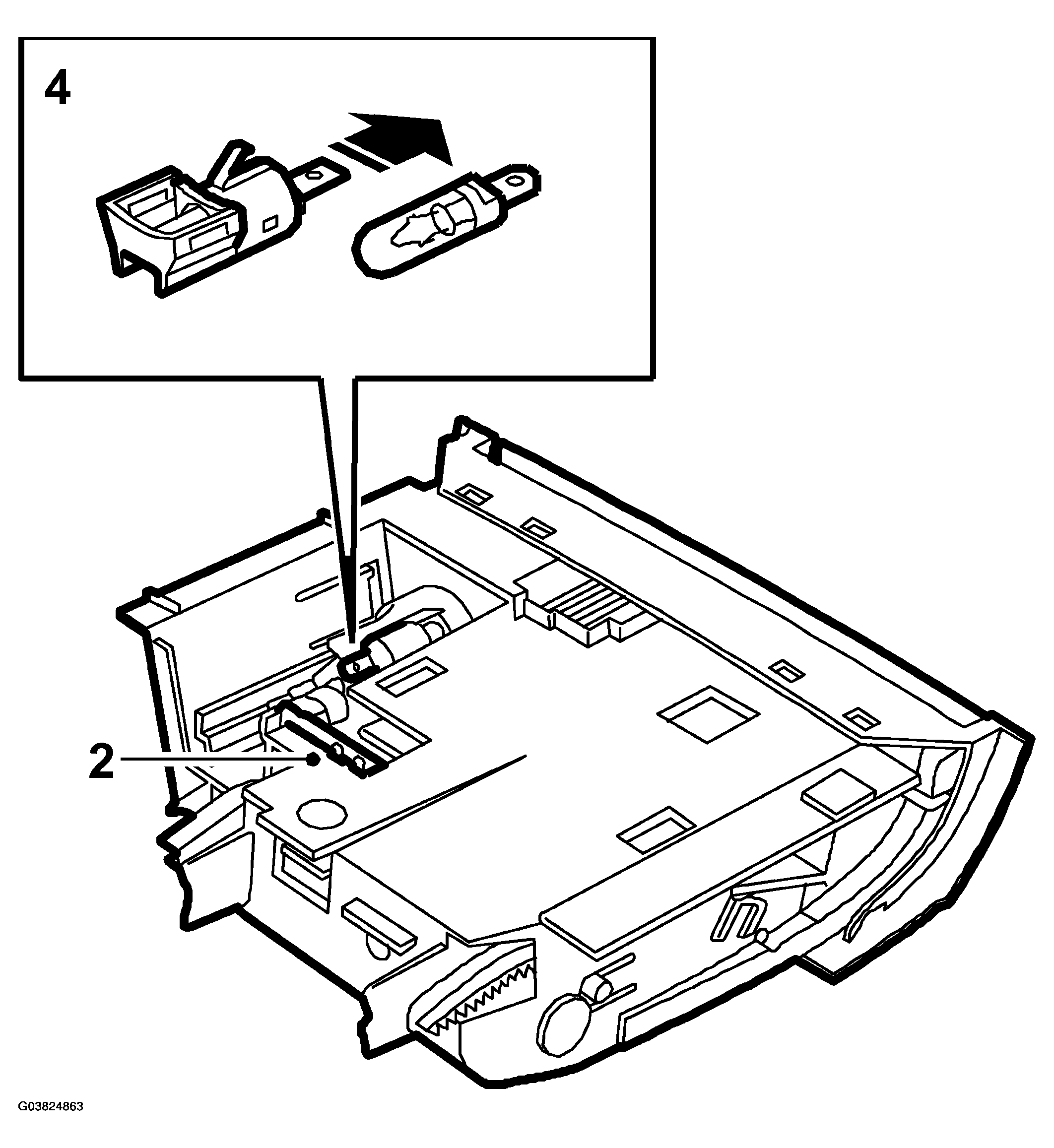

    Fig 1: Illustration For Step 2 And 4
    G03824863Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Press in the catch and remove the cigarette lighter and bulb.
  4. Remove the bulb by carefully prying the clips loose.
