Home >> Saab >> 2005 >> 9-3 Arc, 2D Convertible, Standard >> Repair and Diagnosis >> Brakes >> Anti-Lock/Traction Control >> Fault symptom >> TC/ESP function cannot be switched off with shut-off button. >> Notes

TC/ESP function cannot be switched off with shut-off button.: Notes

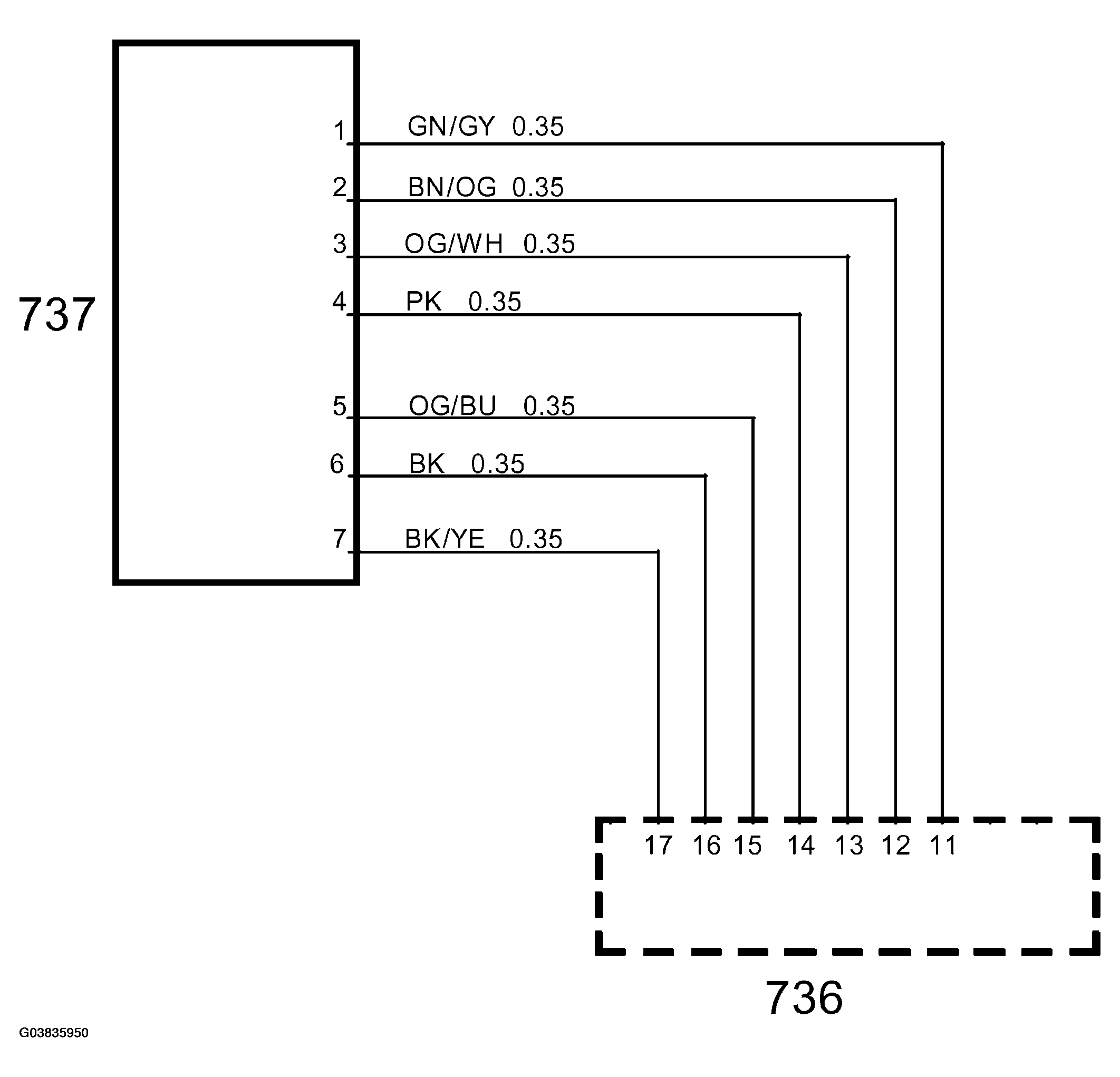

Fig 1: TC/ESP OFF Switch Connection Diagram

G03835950

Courtesy of SAAB-SCANIA OF AMERICA, INC.
