To fit

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .

Plug in the control module connector and fit the clip.

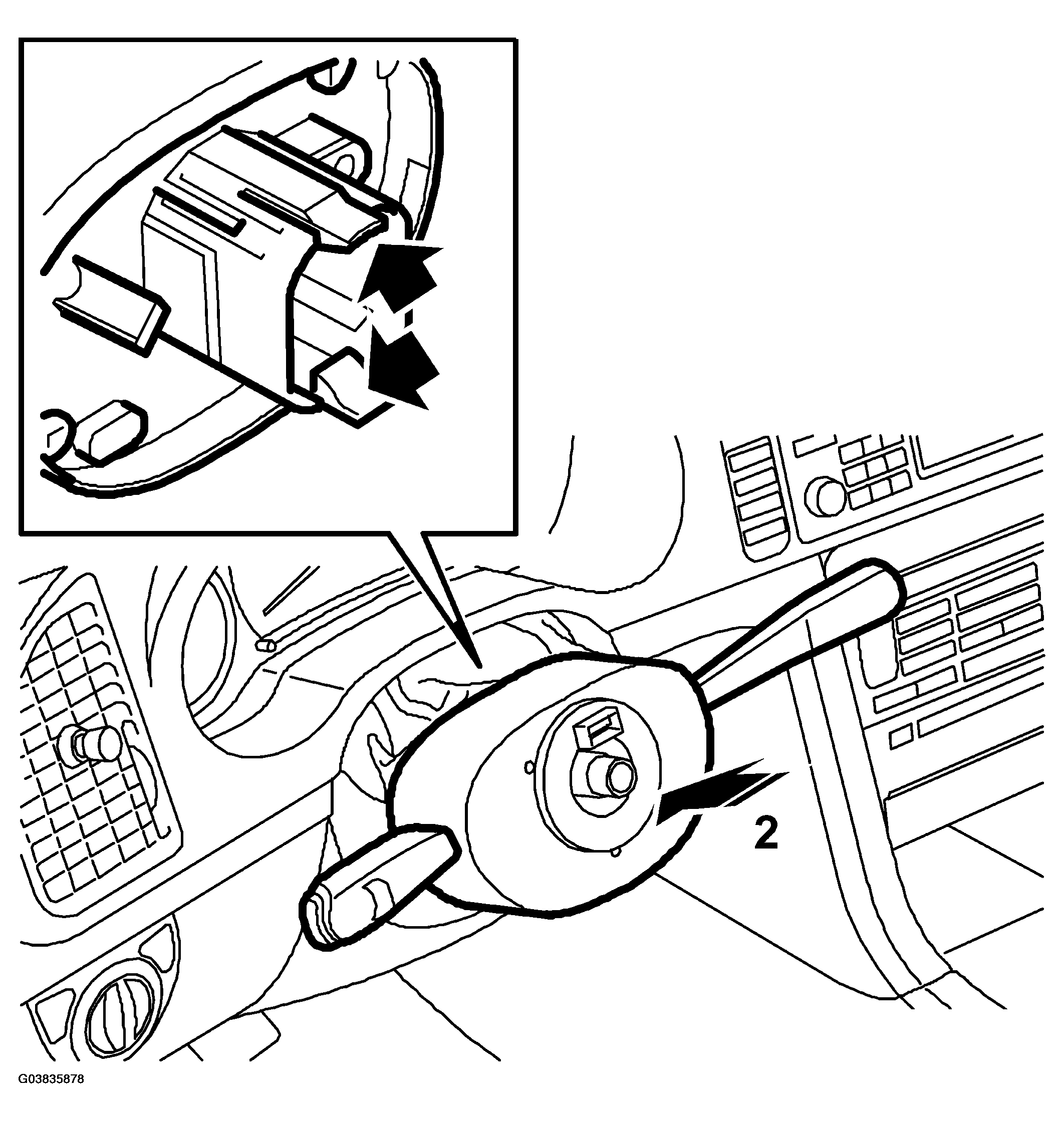

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the control module to the steering shaft.

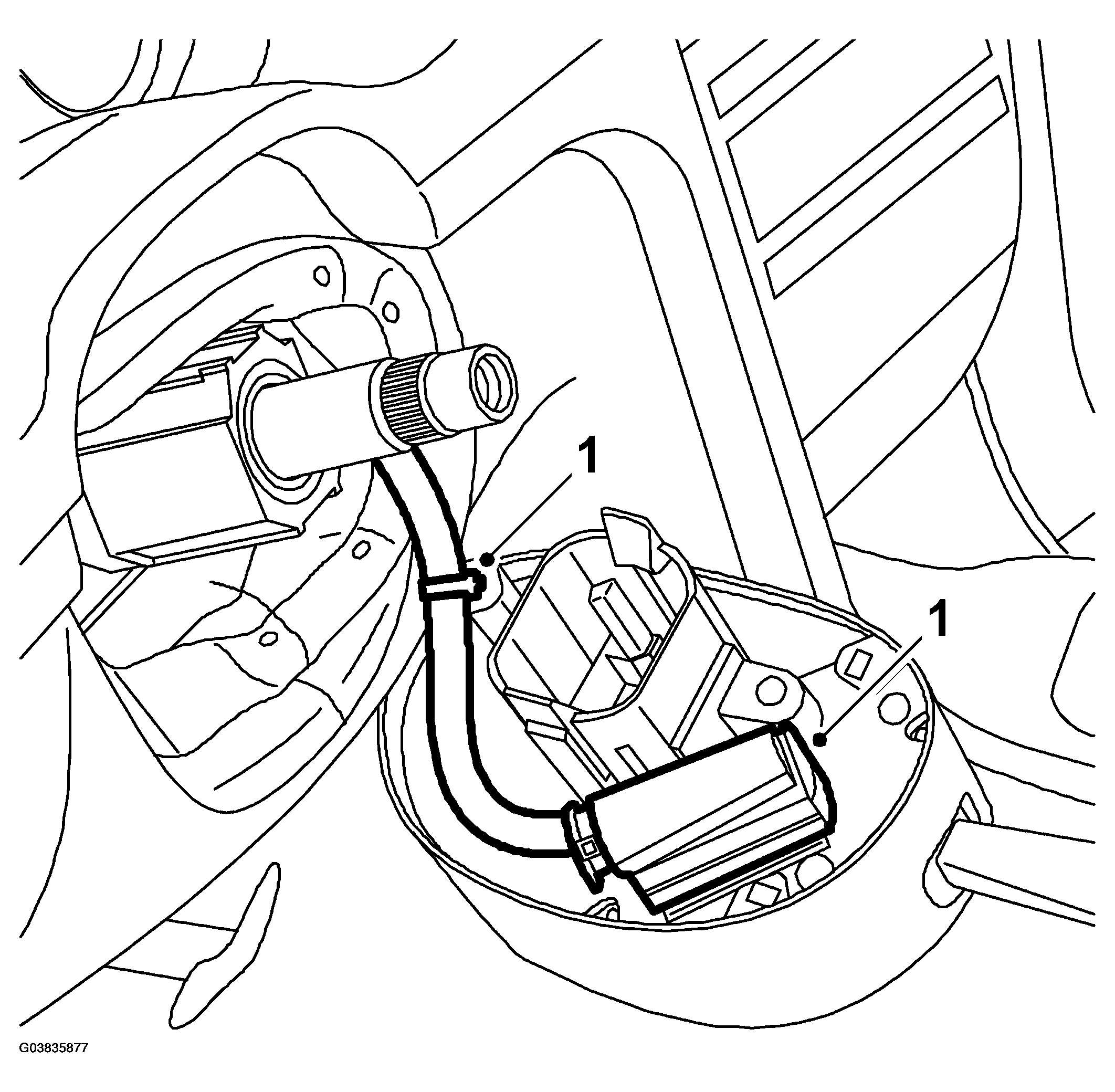

Fig 2: Installing Control Module To Steering Shaft
Courtesy of SAAB-SCANIA OF AMERICA, INC.

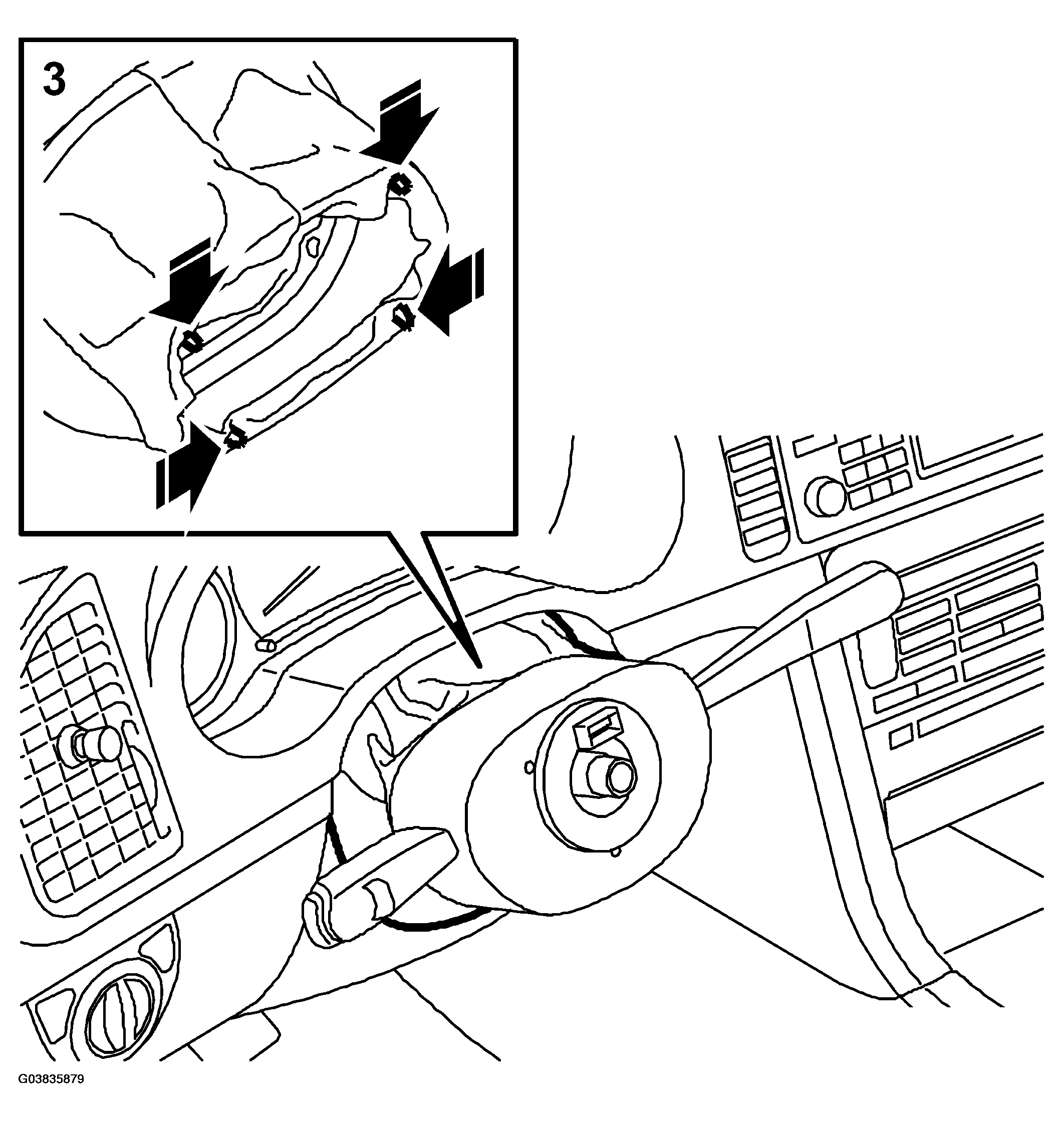

Fig 3: Installing Gaiter To Control Module

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fit the gaiter to the control module.
Fit the steering wheel.
Carry out Procedure After Changing The Control Module .
