To remove

  1. Remove SIDE PANEL, ELECTRICALLY ADJUSTABLE FRONT SEAT, 4D , Side panel, electrically adjustable front seat, convertible.
  2. Remove the controls using 2 x 82 93 474 REMOVAL TOOL . Fit the tools onto the sides of the controls and press in the clips. Lift away the controls.

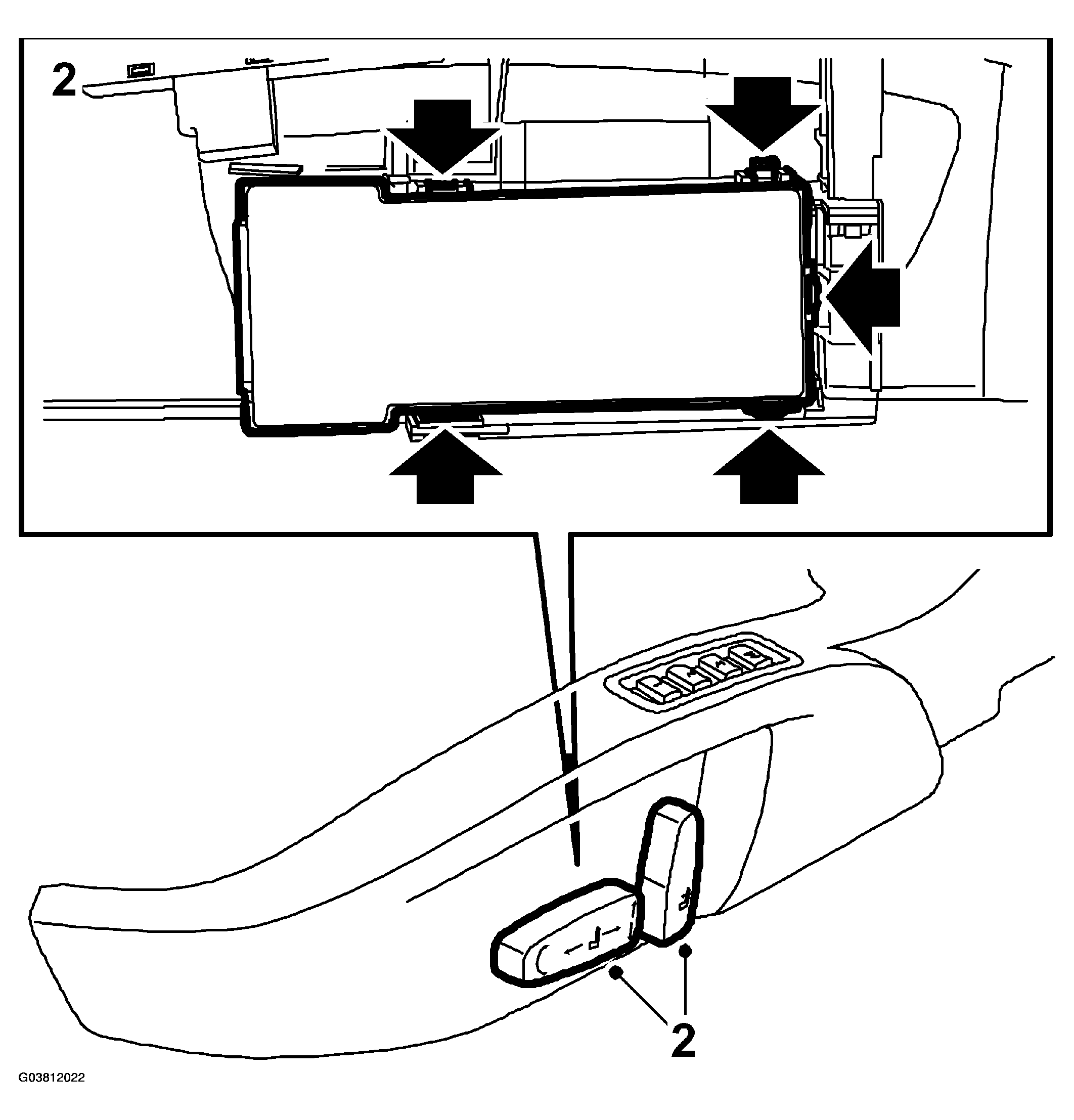

    Fig 1: Removing Controls
    G03812022Courtesy of SAAB-SCANIA OF AMERICA, INC.
