Piston rings

PISTON RINGS SPECIFICATION

B207E/B207L Upper compression ring mm Lower compression ring mm Oil scraper ring mm
Thickness 1.170 - 1.190 1.475 - 1.490 2.38 - 2.46
Play in groove 0.04 - 0.08 0.020 - 0.055 0.050 - 0.150
Cylinder gap 0.15 - 0.35 0.400 - 0.600 0.25 - 0.75
B207R
Thickness 1.170 - 1.195 1.470 - 1.495 2.38 - 2.46
Play in groove 0.035 - 0.08 0.015 - 0.060 0.050 - 0.150
Cylinder gap 0.15 - 0.35 0.400 - 0.600 0.25 - 0.75

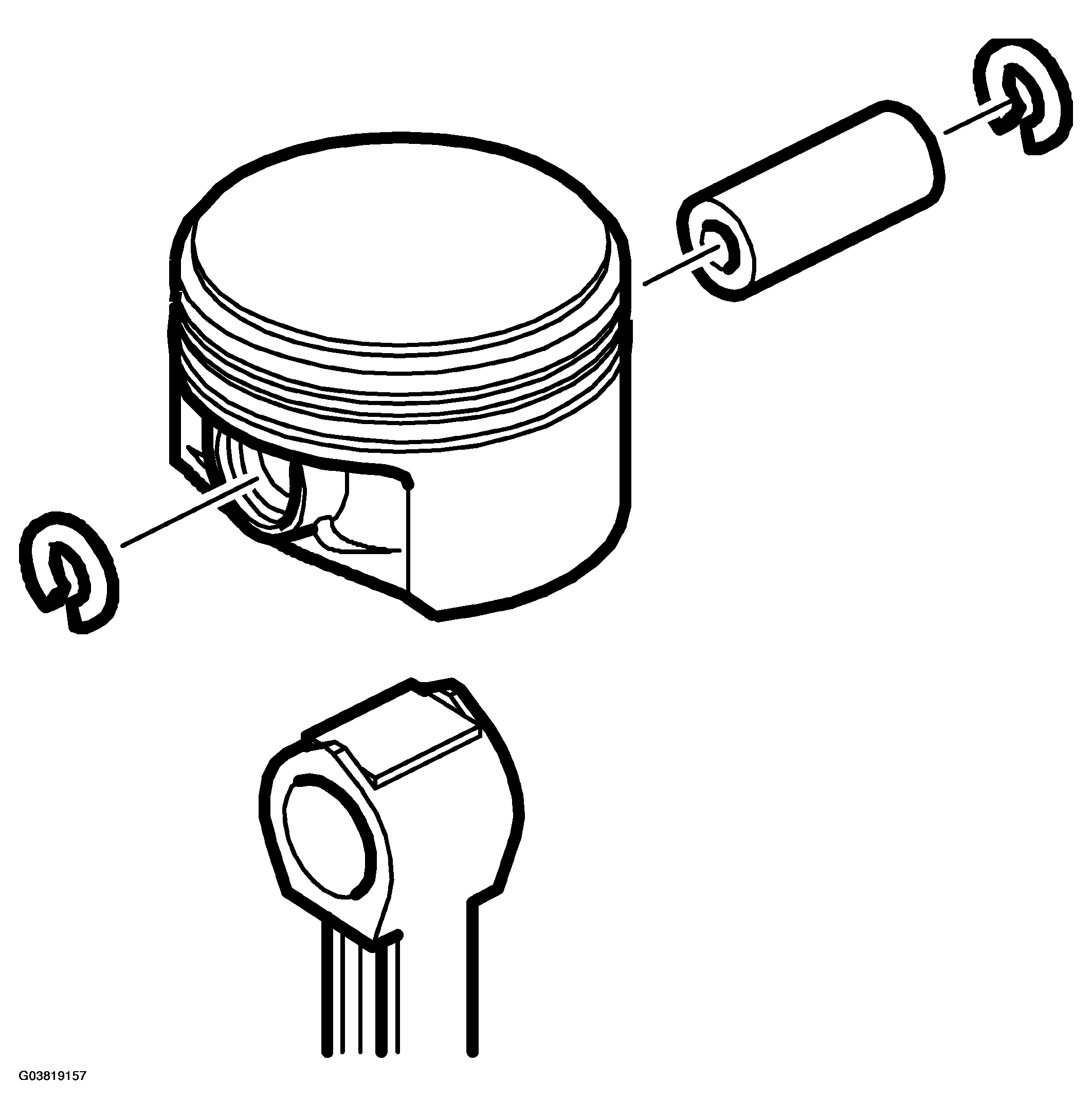

Fig 1: Identifying Piston Pin
G03819157Courtesy of SAAB-SCANIA OF AMERICA, INC.
