To remove

  1. Place drapes over the wings to keep the paintwork clean and protect it from damage. Raise the car.
  2. CV:  Remove the cross brace. See CHASSIS REINFORCEMENT, FRONT SUBFRAME, CV .
  3. Fit 83 96 152 CENTERING TOOL, POWER TRAIN  on the subframe. See also 83 96 145 CENTERING FIXTURE, SUBFRAME - ENGINE .

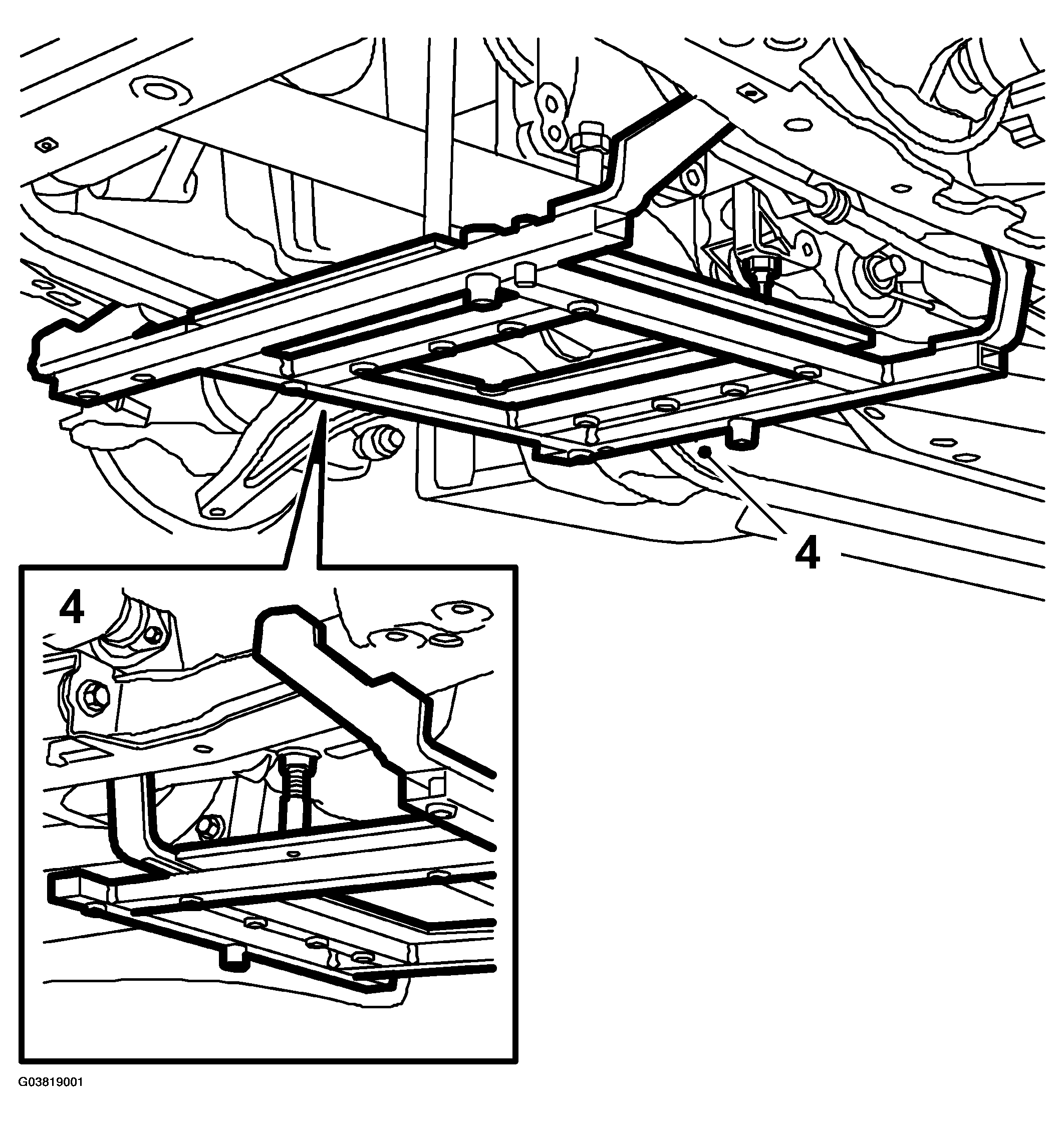

    Fig 1: Illustration For Step 4
    G03819001Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Lower the car.
  5. Remove the battery.

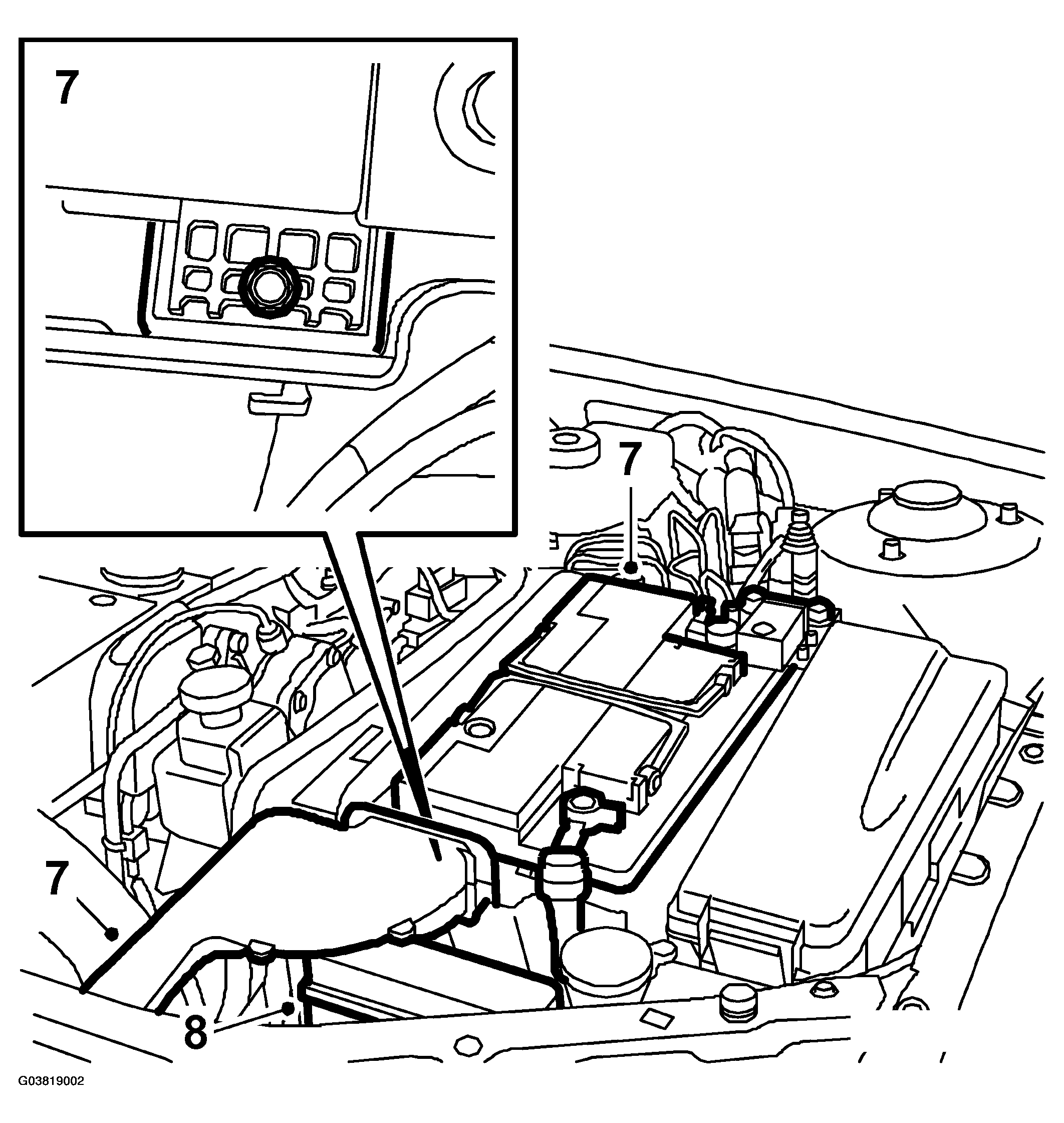

    Fig 2: Illustration For Step 7
    G03819002Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the battery tray.
  7. Remove the ground cable from the engine mounting.

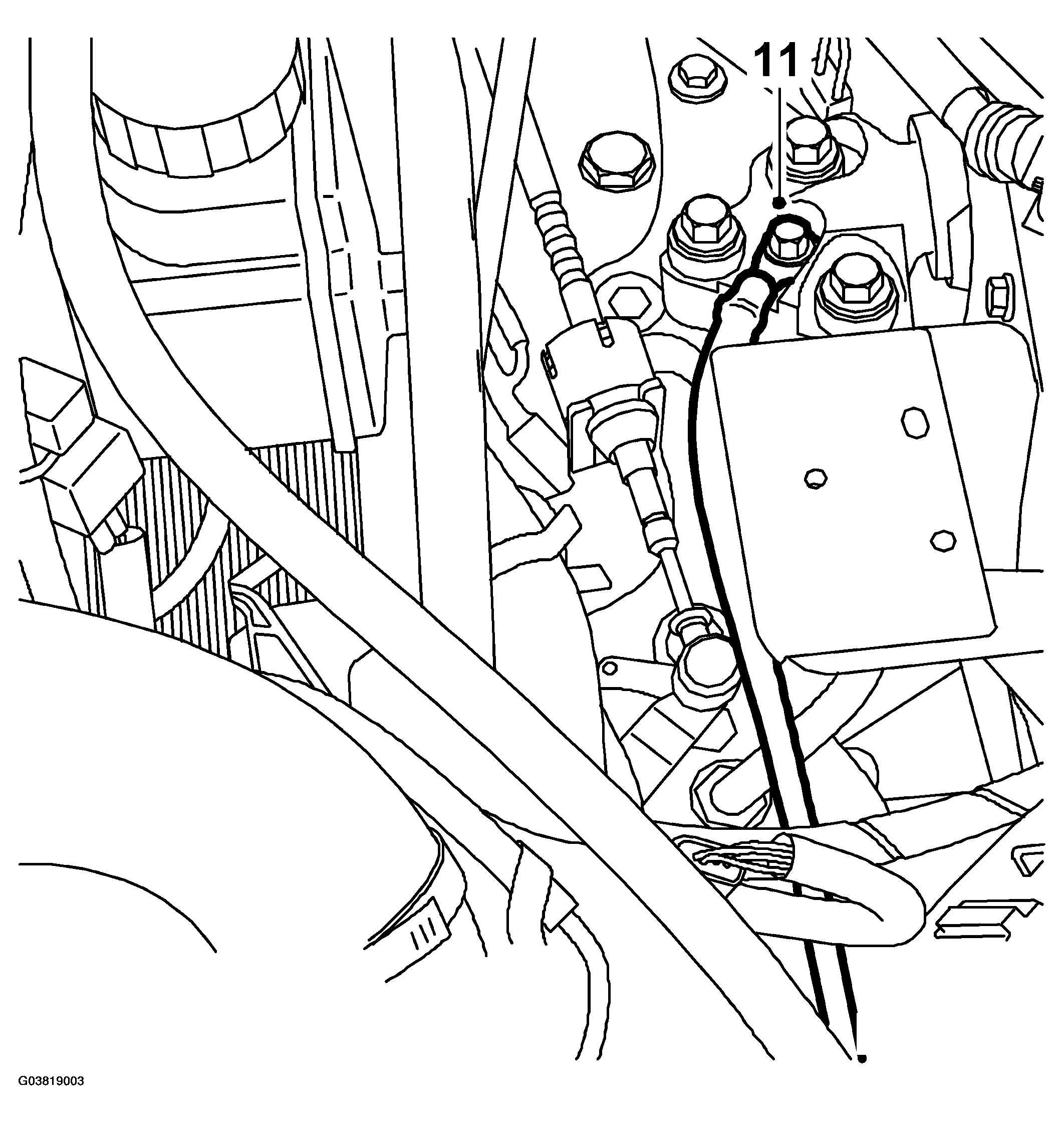

    Fig 3: Illustration For Step 11
    G03819003Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Remove the engine pad bolts from the gearbox bracket.

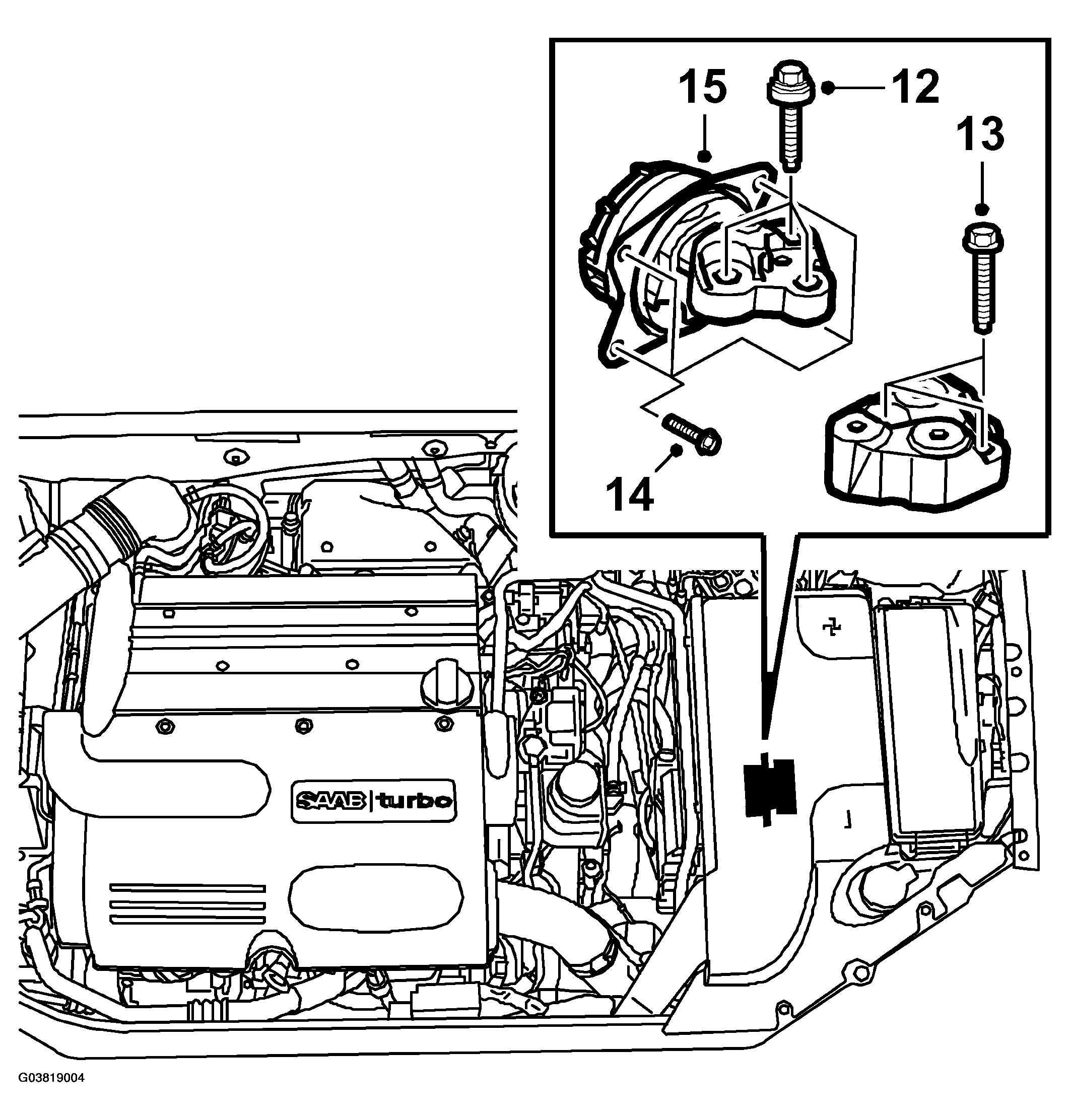

    Fig 4: Illustration For Step 12-15
    G03819004Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Remove the bolts in the gearbox bracket. Lift out the bracket.
  10. Remove the engine pad bolts from the body.
  11. Remove the engine pad.
