To fit

  1. Plug in the gyro sensor.

    Tightening torque: 10 Nm (7.5 lbf ft)

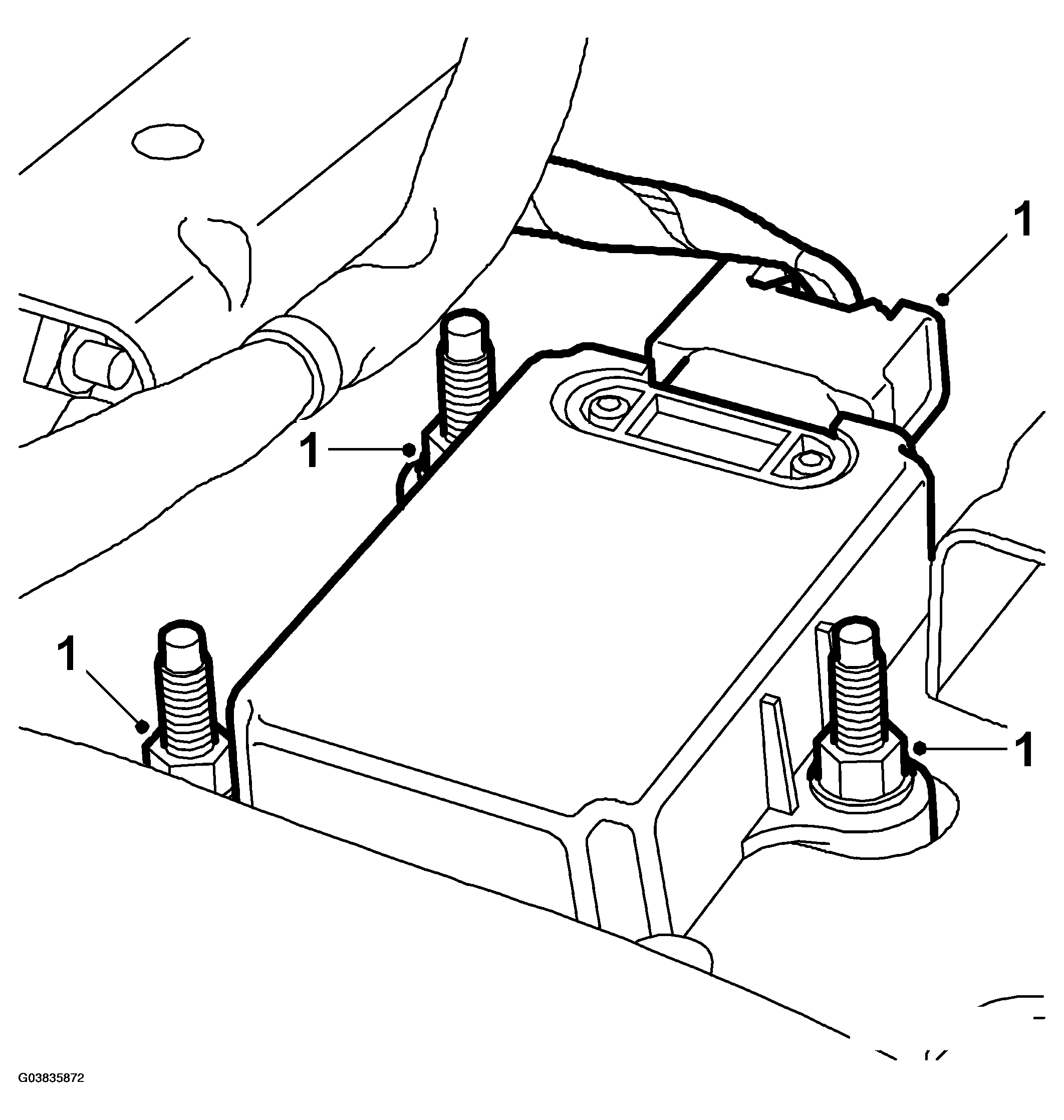

    Fig 1: Illustration For Step 1
    G03835872Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the console. Make sure the front bolts align with the markings.

    Tightening torque: 10 Nm (7.5 lbf ft)

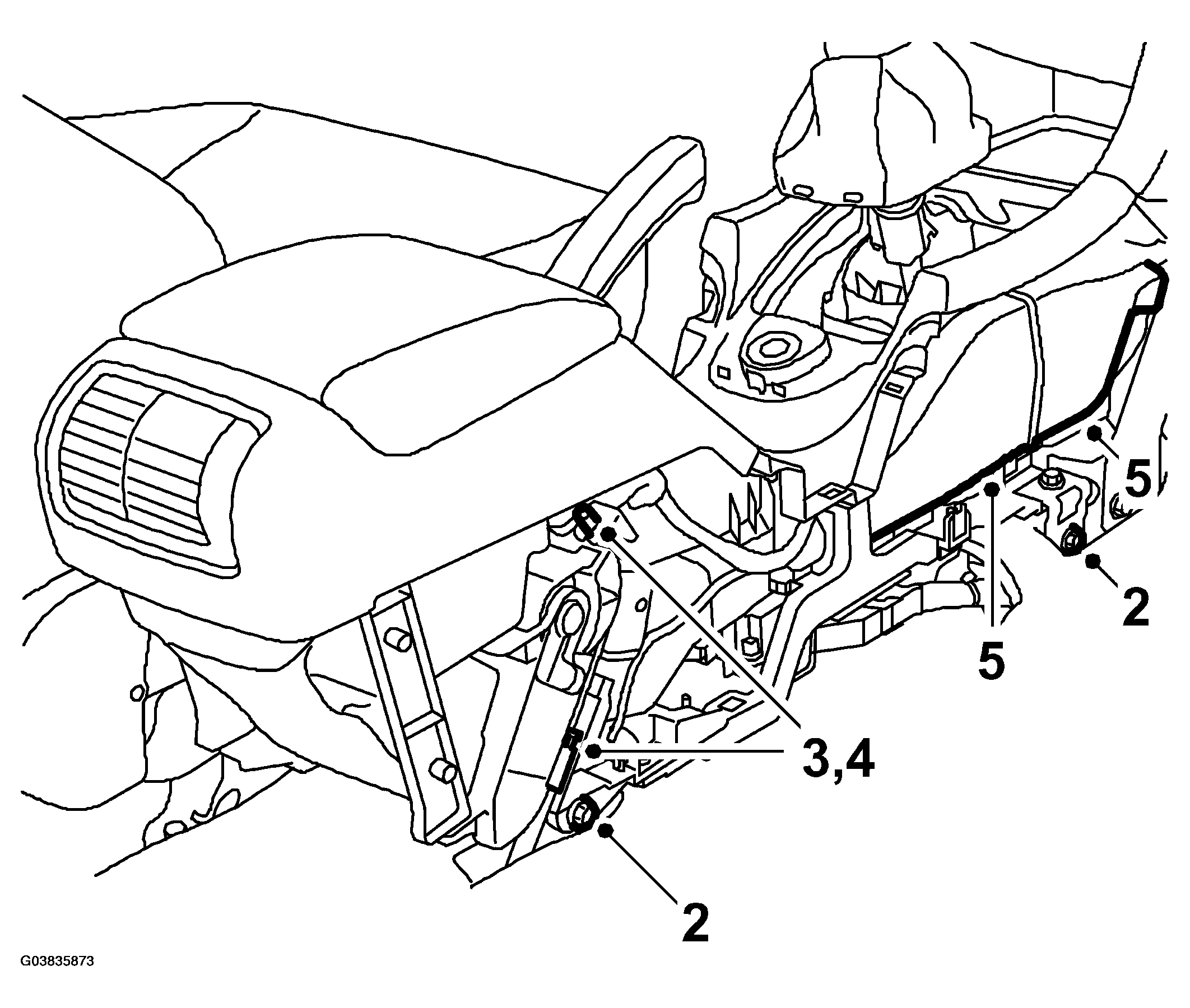

    Fig 2: Illustration For Steps 2-5
    G03835873Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Connect the brake cables.
  4. Adjust the cables.
  5. Fit the air ducts.
  6. Fit the floor console.
