Transfer Driven Gear: Adjustment/Replacement: Installation

Install the bearing outer race to extension case and transfer case.

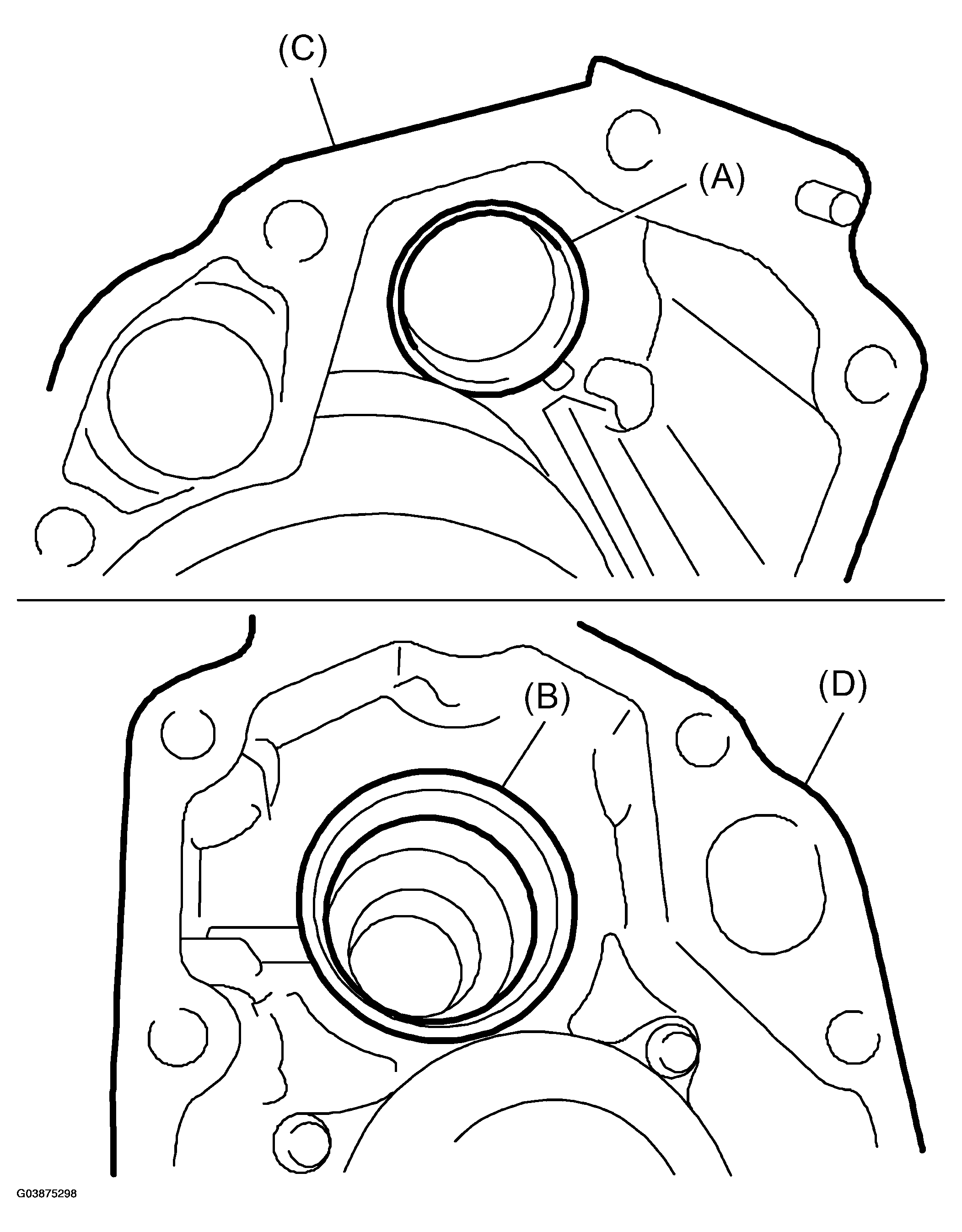

Fig 1: Installing Bearing Outer Race To Extension Case And Transfer Case

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Bearing outer race
2. Bearing outer race
3. Transfer case
4. Extension case

Install the transfer driven gear.

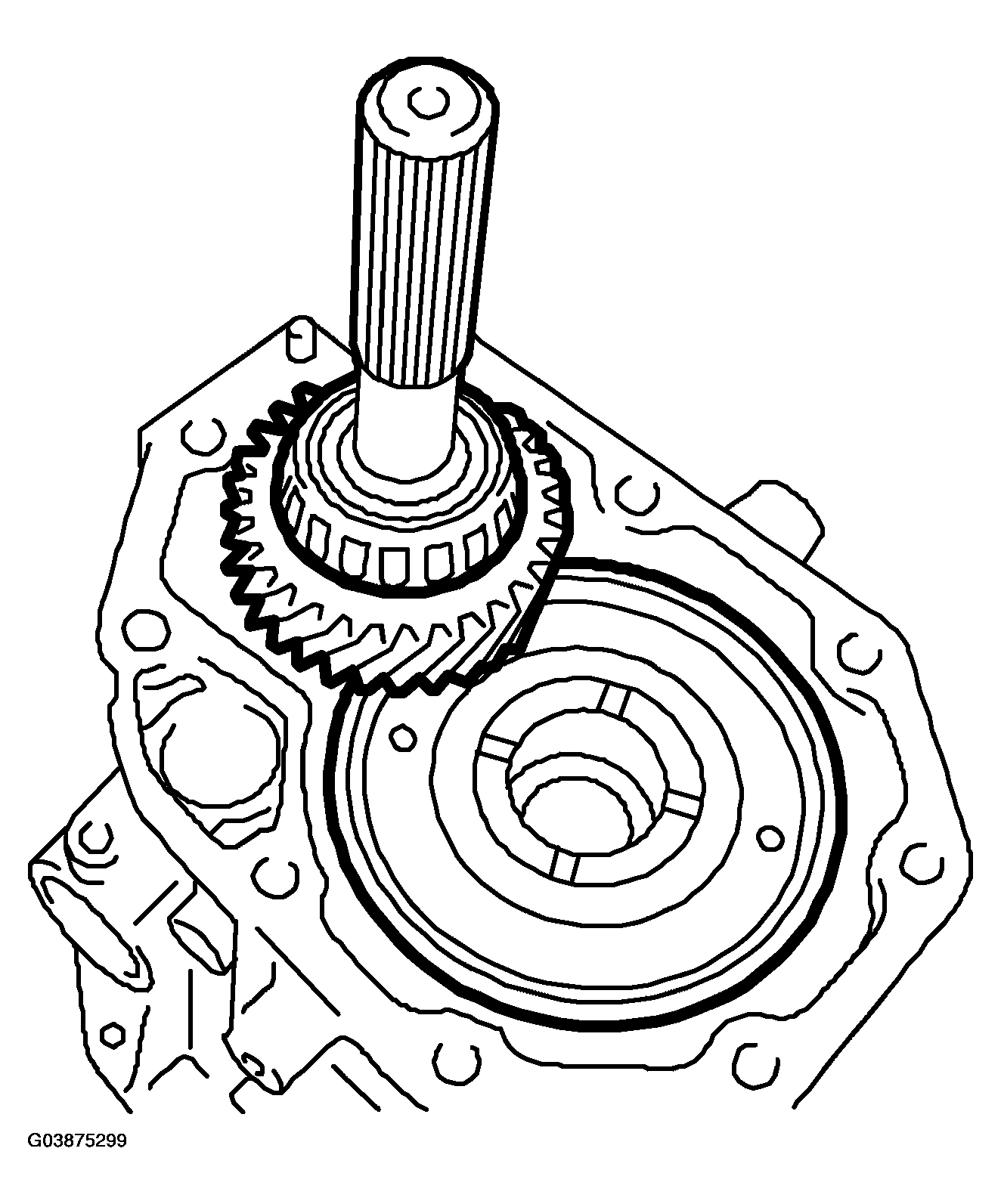

Fig 2: Installing Transfer Driven Gear

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the transfer case and extension case assembly.

Install the back-up light switch and neutral position switch.

Install the manual transmission assembly to vehicle.
