Transfer Driven Gear: Adjustment/Replacement: Disassembly

Using the ST, remove the roller bearing (extension case side).

ST 32005088 REMOVER

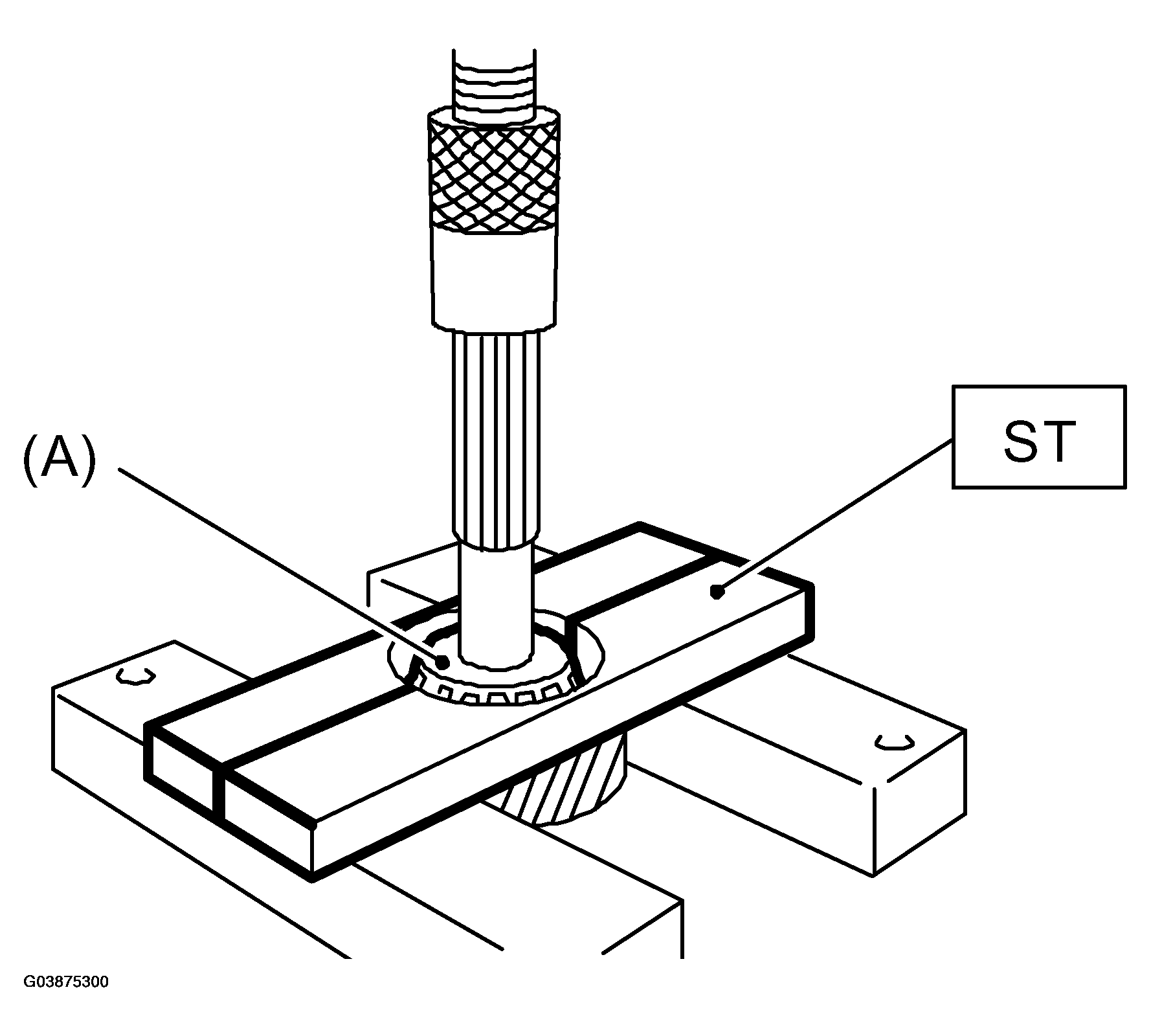

Fig 1: Removing Roller Bearing

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Roller bearing

Using the ST1 and ST2, remove the roller bearing (transfer case side).

ST1 32005088 REMOVER

ST2 32005178 REMOVER

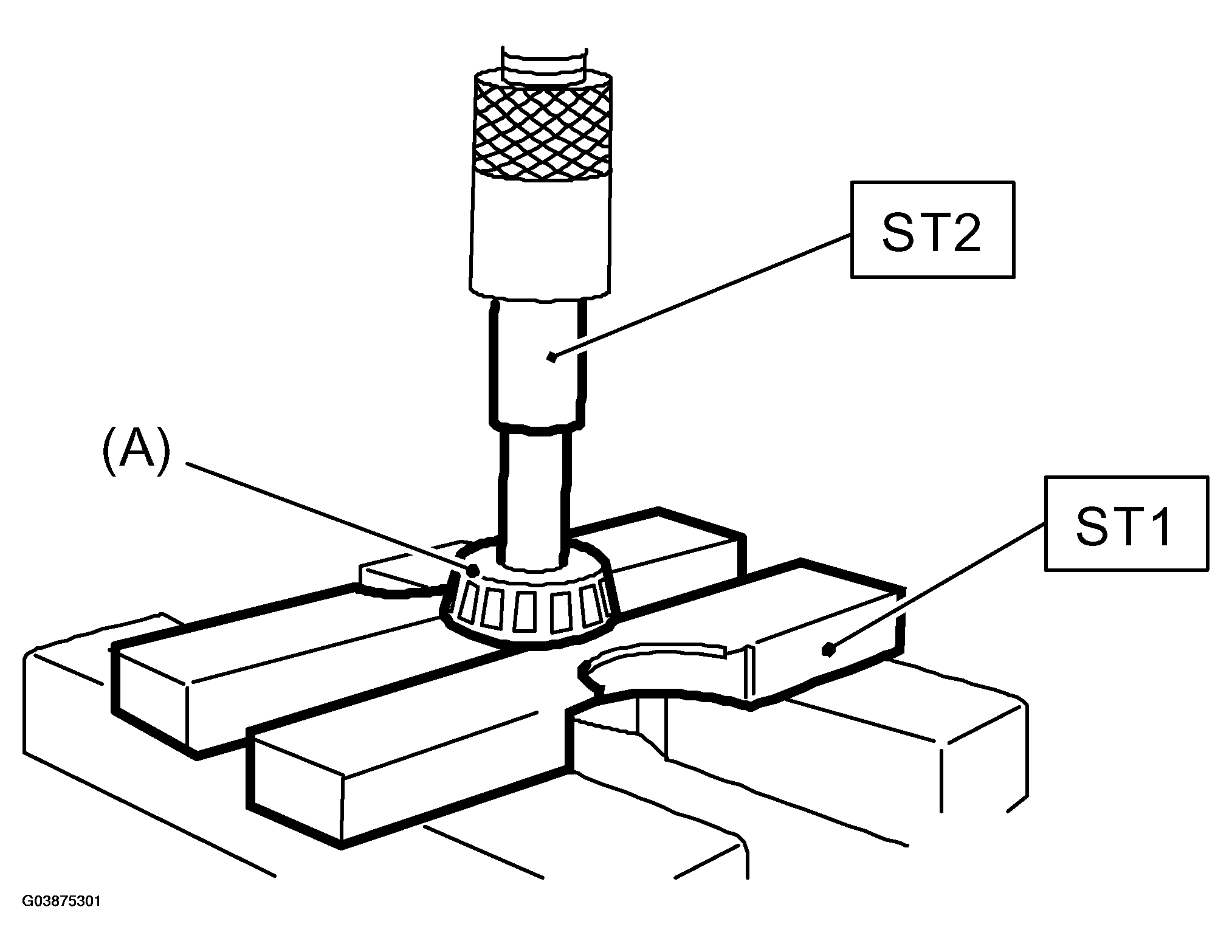

Fig 2: Removing Roller Bearing (Transfer Case Side)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Roller bearing
