Transfer Driven Gear: Adjustment/Replacement: Assembly

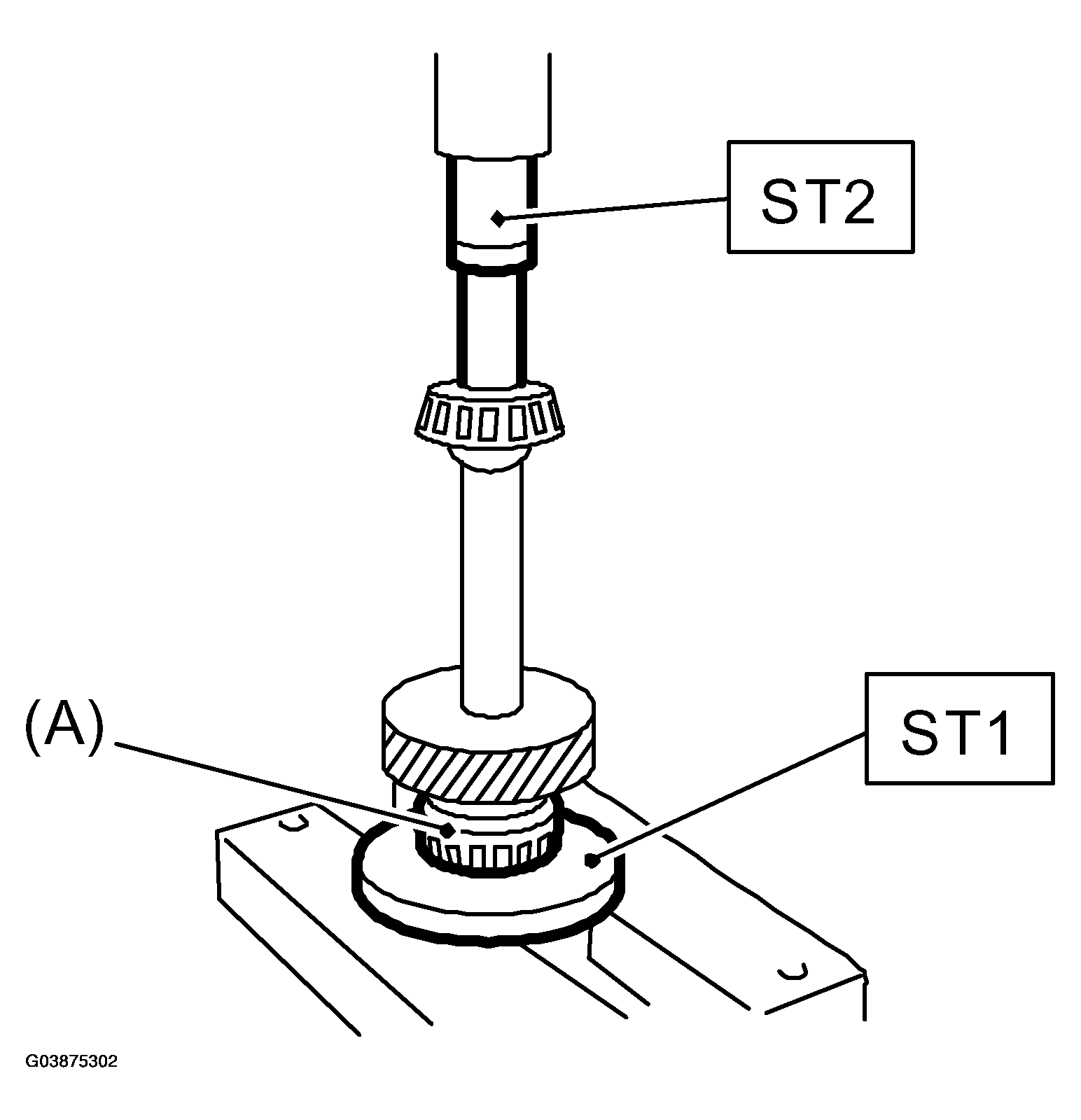

Using the ST, install the roller bearing (extension case side).

ST1 32005054 INSTALLER

ST2 32005178 REMOVER

NOTE: Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton)

Fig 1: Installing Roller Bearing (Extension Case Side)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

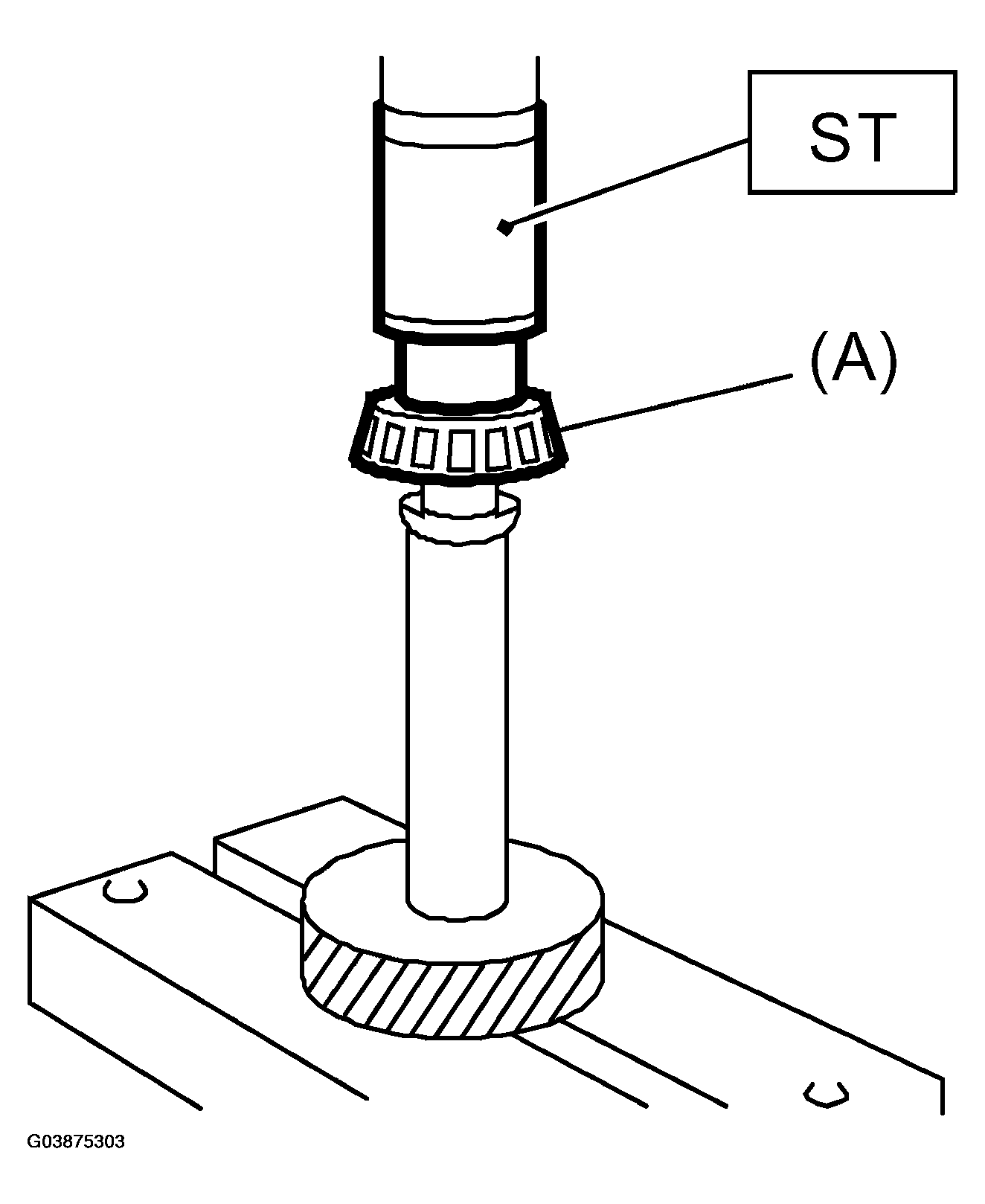

Using the ST, install the roller bearing (transfer case side).

ST 32005147 INSTALLER

NOTE: Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton)

Fig 2: Installing Roller Bearing (Transfer Case Side)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
