Transfer Drive Gear: Adjustment/Replacement: Installation

Install the transfer drive gear.

Tightening torque:

26 Nm (2.7 kgf-m, 20 ft-lb)

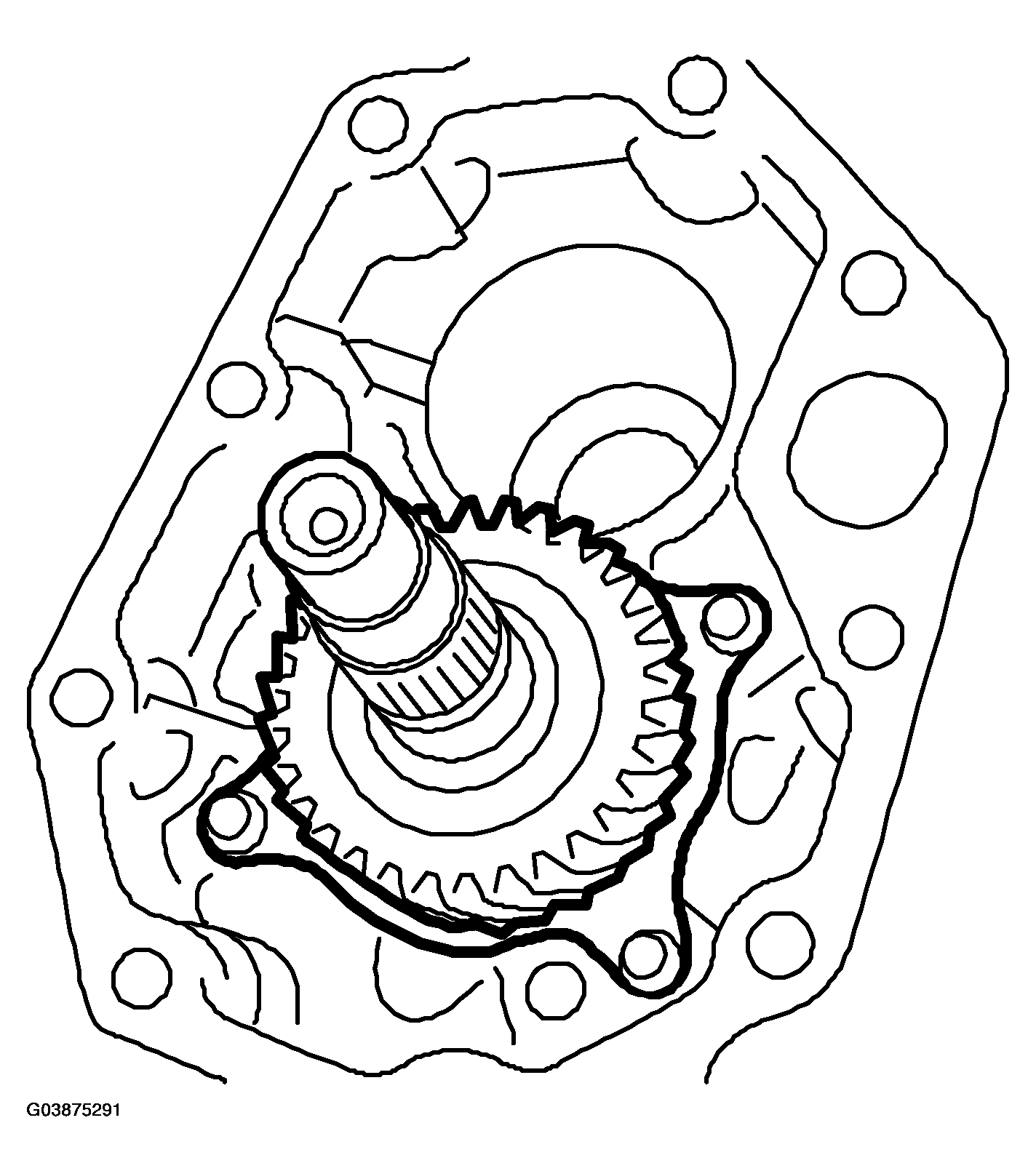

Fig 1: Installing Transfer Drive Gear

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the transfer driven gear.

Install the extension case assembly.

Install the transfer case and extension case assembly.

Install the back-up light switch and neutral position switch.

Install the manual transmission assembly from vehicle.
