Transfer Drive Gear: Adjustment/Replacement: Assembly

Set the ST applying to inner race of bearing and install to drive shaft.

ST 32005054 INSTALLER

NOTE: Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton)

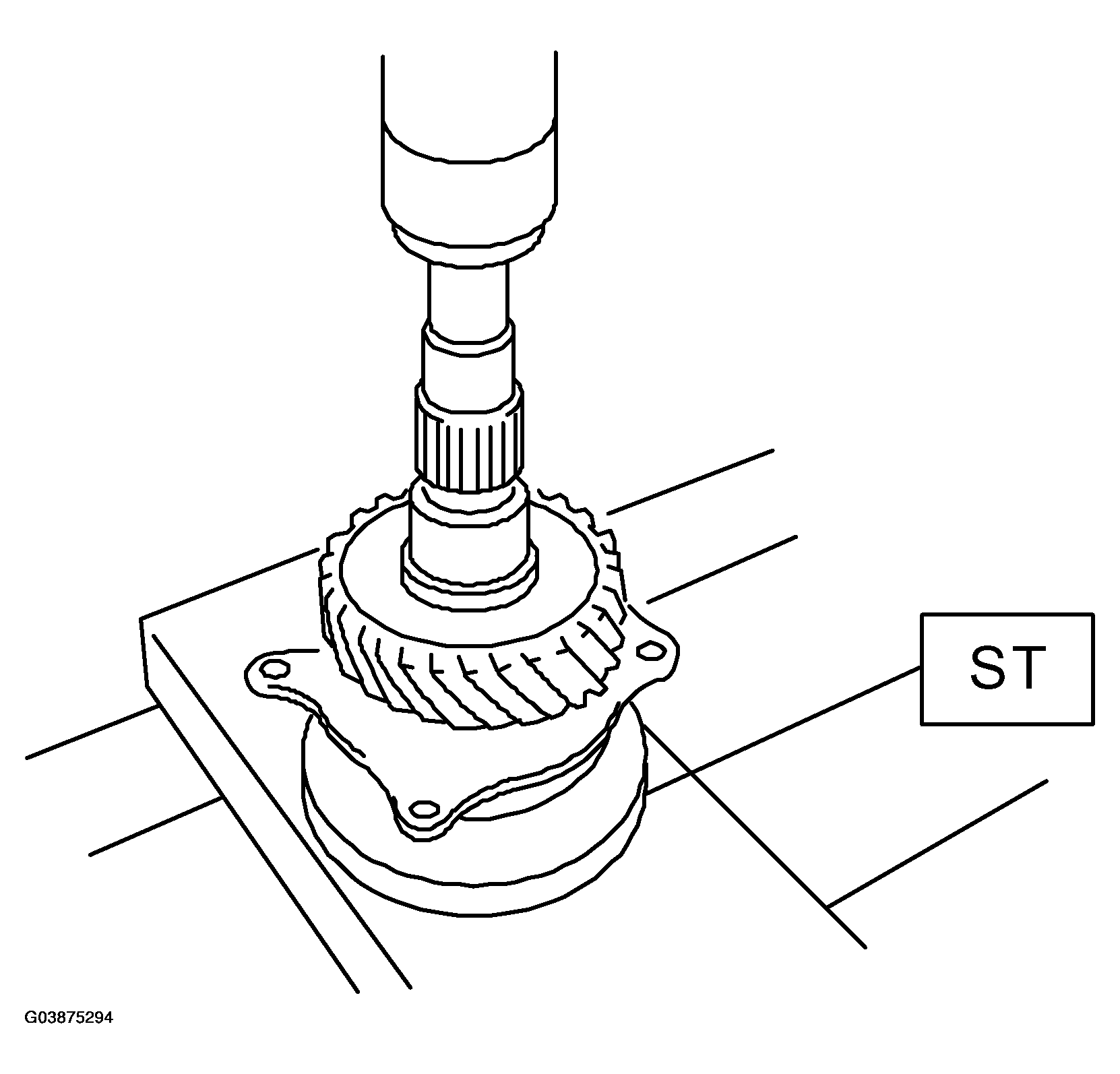

Fig 1: Setting ST

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the snap ring on transfer drive shaft.

Check the clearance between snap ring and ball bearing.
