Transfer Case

Install the oil guide to transfer case.

Tightening torque:

6.4 Nm (0.65 kgf-m, 4.7 ft-lb)

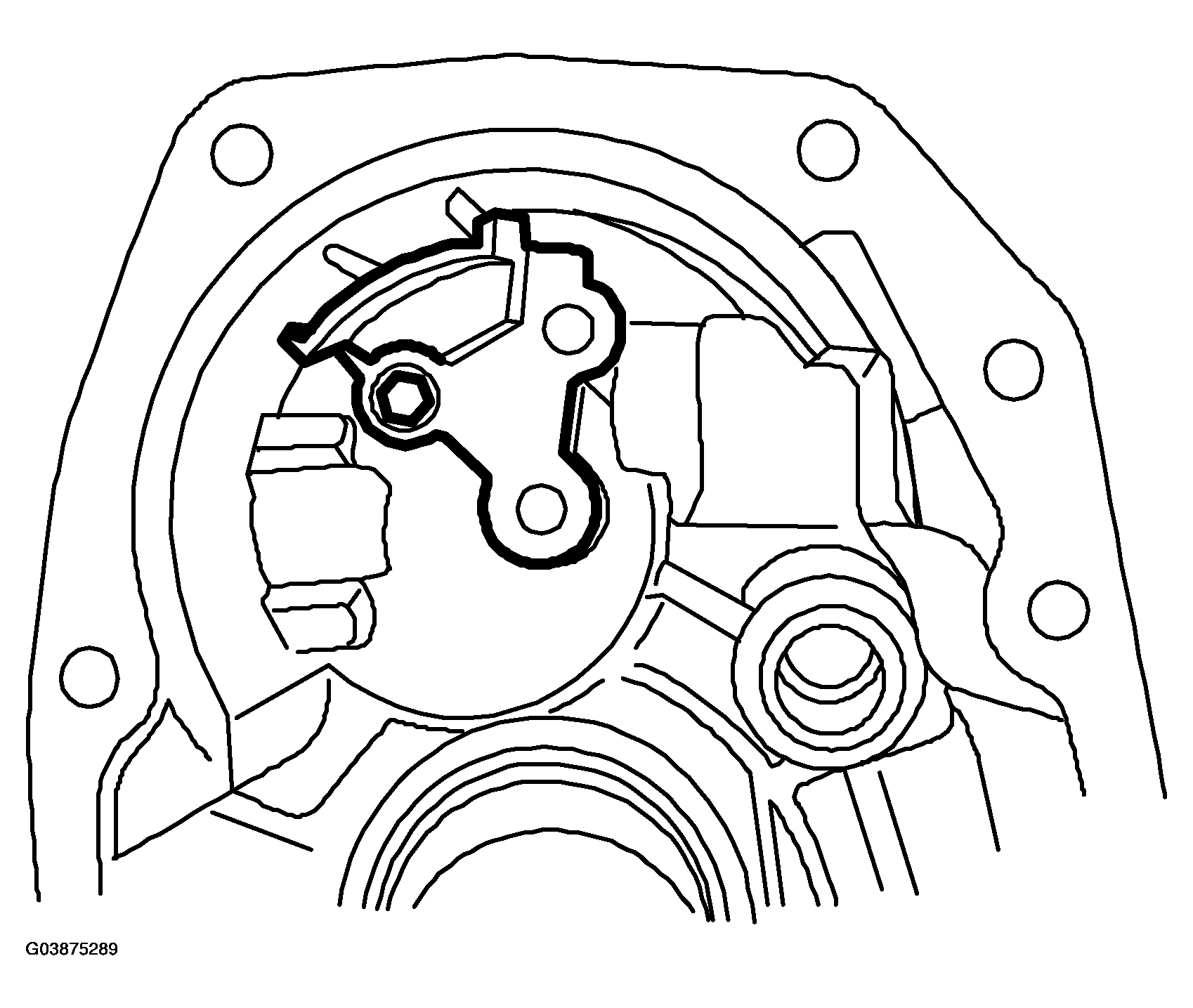

Fig 1: Installing Oil Guide To Transfer Case

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the reverse check sleeve assembly to transfer case.
