Extension Case

Using the ST, install the oil seal to extension case.

NOTE: Use a new oil seal.

Install the shift bracket to extension case.

Tightening torque:

24.5 Nm (2.5 kgf-m, 18.1 ft-lb)

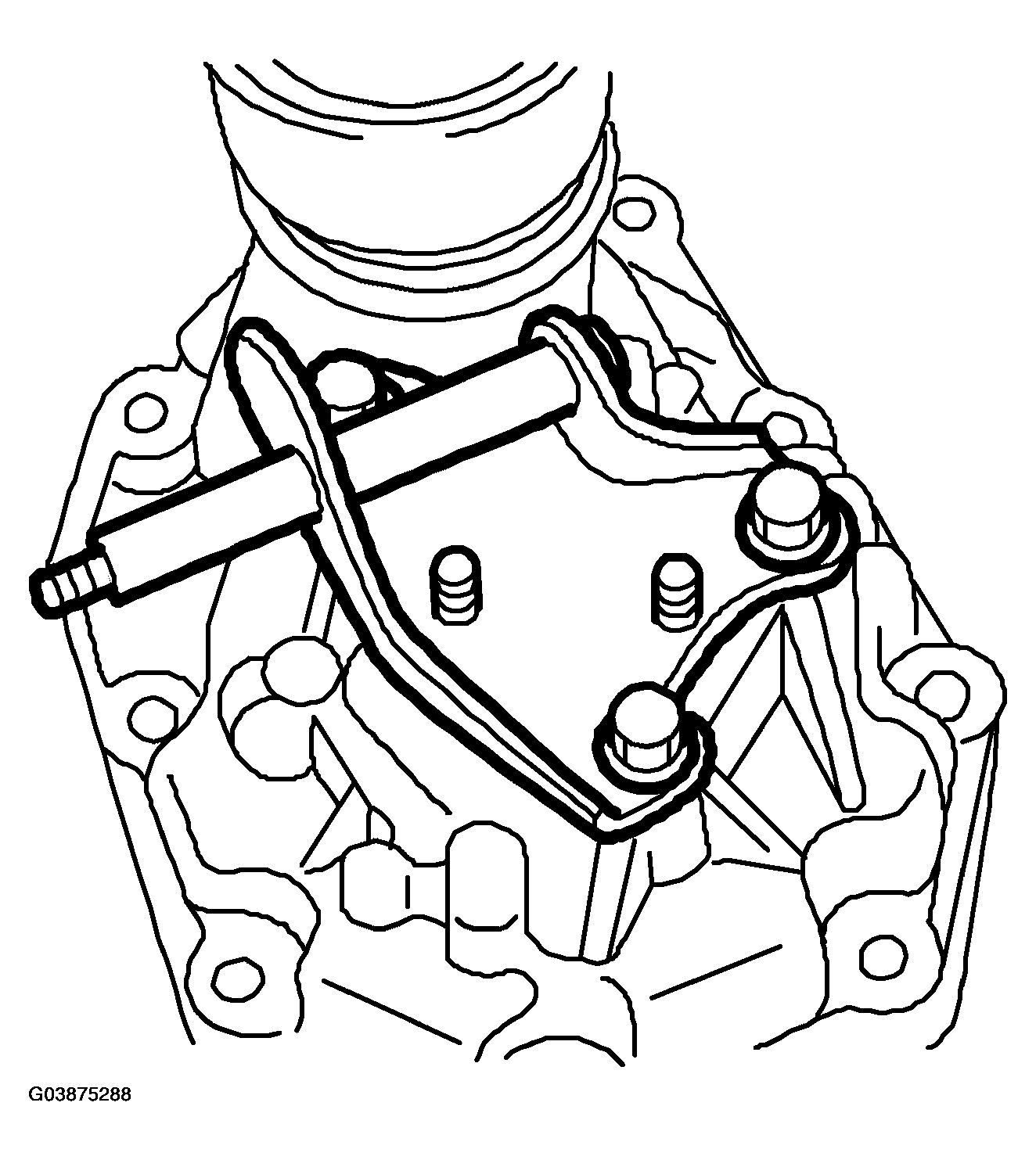

Fig 1: Installing Shift Bracket To Extension Case

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the transfer drive gear to extension case.
