Reverse Check Sleeve: Adjustment/Replacement: Installation

Install the reverse check sleeve.

Tightening torque:

6.4 Nm (0.65 kgf-m, 4.7 ft-lb)

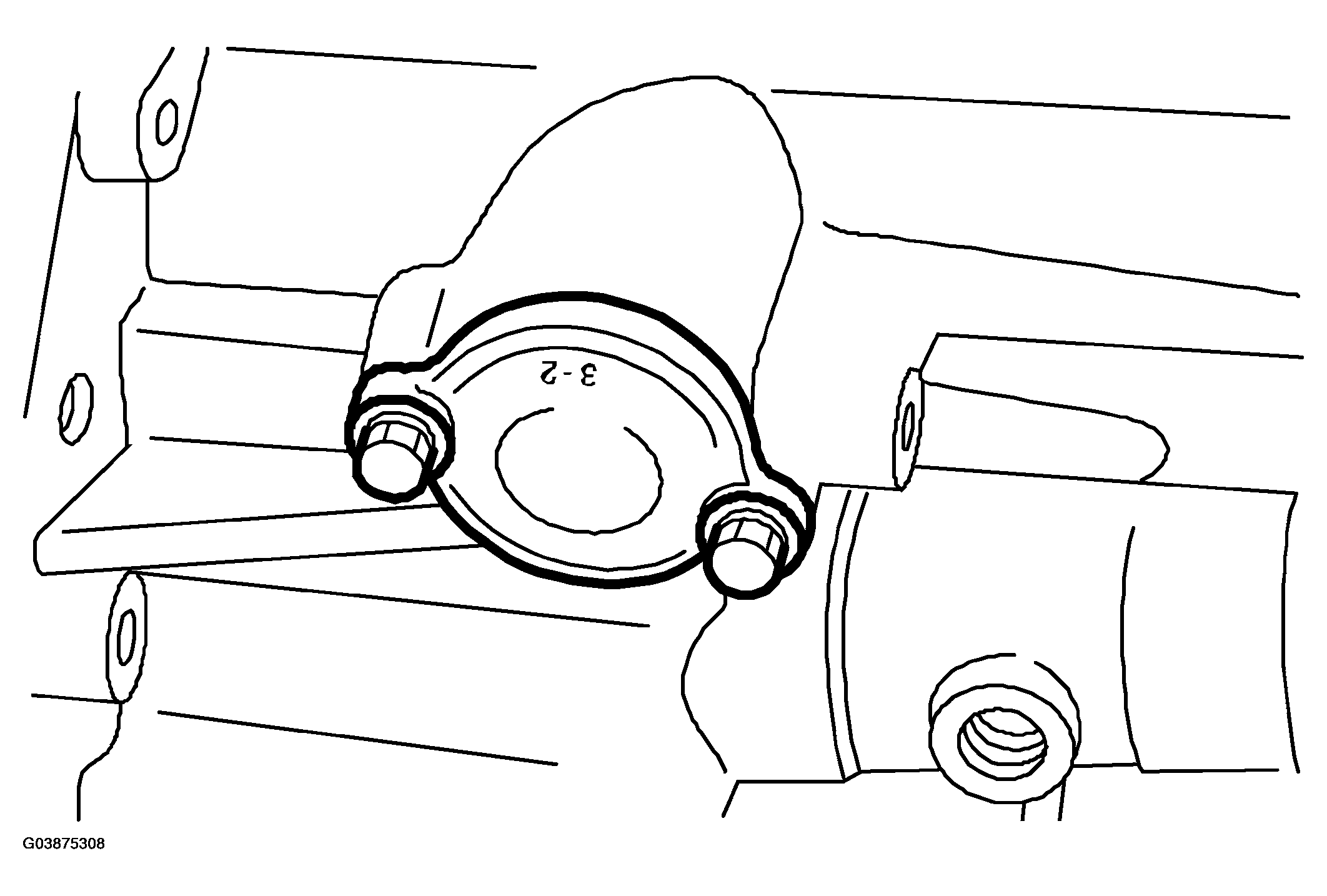

Fig 1: Installing Reverse Check Sleeve

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the ball, spring, washer and plug to transfer case.

Tightening torque:

9.75 Nm (1.0 kgf-m, 7.2 ft-lb)

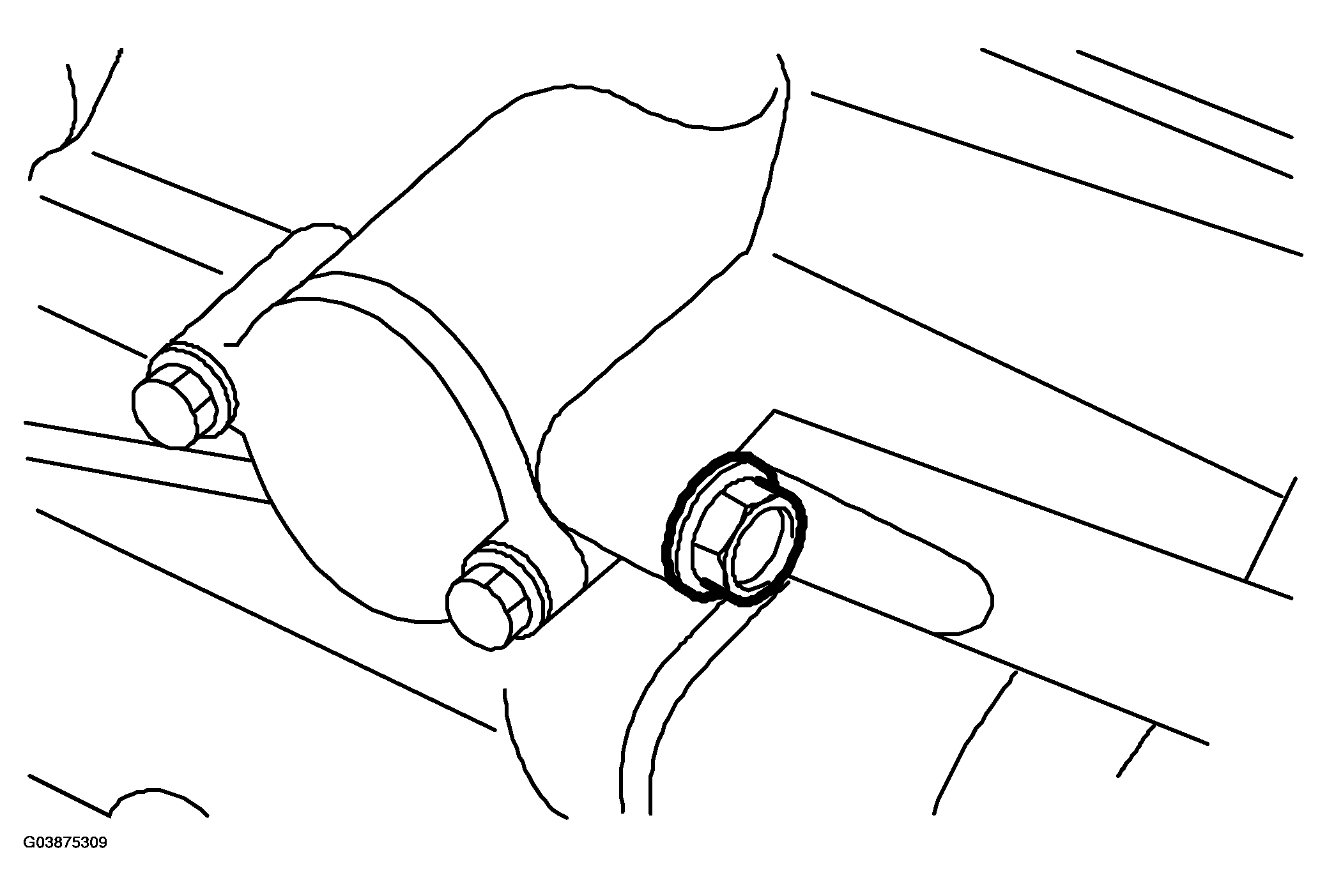

Fig 2: Installing Ball, Spring, Washer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the shifter arm to transfer case assembly.

Install the transfer case with extension case assembly.

Install the manual transmission assembly to vehicle.
