Reverse Check Sleeve: Adjustment/Replacement: Disassembly

Cover the reverse check sleeve with a rag, and remove the snap ring using a screwdriver.

NOTE: Replace the snap ring with a new one if deformed or weakened.

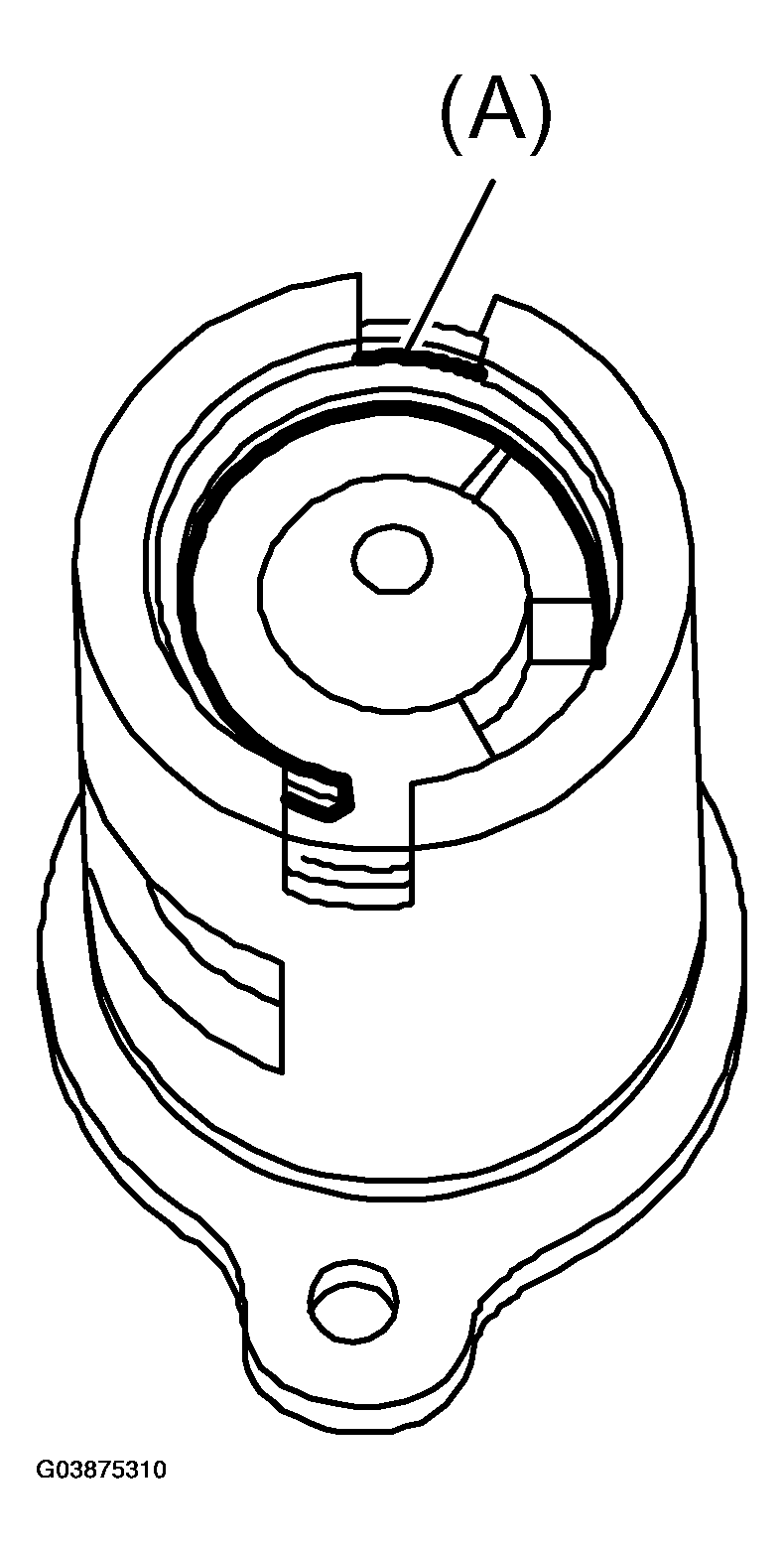

Fig 1: Removing Snap Ring

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Snap ring

Remove the reverse check plate, reverse check spring, reverse check cam, return spring (5th- Rev), reverse accent shaft, return spring cap and return spring (1st-2nd).

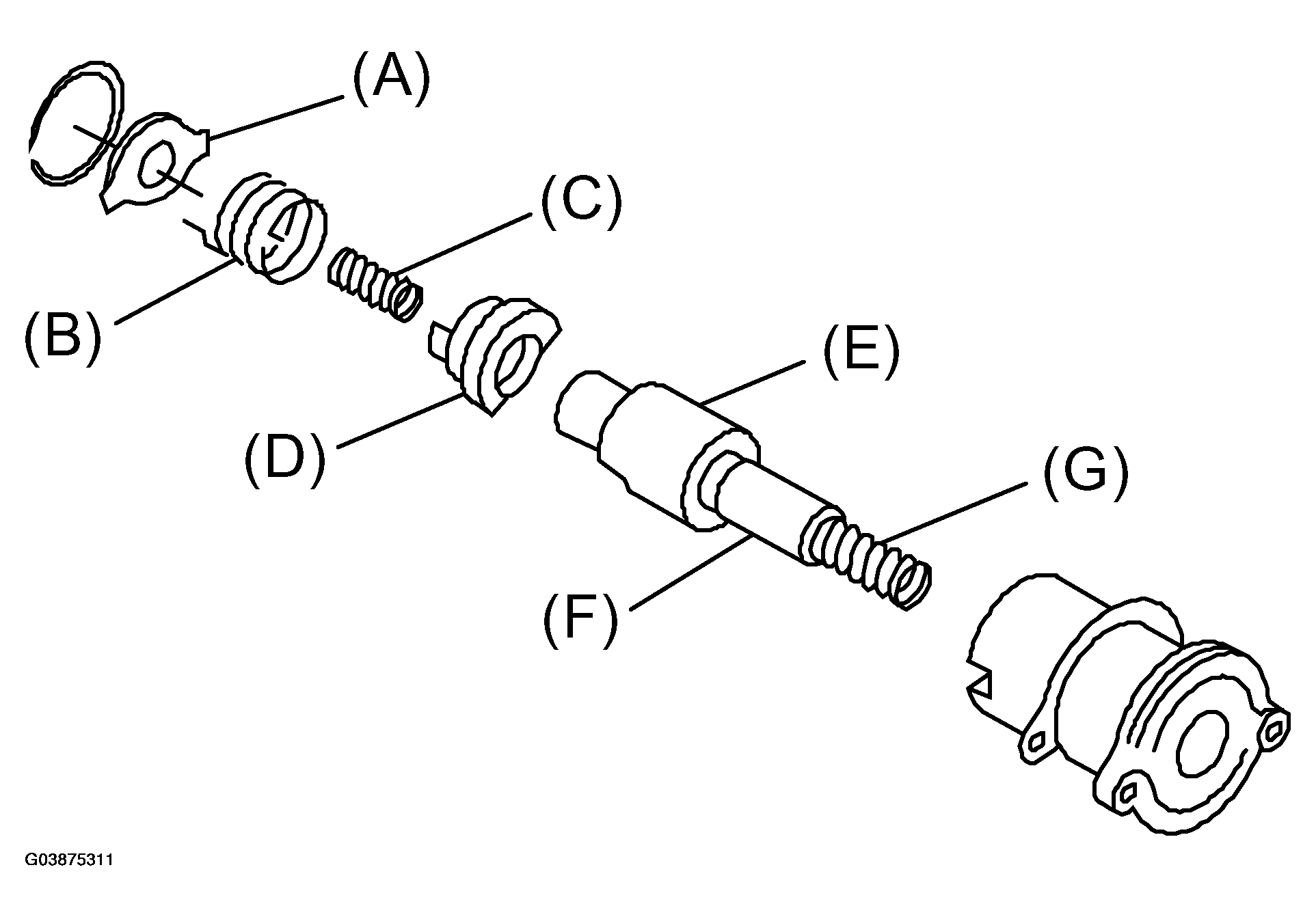

Fig 2: Removing Reverse Check Plate

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Reverse check plate
Reverse check spring
Return spring (5th-Rev)
Reverse check cam
Reverse accent shaft
Return spring cap
Return spring (1st-2nd)

Remove the O-ring.

NOTE:

Reverse check sleeve assembly uses an O-ring which should not be scratched.
Be careful not to break the adjusting shim placed between reverse check sleeve assembly and case.
