Preparation For Overhaul: Procedure

Clean oil, grease, dirt and dust from transmission.

Remove the drain plug to drain oil. After draining, retighten it as before.

NOTE: Replace the gasket with a new one.

Tightening torque:

69 Nm (7.0 kgf-m, 50.6 ft-lb)

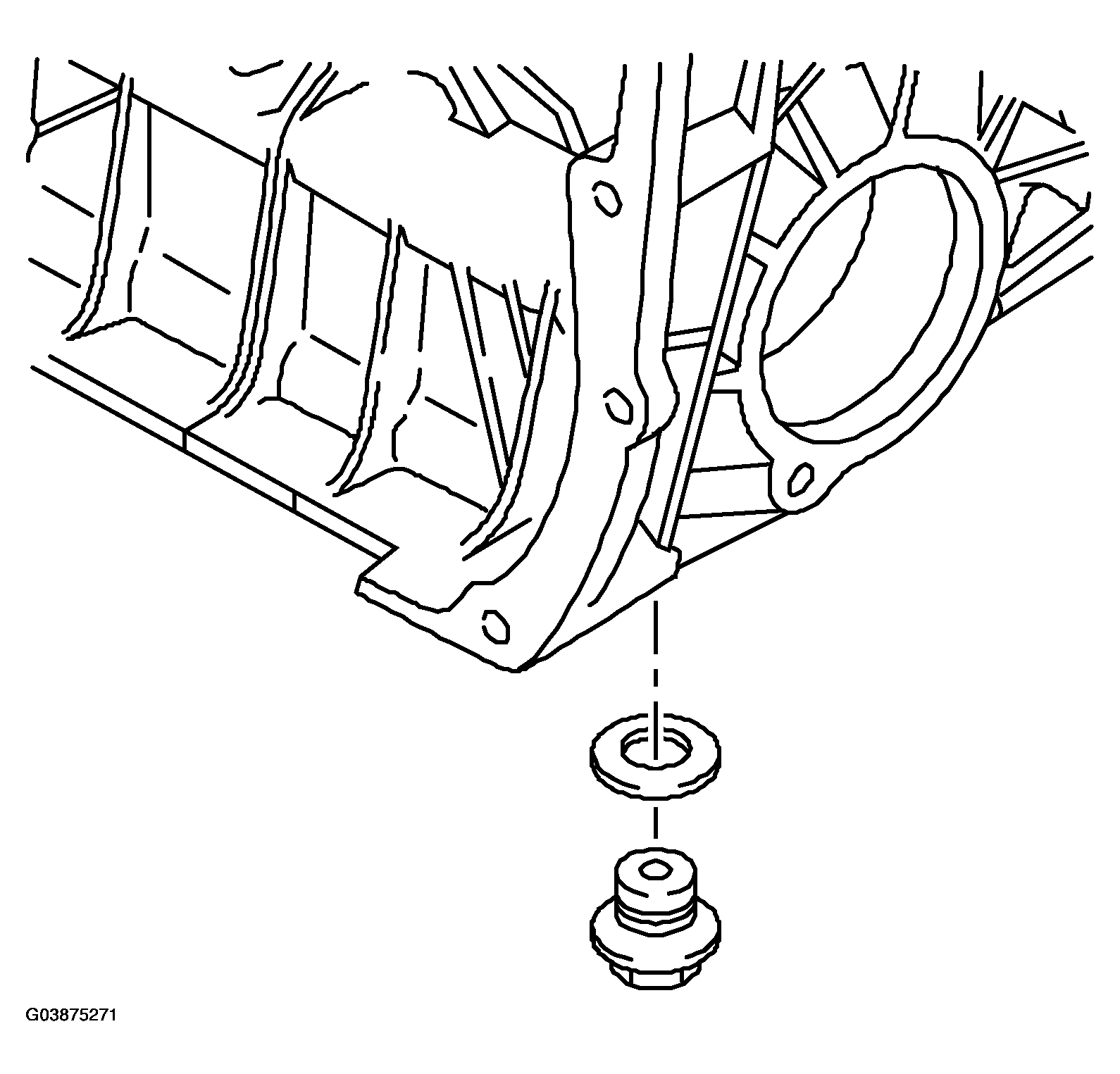

Fig 1: Removing Drain Plug

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Attach the transmission to ST.

ST 32005162 TRANSMISSION STAND

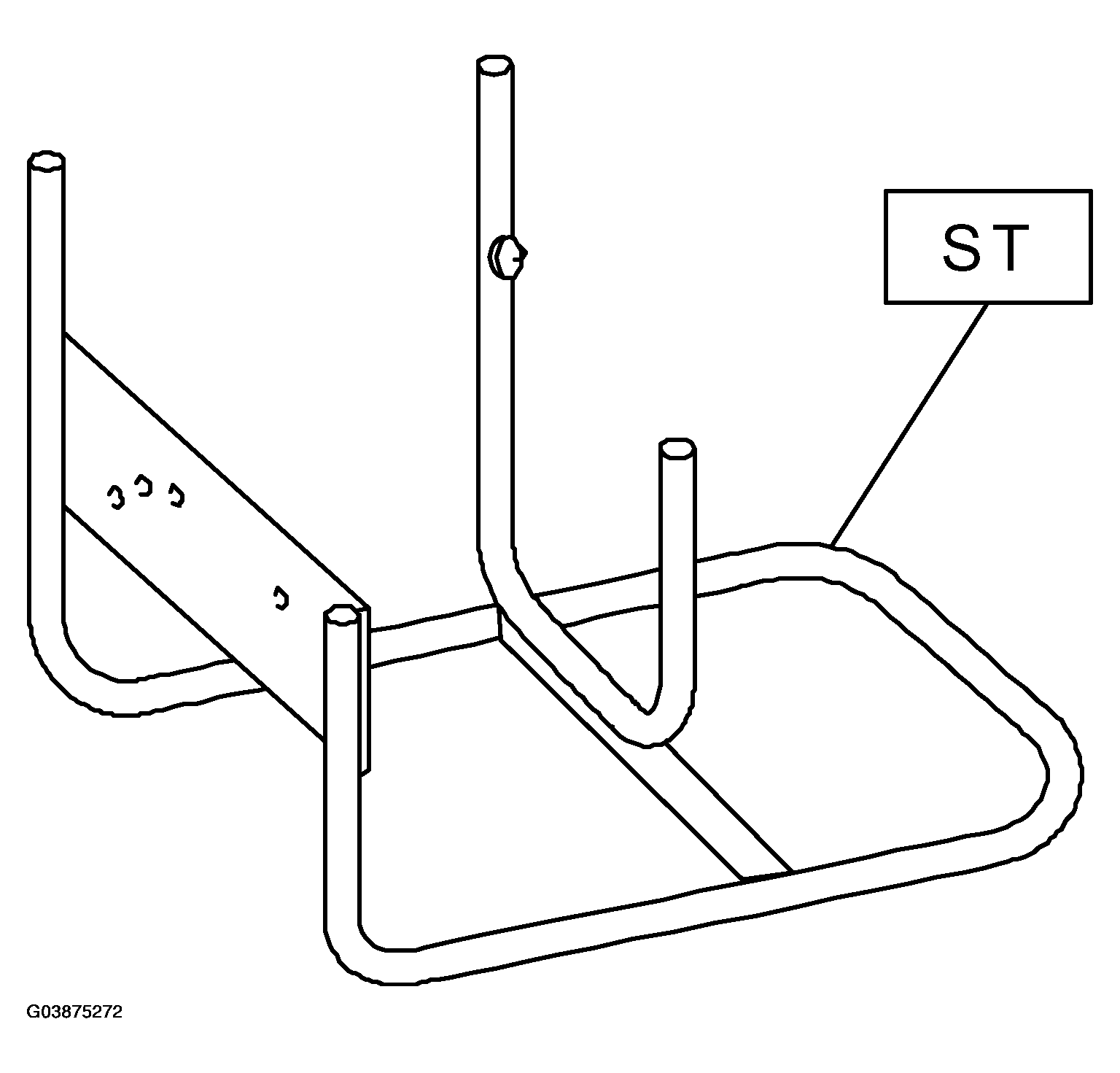

Fig 2: Identifying ST 32005162 Transmission Stand

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Rotating parts should be coated with oil prior to assembly.

All disassembled parts, if to be reused, should be reinstalled in the original positions and directions.

Gaskets, lock washers and lock nut must be replaced with new ones.
