Main Shaft Assembly: Adjustment/Replacement: Adjustment
Selection of main shaft rear plate:

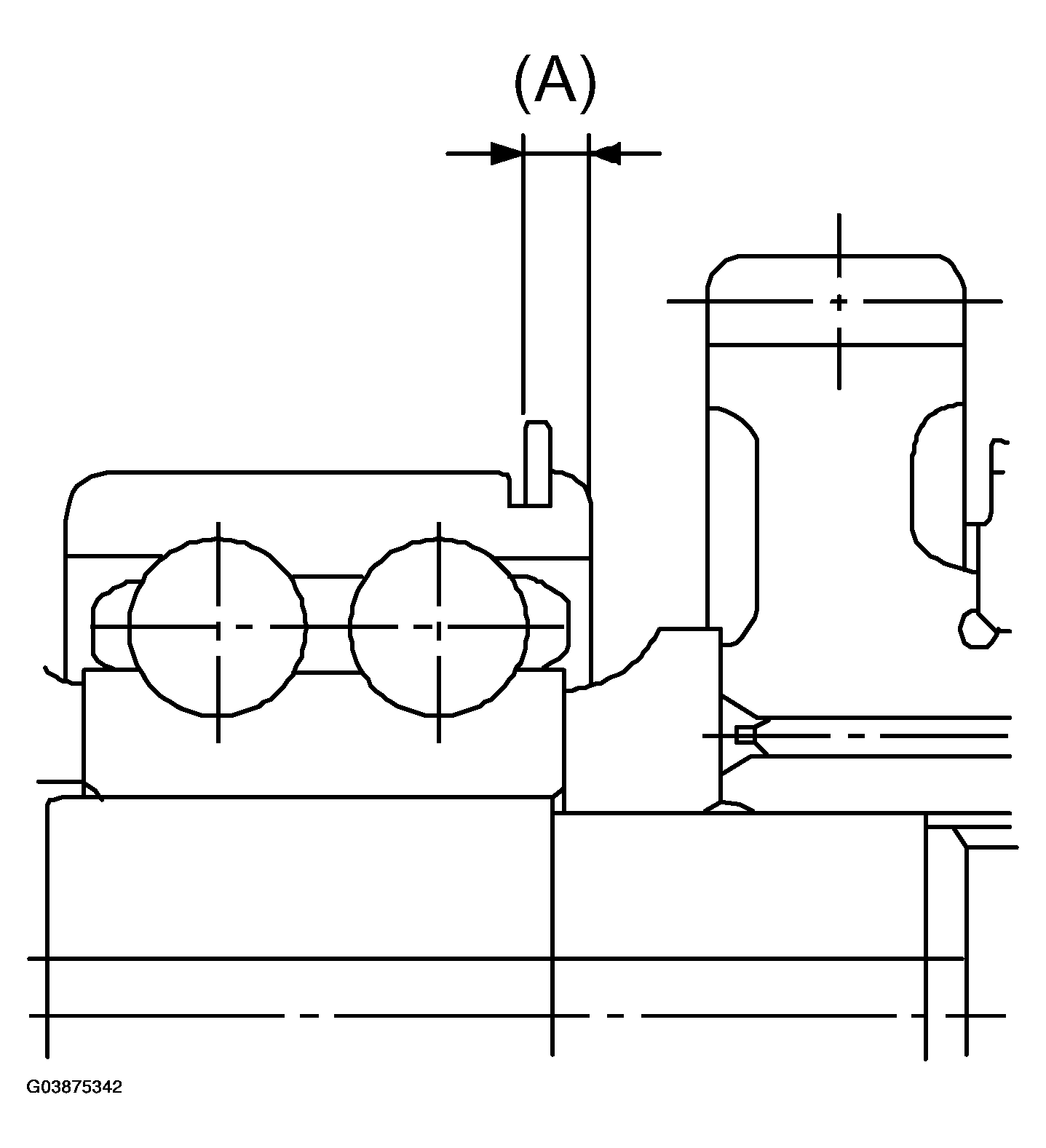

Using the ST, measure the amount (A) of ball bearing protrusion from transmission main case surface and select the proper plate in the following table.
NOTE:
Before measuring, tap the end of main shaft with a plastic hammer lightly in order to make the clearance zero between the main case surface and the moving flange of bearing.
ST 32005092 DEPTH GAUGE
DIMENSION CHART
| Dimension (A) mm (in) | Part No. | Mark |
|---|---|---|
| 4.00 - 4.13 (0.1575 - 0.1626) |
32006725 | 1 |
| 3.87 - 3.99 (0.1524 - 0.1571) |
32006726 | 2 |
