Transmission Mounting

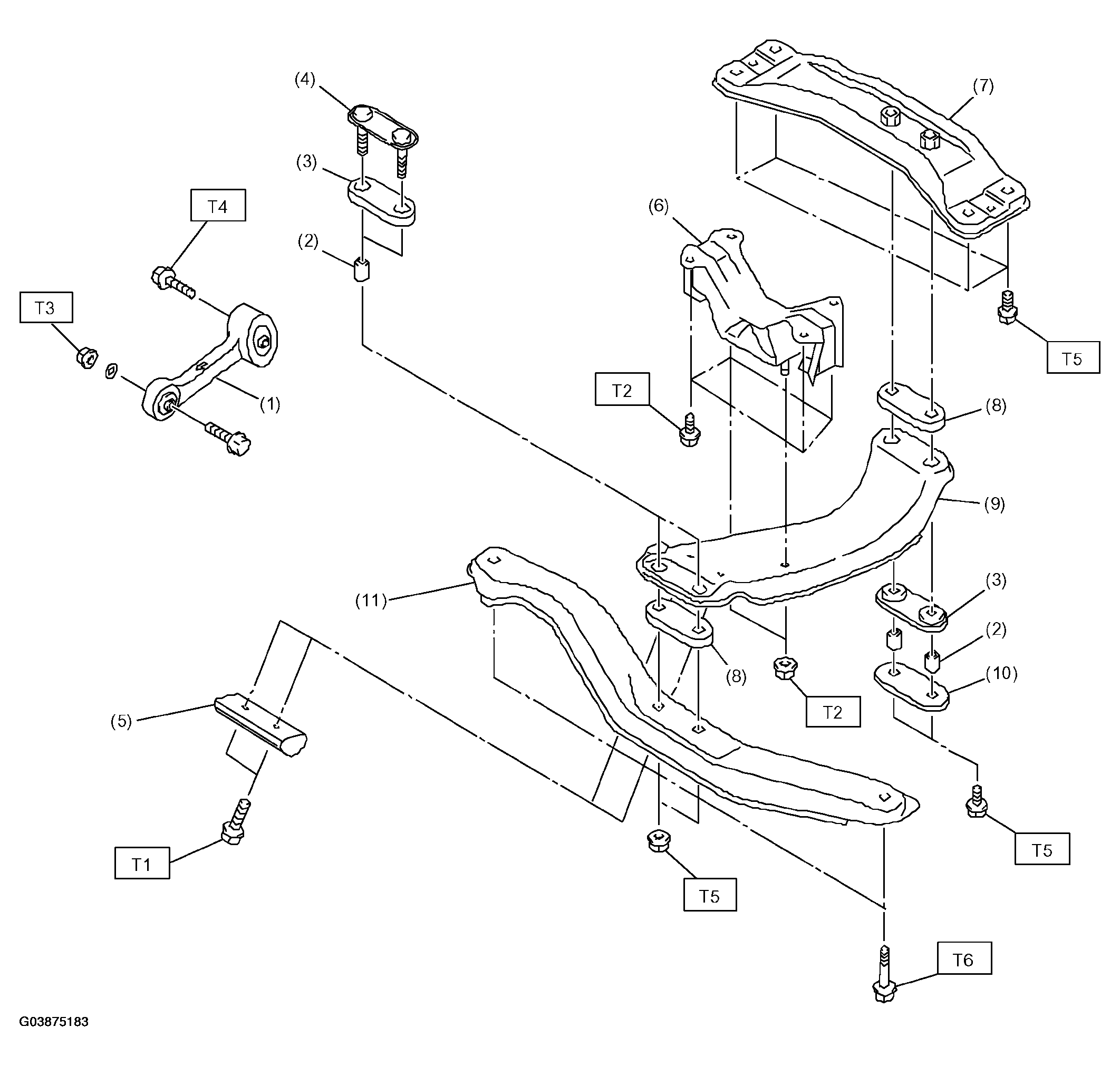

Fig 1: Exploded View Of Transmission Mounting

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Pitching stopper
2. Spacer
3. Cushion C
4. Front plate
5. Dynamic damper
6. Rear cushion rubber
7. Rear crossmember
8. Cushion D
9. Center crossmember
10. Rear plate
11. Front crossmember

Tightening torque: Nm (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 35 (3.6, 26)

T3: 50 (5.1, 37)

T4: 58 (5.9, 43)

T5: 70 (7.1, 51)

T6: 140 (14.3, 103)
