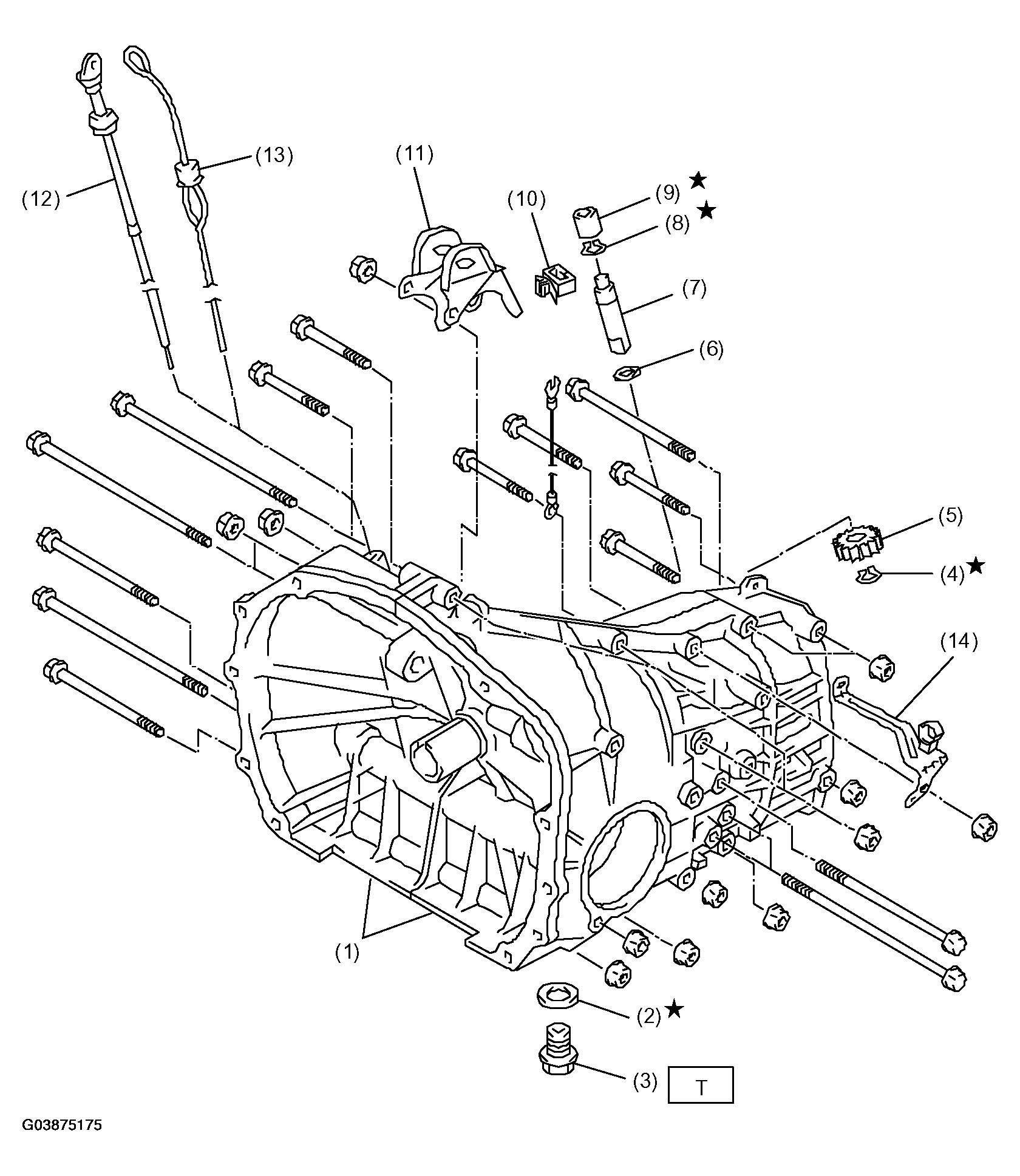

Transmission Case
- Transmission case ASSY
- Gasket
- Drain plug
- Snap ring (Outer)
- Speedometer driven gear
- Washer
- Speedometer shaft
- Snap ring (Outer)
- Oil seal
- Clamp
- Pitching stopper bracket
- Oil level gauge (Saab 9-2X 2.5i Linear)
- Oil level gauge (Saab 9-2X 2.0T Aero)
- Harness bracket (Saab 9-2X 2.5i Linear)
Tightening torque: Nm (kgf-m, ft-lb)
T: 69 (7.0, 50.6)

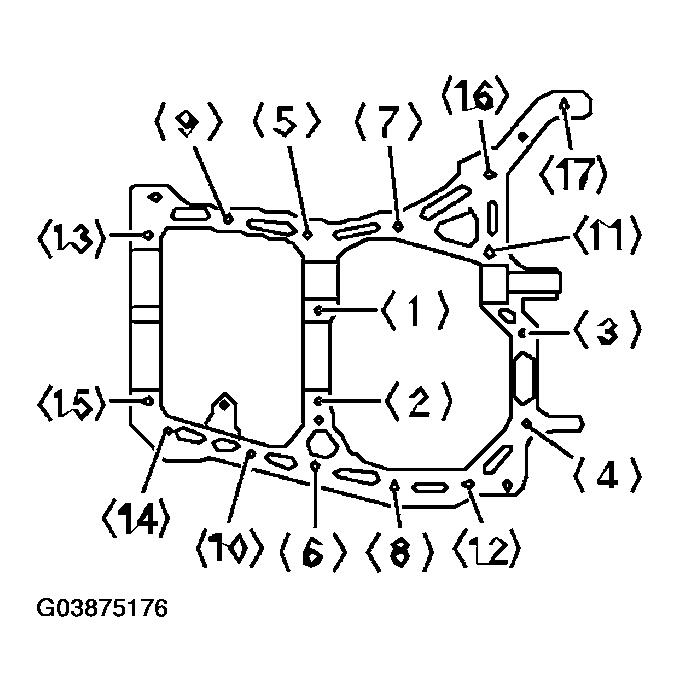

Transmission case tightening torque:
TRANSMISSION CASE TIGHTENING TORQUE SPECIFICATION
| Bolt No. | Bolt size mm | Tightening torque Nm (kgf-m, ft-lb) |
| (5) to (15) | 8 | 24.5 (2.5, 18.1) |
| (1) to (4) (16), (17) |
10 | 39 (4.0, 28.9) |
