Front Differential

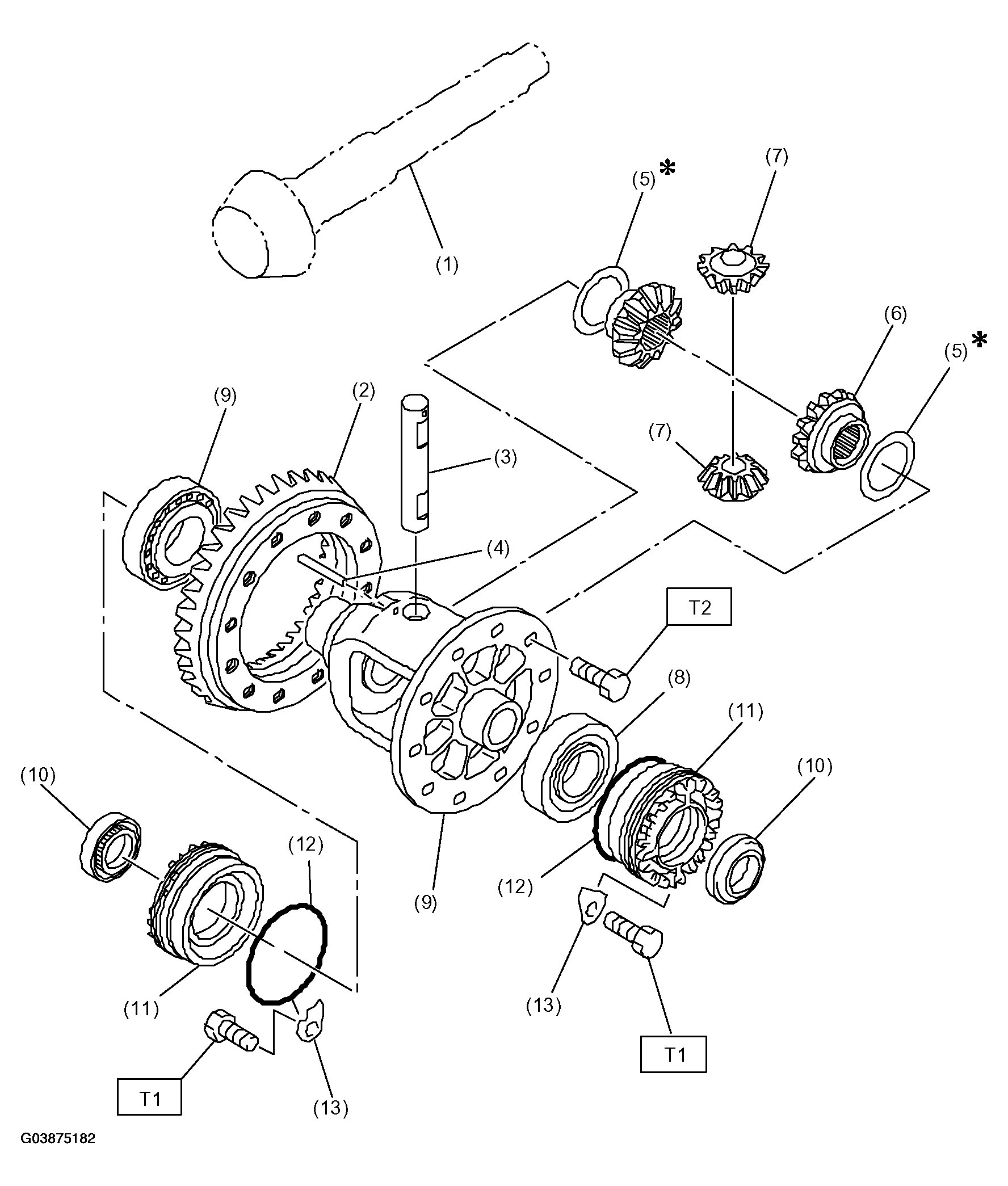

Fig 1: Exploded View Of Front Differential

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Drive pinion shaft
2. Hypoid driven gear
3. Pinion shaft
4. Straight pin
5. Washer
6. Differential bevel gear
7. Differential bevel pinion
8. Roller bearing
9. Differential case
10. Oil seal
11. Differential side retainer
12. O-ring
13. Retainer lock plate

Tightening torque: Nm (kgf-m, ft-lb)

T1: 25 (2.5, 18.1)

T2: 62 (6.3, 45.6)
